Tucunduva, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations typical of its Southern Sub-Tropical climate zone.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.39 kWh per day per installed kW, making it the peak production season. Spring follows as the second-best period with 5.93 kWh daily output per kW. Autumn sees a notable decline to 5.02 kWh per day per kW, while winter represents the lowest production period at just 3.72 kWh daily per kW. This seasonal pattern means solar installations will generate nearly twice as much electricity during summer compared to winter months. The ideal times for solar generation at Tucunduva are clearly summer and spring, when the location receives optimal solar irradiance.

Optimal Panel Configuration

For fixed solar panel installations at Tucunduva, Rio Grande do Sul, the ideal tilt angle is 24 degrees facing North to maximize total year-round energy production. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy output.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this Southern Sub-Tropical location:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce solar panel efficiency and promote corrosion of electrical components
• Heavy rainfall and storms: Intense precipitation common in subtropical regions can temporarily reduce solar output and potentially damage equipment
• Dust and organic debris: The combination of agricultural activity and natural vegetation can lead to dust accumulation and organic matter settling on panels
• Temperature fluctuations: Significant seasonal temperature variations can stress solar equipment and reduce efficiency during extreme heat

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand high humidity
• Improved drainage design: Install panels with adequate spacing and proper drainage channels to prevent water accumulation
• Regular maintenance schedule: Implement routine cleaning protocols to remove dust, debris, and organic matter from panel surfaces
• Enhanced ventilation: Design mounting systems with sufficient airflow underneath panels to reduce heat buildup and improve efficiency
• Quality inverters with temperature protection: Install inverters in shaded, well-ventilated locations with appropriate temperature management systems

Despite these environmental considerations, Tucunduva's solar potential remains viable for energy generation, particularly during the favorable summer and spring seasons when production peaks significantly above winter levels.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

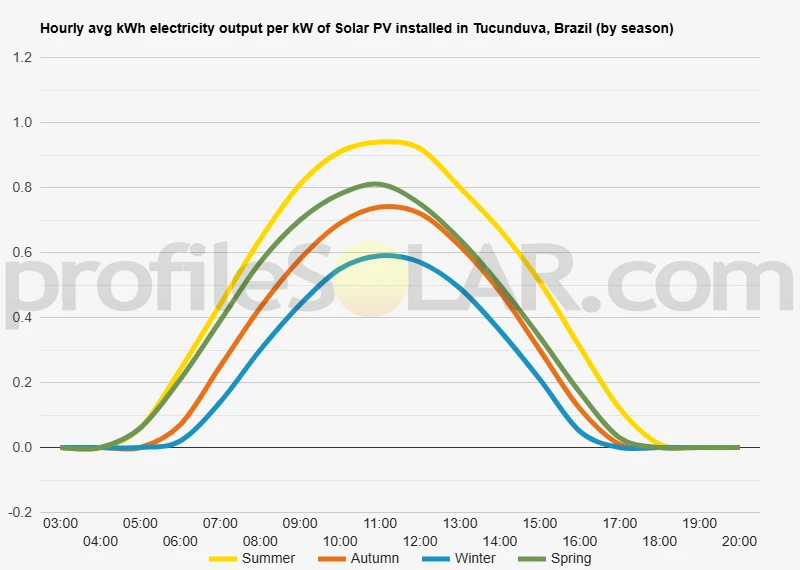

Solar output per kW of installed solar PV by season in Tucunduva

Seasonal solar PV output for Latitude: -27.6469, Longitude: -54.4372 (Tucunduva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Tucunduva, Brazil

To maximize your solar PV system's energy output in Tucunduva, Brazil (Lat/Long -27.6469, -54.4372) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tucunduva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tucunduva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tucunduva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tucunduva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tucunduva, Brazil

Topographical Features Around Tucunduva

Tucunduva is situated in the northwestern region of Rio Grande do Sul, Brazil's southernmost state. The landscape surrounding this municipality is characterized by gently rolling hills and undulating terrain typical of the southern Brazilian plateau region. The area sits at a moderate elevation within the broader context of the Rio Grande do Sul highlands, where the topography gradually transitions from the more mountainous regions to the east toward the flatter plains that extend westward toward Argentina.

The terrain around Tucunduva features a mix of agricultural lands, with fields and pastures dominating much of the landscape. The rolling hills create a series of ridges and valleys, though the elevation changes are generally moderate rather than dramatic. This undulating topography is interspersed with small streams and waterways that flow through the valleys, creating a network of drainage channels that eventually feed into larger river systems in the region.

The soil composition in this area is predominantly fertile, supporting extensive agricultural activities including soybean cultivation, corn production, and cattle ranching. The natural vegetation that remains consists primarily of mixed grasslands and patches of Atlantic Forest remnants, though much of the original forest cover has been cleared for agricultural purposes over the decades.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Tucunduva would be the elevated ridges and hilltops that provide unobstructed access to sunlight throughout the day. These higher elevation areas typically offer better exposure to solar radiation and are less likely to experience shading from surrounding topographical features or vegetation.

The gently sloping hillsides with southern exposure would be particularly advantageous for solar panel placement, as they can be oriented to maximize solar collection while taking advantage of the natural terrain. Areas with gradual slopes between 5 and 15 degrees are ideal, as they provide good solar exposure while minimizing the complexity and cost of installation.

Large flat or nearly flat areas, while less common in this rolling landscape, would also present excellent opportunities for solar development. These locations offer the advantage of simplified installation procedures and maintenance access, though they may require more careful consideration of drainage to prevent water accumulation around solar equipment.

Agricultural lands that are currently underutilized or marginal for farming could be prime candidates for solar development, particularly those areas where the soil quality or topography makes traditional farming less productive. The transition from agricultural use to solar energy production could provide landowners with alternative revenue streams while contributing to renewable energy generation.

Areas to avoid for solar installations would include the narrow valleys and low-lying regions where morning fog might persist longer, potentially reducing solar collection efficiency. Additionally, locations near existing forest patches or areas with significant tree cover would require careful planning to avoid shading issues that could impact solar panel performance.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
