Tupaciguara, Minas Gerais, Brazil presents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -18.5887, -48.7071, this area benefits from consistent sunlight throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Tupaciguara demonstrates strong year-round performance. Summer delivers the highest production at 6.71 kWh per day per kW of installed solar capacity, while winter shows the lowest output at 5.60 kWh per day per kW. Spring and autumn fall between these values at 6.29 kWh and 5.98 kWh per day per kW respectively. This relatively modest seasonal variation of approximately 20% between peak and minimum production makes Tupaciguara highly suitable for solar installations. The consistently strong performance across all seasons means solar panels will generate substantial electricity year-round, with summer being the optimal period for maximum energy harvest. For fixed panel installations at this location, the ideal tilt angle is 18 degrees facing North to maximize total annual solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Tupaciguara and require careful consideration during installation planning. The tropical wet season brings heavy rainfall and increased humidity, which can reduce solar panel efficiency through cloud cover and atmospheric moisture. During these periods, dust and debris may accumulate on panel surfaces more readily due to the combination of rain and dry periods. High temperatures, common in tropical regions, can decrease solar panel efficiency as photovoltaic cells typically perform better in cooler conditions. The intense tropical sun, while beneficial for energy production, can also accelerate wear on equipment components.

Preventative Measures and Installation Strategies

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate ventilation spacing underneath to promote air circulation and cooling
• Use high-temperature rated equipment and components designed for tropical climates
• Implement regular cleaning schedules, particularly during and after the wet season
• Choose panels with anti-reflective and self-cleaning coatings to minimize dust accumulation
• Ensure robust mounting systems capable of withstanding heavy rainfall and potential wind loads

Proper drainage around installation areas will prevent water pooling that could lead to equipment damage or create safety hazards. Additionally, selecting inverters and electrical components with appropriate IP ratings for humid conditions will ensure system longevity and consistent performance throughout Tupaciguara's varied seasonal conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

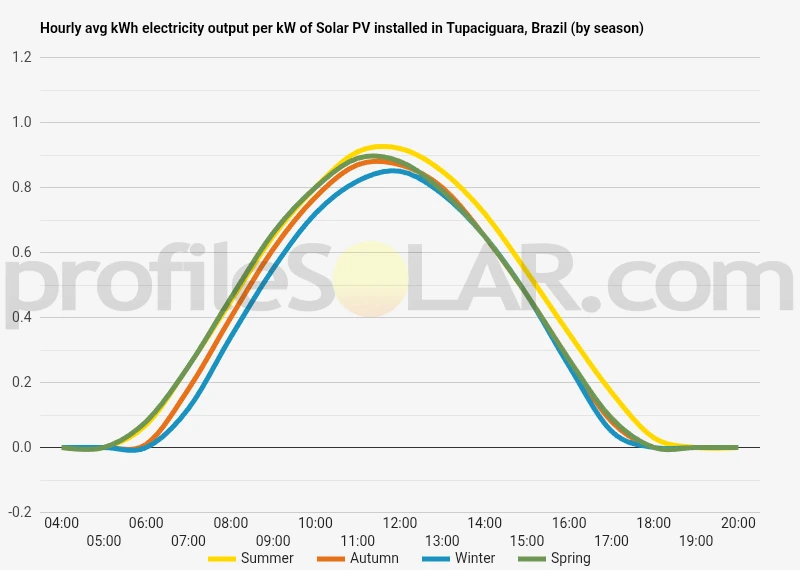

Solar output per kW of installed solar PV by season in Tupaciguara

Seasonal solar PV output for Latitude: -18.5887, Longitude: -48.7071 (Tupaciguara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Tupaciguara, Brazil

To maximize your solar PV system's energy output in Tupaciguara, Brazil (Lat/Long -18.5887, -48.7071) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tupaciguara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tupaciguara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tupaciguara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tupaciguara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tupaciguara, Brazil

Topographical Features of Tupaciguara Region

Tupaciguara sits in the heart of Brazil's Minas Gerais state, positioned within the expansive Brazilian Highlands plateau system. The local topography is characterized by gently rolling hills and elevated plains that typically range between 500 to 800 meters above sea level. This region forms part of the broader Cerrado biome, where the landscape consists of relatively flat to moderately undulating terrain punctuated by occasional mesa-like formations and shallow valleys carved by seasonal waterways. The immediate area around Tupaciguara features predominantly gentle slopes with gradients rarely exceeding 10-15 degrees. The terrain is composed mainly of weathered crystalline rocks overlaid with lateritic soils typical of tropical highland regions. Small streams and tributaries create subtle drainage patterns across the landscape, though these waterways are generally shallow and do not create significant topographical barriers or steep-sided valleys. Agricultural activities have shaped much of the visible landscape, with extensive areas of the natural Cerrado vegetation converted to cropland and pasture. The original savanna-like ecosystem featured scattered trees and shrubs across grasslands, creating an open canopy structure that allowed substantial ground-level solar exposure.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the broader plateau areas southwest and northeast of Tupaciguara's urban center. These zones offer several kilometers of relatively flat terrain with minimal topographical obstacles that could create shading issues or complicate construction activities. The gentle gradients in these areas provide natural drainage while maintaining optimal panel positioning opportunities. Areas with south-facing slopes of 5-10 degrees present particularly favorable conditions, as they can enhance solar collection efficiency while facilitating water runoff during the region's distinct wet season. The elevated nature of the local topography also provides natural ventilation benefits that help prevent panel overheating during peak temperature periods. The terrain immediately east of the municipality offers extensive flat areas that were previously utilized for large-scale agriculture, indicating soil stability and accessibility for heavy construction equipment. These locations benefit from existing road infrastructure while maintaining distance from residential areas. The relatively uniform elevation across these zones minimizes the need for extensive grading or earthwork during installation. Western approaches to Tupaciguara present slightly more varied topography but include several mesa-top locations that provide excellent exposure conditions. These elevated flat areas offer natural advantages for solar installations, though access roads may require more substantial development compared to the eastern agricultural zones. The region's overall geological stability, derived from its position on ancient crystalline basement rocks, provides secure foundations for large-scale solar infrastructure. The absence of significant seismic activity or unstable soil conditions throughout the broader area supports long-term installation viability across multiple potential development sites.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
