Tupandi, Rio Grande do Sul, Brazil is a reasonably good location for year-round solar energy generation, though it experiences significant seasonal variation typical of its Southern Subtropical climate zone.

Seasonal Solar Performance

The solar energy output at Tupandi varies considerably throughout the year. Summer delivers the strongest performance at 7.26 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 5.80 kWh per day per kW, while autumn drops to 4.62 kWh per day per kW. Winter presents the most challenging conditions with only 3.24 kWh per day per kW of production. This seasonal pattern means solar installations will generate more than twice as much energy during peak summer months compared to winter. The variation reflects the natural cycle of sun angles and weather patterns in the Southern Hemisphere.

Optimal Panel Configuration

For maximum year-round energy production at Tupandi, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for the solar irradiance potential at this specific latitude.

Environmental and Weather Factors

Several local factors at Tupandi could potentially impact solar energy production:

• Subtropical humidity and moisture: The Southern Subtropical climate brings high humidity levels that can reduce solar panel efficiency and create more frequent cloud cover
• Seasonal rainfall patterns: Increased precipitation during certain seasons may reduce solar irradiance and require more frequent panel cleaning
• Temperature effects: High summer temperatures, while providing strong sun exposure, can reduce panel efficiency as photovoltaic cells perform less effectively in extreme heat

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Proper ventilation spacing: Install panels with adequate air gap underneath to promote cooling and prevent overheating during hot summer periods
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for humid subtropical conditions to ensure long-term structural integrity
• Easy cleaning access: Design installations with safe cleaning access to remove accumulated dirt, pollen, and debris that subtropical weather can deposit on panels
• Drainage considerations: Ensure proper water drainage around ground-mounted systems to prevent flooding or water damage during heavy rainfall periods

Overall, while Tupandi faces some typical subtropical challenges, proper installation design and maintenance planning can help ensure reliable solar energy production throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

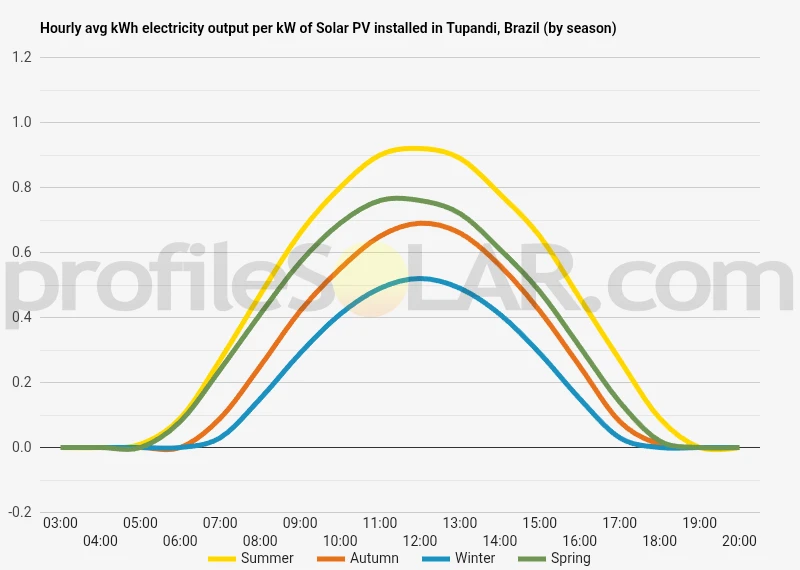

Solar output per kW of installed solar PV by season in Tupandi

Seasonal solar PV output for Latitude: -29.4788, Longitude: -51.4344 (Tupandi, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Tupandi, Brazil

To maximize your solar PV system's energy output in Tupandi, Brazil (Lat/Long -29.4788, -51.4344) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tupandi, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tupandi, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tupandi, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tupandi, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tupandi, Brazil

Topographical Features of Tupandi Region

Tupandi is situated in the Serra Gaúcha region of Rio Grande do Sul, Brazil's southernmost state. The area lies within the southern portion of the Brazilian Highlands, characterized by rolling hills and gentle slopes that form part of the broader Planalto Meridional plateau system. The terrain around Tupandi features moderate elevation changes, with the landscape gradually rising from east to west as it approaches the more mountainous regions of the Serra Geral.

The topography consists primarily of undulating terrain with elevations ranging from approximately 400 to 600 meters above sea level. This creates a series of rounded hills and shallow valleys that are typical of the region's geological formation. The area's relief is generally gentle, with slopes that rarely exceed 15-20 degrees, making it relatively accessible for development and infrastructure projects.

The region's drainage patterns are well-established, with numerous small streams and creeks flowing through the valleys between the hills. These waterways eventually contribute to larger river systems that drain toward the Atlantic Ocean. The soil composition includes fertile areas suitable for agriculture, particularly viticulture, which has become a defining characteristic of the broader Serra Gaúcha region.

Optimal Areas for Large-Scale Solar Development

The gently rolling topography around Tupandi presents several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the south-facing slopes and relatively flat hilltops that receive consistent solar exposure throughout the day. These elevated positions benefit from reduced shading and improved air circulation, which helps maintain optimal operating temperatures for solar panels.

Areas with slopes between 5-15 degrees facing south or southwest would be particularly well-suited for solar development, as they can be designed to maximize solar collection while maintaining reasonable construction and maintenance costs. The moderate elevation changes mean that large arrays could be installed without requiring extensive grading or terrain modification.

The flatter valley floors, while potentially suitable for solar installations, may be less optimal due to occasional fog formation and potential drainage considerations during heavy rainfall periods. However, these areas could still be viable for solar development with proper site preparation and drainage systems.

The region's established road network and proximity to existing electrical infrastructure make several locations around Tupandi accessible for large-scale solar projects. Areas within reasonable distance of transmission lines and substations would be most economically attractive for utility-scale developments. The relatively stable geology of the Brazilian Highlands also provides good foundation conditions for solar mounting systems.

Agricultural areas with lower productivity soils could potentially be converted to solar use, particularly on slopes that are less suitable for mechanized farming. This dual-use consideration allows for solar development while preserving the most valuable agricultural lands in the flatter, more fertile areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
