Valença, Brazil represents an excellent location for year-round solar energy generation, with its tropical positioning delivering consistently strong solar output throughout most of the year.

Solar Energy Performance

The solar energy production data for Valença shows impressive and relatively stable performance across all seasons. Spring delivers the highest output at 5.92 kWh per day per kW of installed solar capacity, closely followed by autumn at 5.90 kWh per day. Summer produces 5.76 kWh per day, while winter shows the lowest but still substantial output of 4.73 kWh per day. This seasonal pattern reflects the tropical climate characteristics, where the dry season (typically spring and early summer) provides optimal conditions with clear skies and minimal cloud cover. The wet season corresponds roughly with the winter months, explaining the reduced but still viable solar production during this period. For maximum energy harvesting at this location, solar panels should be installed at a fixed tilt angle of 13 degrees facing north. This optimal angle has been calculated to maximize total year-round solar production based on the sun's path and seasonal variations in solar elevation.

Environmental and Weather Challenges

Several environmental factors in Valença could potentially impact solar energy production:

• Seasonal rainfall and humidity: The tropical wet season brings heavy rains and increased humidity, which can reduce solar irradiance and create more frequent cloud cover
• Dust and debris accumulation: The combination of dry periods followed by wet seasons can lead to dust buildup on panels, particularly during drier months
• Tropical storms: The region may experience intense weather events that could damage installations or create temporary power disruptions
• High humidity and salt air: Being in a coastal tropical environment, salt-laden air and consistent humidity can accelerate corrosion of metal components

Preventative Installation Measures

To optimize solar energy production and system longevity in Valença's tropical environment, several preventative measures should be implemented during installation. Regular cleaning systems or easy access for manual cleaning will help maintain panel efficiency, particularly important given the dust accumulation during dry periods and potential debris from wet season storms. Choosing marine-grade or tropical-rated components with enhanced corrosion resistance will help combat the effects of humidity and salt air. This includes using stainless steel mounting hardware and ensuring all electrical connections are properly sealed against moisture ingress. Proper drainage design around the installation area will prevent water pooling during heavy rains, while adequate ventilation spacing behind panels will help reduce the effects of high humidity and allow for better cooling, which improves panel efficiency. Installing robust mounting systems designed to withstand tropical storm conditions will ensure system durability, while incorporating surge protection devices will help protect against electrical damage from lightning strikes, which can be more frequent in tropical climates.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

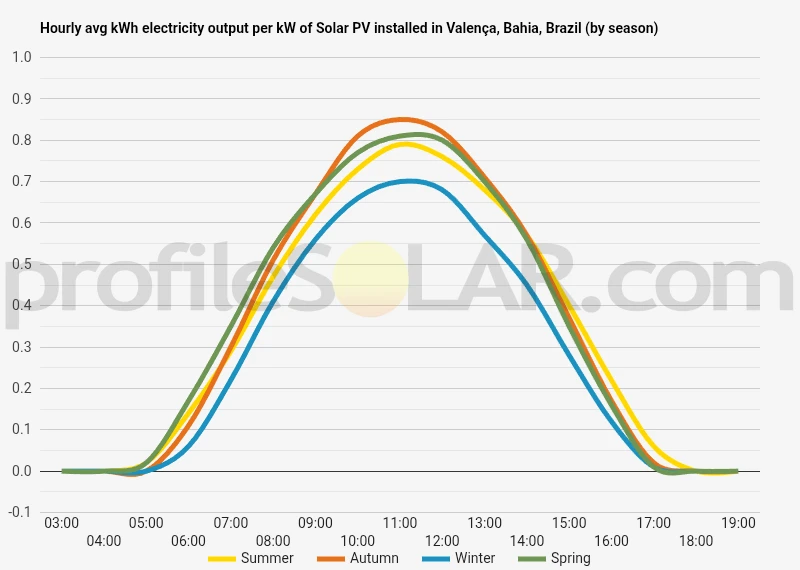

Solar output per kW of installed solar PV by season in Valença, Bahia

Seasonal solar PV output for Latitude: -13.3706, Longitude: -39.2365 (Valença, Bahia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Valença, Bahia, Brazil

To maximize your solar PV system's energy output in Valença, Bahia, Brazil (Lat/Long -13.3706, -39.2365) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Valença, Bahia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Valença, Bahia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Valença, Bahia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Valença, Bahia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Valença, Bahia, Brazil

Topographical Features of Valença Region

Valença sits in the coastal lowlands of Bahia state, positioned approximately 100 kilometers south of Salvador along Brazil's Atlantic coastline. The terrain around this historic colonial town is characterized by gently rolling hills and coastal plains that extend inland from the Atlantic Ocean. The elevation in the immediate vicinity ranges from sea level along the coast to modest heights of around 200 meters above sea level as the landscape gradually rises toward the interior.

The topography is dominated by the Recôncavo Baiano, a large sedimentary basin that forms a natural amphitheater around the Bay of All Saints. This geological formation creates a landscape of gentle undulations rather than steep terrain, with numerous small valleys carved by seasonal streams and rivers that flow toward the coast. The Jequiriçá River valley runs through the region, creating fertile floodplains surrounded by low hills covered in Atlantic Forest remnants and agricultural lands.

Moving inland from Valença, the terrain becomes more varied with a series of low ridges and plateaus that form part of the Brazilian Highlands' eastern edge. These elevated areas, while still relatively modest in height, offer commanding views over the coastal plain and provide natural drainage divides between river systems. The soil composition varies from sandy coastal deposits near the ocean to clay-rich sediments in the river valleys and weathered crystalline rocks on the higher ground.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the gently sloping plateaus and ridgetops that extend 15 to 30 kilometers inland from Valença. These elevated areas benefit from consistent exposure to solar radiation throughout the day while avoiding the coastal humidity and salt spray that can affect equipment performance near the ocean. The terrain in these zones typically features gradients of less than 5 degrees, making construction and maintenance operations straightforward while minimizing earthwork requirements.

Particularly suitable areas can be found along the watershed divides between the Jequiriçá River and smaller coastal drainage systems. These locations offer the advantage of being removed from flood-prone valley floors while maintaining relatively flat topography ideal for solar panel arrays. The higher elevation also provides natural drainage, reducing concerns about water accumulation during the rainy season.

The agricultural lands on the broader hilltops and gentle slopes present excellent opportunities for solar development, especially areas currently used for extensive cattle grazing or sugarcane cultivation. These zones typically have existing road access and electrical infrastructure, reducing development costs significantly. The open landscape with minimal tree cover eliminates shading concerns and provides unobstructed solar access throughout the day.

Areas to avoid for large-scale solar installations include the immediate coastal strip, where salt corrosion and high humidity pose equipment challenges, and the narrow river valleys where flooding risks and limited space constrain development options. The steeper slopes found in the transition zone toward the interior highlands would require extensive grading and present ongoing erosion management challenges that make them less economically viable for solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
