Solar Energy Potential in Ubajara, Ceará, Brazil

Ubajara, Ceará, Brazil, located at latitude -3.8362 and longitude -40.935, offers excellent year-round potential for solar PV energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods than temperature variations. The solar energy output in Ubajara shows interesting seasonal patterns. Spring stands out as the most productive season, generating 6.82 kWh per day for each kilowatt of installed solar capacity. Winter follows with 6.17 kWh/day, then autumn with 5.73 kWh/day, and summer producing 5.61 kWh/day per kW installed. For fixed solar panel installations in Ubajara, Ceará, the ideal tilt angle to maximize year-round energy production is 4 degrees facing North. This slight tilt optimizes the capture of solar radiation throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Seasonal Considerations

The data reveals that Ubajara's solar production peaks during spring and winter, with somewhat lower output during summer and autumn. This pattern likely corresponds to the region's wet and dry seasons, with the dry season offering clearer skies that enhance solar radiation reaching the panels. When planning a solar installation in Ubajara, Ceará, scheduling maintenance during the less productive seasons (summer and autumn) would be strategic, allowing the system to operate at full capacity during the high-yield spring and winter months.

Environmental Factors and Mitigation

Several environmental factors could potentially affect solar production in Ubajara:

• Seasonal rainfall: The tropical wet season can bring extended periods of cloud cover, reducing solar irradiance. Installing slightly more capacity than needed can help compensate for these lower-production periods.
• Dust accumulation: During dry seasons, dust can accumulate on panels, reducing efficiency. Implementing regular cleaning schedules and potentially automated cleaning systems can maintain optimal performance.
• High humidity: The tropical climate means high humidity levels that can accelerate degradation of electrical components. Using humidity-resistant equipment and proper sealing of electrical connections is essential.
• Potential for tropical storms: Though not in a major hurricane zone, tropical storms can occur. Ensuring robust mounting systems that can withstand high winds is important for system longevity.

Despite these considerations, Ubajara's consistent solar radiation throughout the year makes it an excellent location for solar PV installations. With proper system design and maintenance protocols, solar energy systems in this location can provide reliable renewable energy with relatively predictable seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

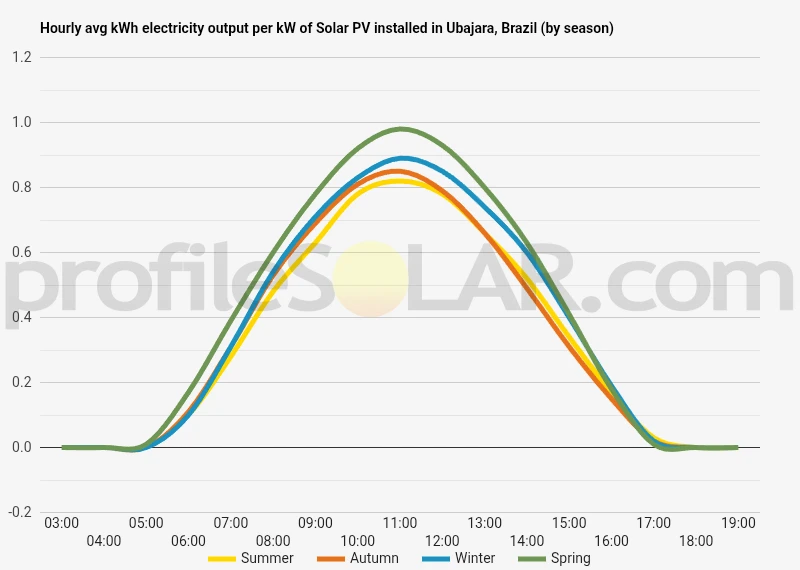

Solar output per kW of installed solar PV by season in Ubajara

Seasonal solar PV output for Latitude: -3.8362, Longitude: -40.935 (Ubajara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Ubajara, Brazil

To maximize your solar PV system's energy output in Ubajara, Brazil (Lat/Long -3.8362, -40.935) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ubajara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ubajara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ubajara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ubajara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ubajara, Brazil

The topography around Ubajara, Brazil, is characterized by dramatic elevations and varied landscapes that make it one of the most distinctive regions in the northeastern part of the country. Ubajara is situated in the state of Ceará, nestled within the impressive Ibiapaba Plateau (Planalto da Ibiapaba), which forms a natural border between the states of Ceará and Piauí. This plateau rises abruptly from the surrounding lowlands, creating a striking escarpment that can reach heights of 700-900 meters above sea level.

The Ibiapaba Plateau

The Ibiapaba Plateau, where Ubajara is located, features a steep eastern escarpment that runs roughly north-south for about 200 kilometers. This impressive geological formation is locally known as the "Cuesta da Ibiapaba" and represents one of Brazil's most significant topographical features in the northeast region. The plateau itself is relatively flat on top, with a gentle slope toward the west. Ubajara lies near the edge of this escarpment, providing spectacular panoramic views of the lower plains to the east. The area is famous for the Ubajara National Park, which protects a portion of this unique landscape, including caves, waterfalls, and remnants of Atlantic Forest vegetation that thrive in this higher-elevation microclimate.

Valleys and Lowlands

Below the plateau, extending eastward, are semi-arid lowlands typical of Brazil's Caatinga biome. These areas have more modest elevations, generally between 100-300 meters above sea level, and feature a rolling to flat topography. The transition from the plateau to these lowlands is often marked by talus slopes and deeply cut valleys formed by erosion. Several rivers originate in the plateau and flow eastward, creating valleys that dissect the landscape. These watercourses are typically seasonal, reflecting the region's pronounced wet and dry seasons.

Solar PV Potential Areas

For large-scale solar photovoltaic development, several areas near Ubajara offer favorable conditions based on topographical considerations: The eastern lowlands, extending from the base of the Ibiapaba Plateau, present the most suitable terrain for large-scale solar installations. These areas feature relatively flat to gently rolling terrain that minimizes the costs associated with land preparation and maximizes solar exposure. The municipalities of Tianguá, Viçosa do Ceará, and Granja contain extensive tracts of this type of terrain. The plateau top itself, while higher in elevation, also offers excellent potential for solar development. The flat to gently sloping terrain of the upper Ibiapaba Plateau provides large continuous areas where solar arrays could be efficiently deployed. However, developers would need to consider the increased cloud cover that sometimes affects higher elevations during certain seasons. Areas to avoid include the steep escarpment face, which presents obvious challenges for construction and maintenance of solar infrastructure, and the deeply incised river valleys, which may experience shading during portions of the day.

Topographical Considerations for Solar Development

The ideal areas for solar PV near Ubajara combine several topographical advantages. First, they feature minimal slope angles, generally less than 5 degrees, which reduces construction costs and optimizes panel orientation. Second, they avoid low-lying areas prone to seasonal flooding from the region's intermittent rainfall patterns. Third, they provide good drainage to prevent water accumulation that could damage infrastructure. The semi-arid nature of much of the surrounding landscape, particularly in the eastern lowlands, means vegetation is typically sparse and low-growing, reducing potential shading issues and site preparation costs. These areas also tend to have good access to existing transportation infrastructure, an important consideration for the construction and maintenance of large solar installations. While the higher plateau areas receive somewhat more rainfall and can experience more cloud cover than the lowlands, they still maintain excellent solar exposure throughout most of the year. The slightly cooler temperatures at higher elevations can also benefit photovoltaic efficiency compared to the hotter lowlands.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
