Planalto, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies significantly throughout the year. Summer delivers the strongest performance at 7.02 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.11 kWh per day per kW, while autumn drops to 5.30 kWh per day per kW. Winter represents the most challenging period, producing only 3.96 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations at Planalto will generate nearly 77% more electricity during peak summer months compared to the winter low point. The most productive period extends from late spring through summer, while the least productive time occurs during the winter months.

Optimal Panel Installation

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at Planalto:

• Seasonal rainfall patterns typical of subtropical climates may reduce solar output during wet periods, particularly affecting the already lower-producing winter months
• High humidity levels common in subtropical regions can lead to increased dust and moisture accumulation on solar panels
• Potential for severe weather events including hailstorms and strong winds during certain seasons
• Agricultural activities in the surrounding area may contribute to dust and particulate matter settling on panel surfaces

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and mounting systems that allow for proper drainage and air circulation to minimize moisture-related issues
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Use high-quality mounting systems designed to withstand strong winds and potential hail damage
• Consider anti-soiling coatings on panels to reduce dust adhesion and make cleaning more effective
• Install monitoring systems to quickly identify performance drops that may indicate cleaning or maintenance needs

Despite the seasonal variations and environmental considerations, Planalto offers reasonable solar potential, particularly during the warmer months. With proper installation techniques and maintenance practices, solar PV systems can perform effectively at this location throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

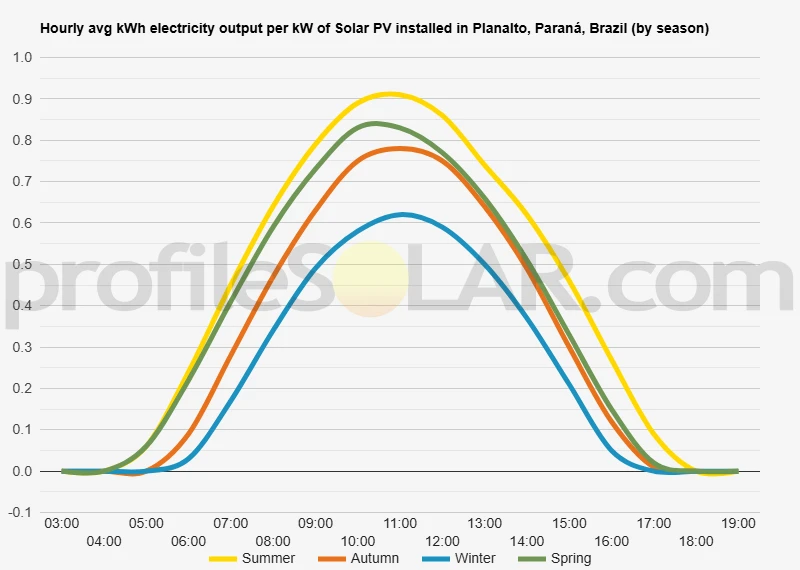

Solar output per kW of installed solar PV by season in Planalto, Paraná

Seasonal solar PV output for Latitude: -25.7308, Longitude: -53.7285 (Planalto, Paraná, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Planalto, Paraná, Brazil

To maximize your solar PV system's energy output in Planalto, Paraná, Brazil (Lat/Long -25.7308, -53.7285) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Planalto, Paraná, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Planalto, Paraná, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Planalto, Paraná, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Planalto, Paraná, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Planalto, Paraná, Brazil

Topographical Features of the Planalto Region

The area around Planalto in Brazil sits within the broader Paraná Plateau region, characterized by gently rolling terrain and relatively modest elevation changes. This location falls within the western portion of Paraná state, where the landscape consists primarily of undulating plains interspersed with shallow valleys and low ridges. The topography here represents a transitional zone between the more dramatic escarpments found closer to the Atlantic coast and the flatter expanses that extend westward toward Paraguay and Argentina.

The elevation in this region typically ranges from approximately 400 to 600 meters above sea level, with gradual slopes that rarely exceed 10 degrees. The terrain has been shaped by millions of years of erosion acting upon the underlying basaltic rock formations, creating a landscape of broad, sweeping contours rather than sharp ridges or deep canyons. Small streams and tributaries have carved gentle valleys throughout the area, contributing to the region's characteristic rolling appearance.

The soils in this region are predominantly derived from weathered basalt, creating fertile agricultural lands that have been extensively developed for farming. This geological foundation provides stable ground conditions with good drainage characteristics, while the relatively uniform elevation changes create predictable water flow patterns during rainfall events.

Optimal Areas for Large-Scale Solar Development

The gently sloping terrain throughout the Planalto region presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable locations would be the broader hilltops and gentle south-facing slopes, which offer consistent exposure to sunlight throughout the day while providing natural drainage away from the solar arrays during precipitation events.

Areas with slopes between 2 and 8 degrees would be particularly well-suited for solar development, as they provide optimal panel positioning while minimizing construction complexity and costs. The elevated plateaus scattered throughout the region offer especially attractive sites, as they tend to have fewer obstructions from vegetation or nearby topographical features that might create shading issues.

The western and southwestern portions of the area around Planalto appear most promising for solar development due to their combination of appropriate slope angles, stable soil conditions, and accessibility to existing infrastructure. These locations benefit from the region's characteristic broad, open landscapes that minimize the risk of shading from adjacent hills or ridges.

Agricultural areas that have been previously cleared and leveled would require minimal site preparation for solar installations, making them economically attractive for development. The existing road networks serving the farming communities would facilitate construction access and ongoing maintenance operations for solar facilities.

Areas to avoid for large-scale solar development would include the narrow valley bottoms where drainage issues might pose challenges, as well as the steeper slopes along stream corridors where erosion control would become more complex and costly. The relatively few forested areas remaining in the region would also be less suitable due to clearing requirements and potential environmental considerations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
