Vacaria, Rio Grande do Sul, Brazil is located in the Southern Sub Tropics and shows significant seasonal variation in solar energy production throughout the year, making it a moderately good location for solar PV installations with some important considerations.

Seasonal Solar Production Performance

The location experiences strong seasonal differences in solar output. Summer delivers the highest production at 6.88 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.80 kWh per day per kW, while autumn drops to 4.75 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.54 kWh per day per kW of installed capacity. This represents nearly half the output compared to summer months, which is typical for locations at this latitude in the Southern Hemisphere. For optimal year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 25 degrees facing North. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and seasonal variations in solar irradiance.

Local Environmental Factors Affecting Solar Production

Several environmental and weather factors in the Vacaria region can significantly impact solar energy production:

• Frequent cloud cover and precipitation: The region experiences substantial rainfall throughout the year, with cloudy conditions reducing solar irradiance
• High humidity levels: Moisture in the air can scatter sunlight and reduce panel efficiency
• Frost and temperature fluctuations: Winter conditions can affect panel performance and potentially damage equipment
• Wind exposure: The elevated plateau location experiences strong winds that can impact panel stability

Preventative Measures for Optimal Solar Installation

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Regular cleaning systems: Install automated cleaning mechanisms or schedule frequent manual cleaning to remove dust, pollen, and water spots that accumulate on panels
• Robust mounting systems: Use heavy-duty mounting hardware designed to withstand high winds and potential hail damage
• Proper drainage design: Ensure panel mounting allows for quick water runoff to prevent pooling and reduce cleaning frequency
• Quality inverters with temperature management: Choose inverters designed for variable temperature conditions and high humidity environments
• Strategic positioning: Avoid areas prone to frost accumulation and ensure panels have adequate ventilation for cooling

Despite the seasonal variations and environmental challenges, Vacaria can still provide reasonable solar energy production when proper installation techniques and maintenance practices are followed. The strong summer and spring performance helps offset the lower winter output, making it a viable location for solar PV systems with appropriate planning and equipment selection.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

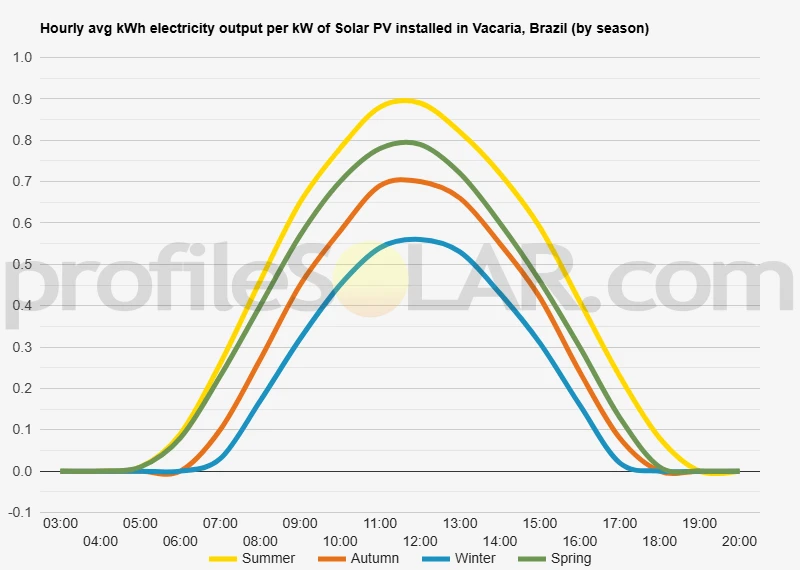

Solar output per kW of installed solar PV by season in Vacaria

Seasonal solar PV output for Latitude: -28.4122, Longitude: -50.9443 (Vacaria, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Vacaria, Brazil

To maximize your solar PV system's energy output in Vacaria, Brazil (Lat/Long -28.4122, -50.9443) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vacaria, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vacaria, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vacaria, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vacaria, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vacaria, Brazil

Topographical Features Around Vacaria

Vacaria sits in the heart of Rio Grande do Sul's highland region, positioned at an elevation of approximately 950 meters above sea level on the Brazilian Plateau. This city is located within the Serra Gaúcha region, characterized by rolling hills and elevated plains that form part of the southern Brazilian highlands. The landscape around Vacaria consists of gently undulating terrain with broad, open valleys interspersed with low ridges and plateaus.

The surrounding topography is dominated by campos, which are natural grasslands typical of this elevated region. These grasslands stretch across vast expanses of relatively flat to gently sloping terrain, broken occasionally by small streams and shallow valleys. The area experiences a temperate climate due to its elevation, with the highland setting providing excellent air circulation and minimal atmospheric interference.

To the east and northeast of Vacaria, the terrain gradually rises toward the Serra Geral escarpment, while westward areas tend to be more level with broader valley systems. The region's geology consists primarily of basaltic formations from ancient volcanic activity, creating stable foundation conditions across much of the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Vacaria would be the expansive grassland areas extending westward and southwestward from the city. These zones offer several kilometers of relatively flat terrain with minimal topographical obstacles, providing ideal conditions for large solar arrays. The gentle slopes in these areas, typically ranging from one to three degrees, allow for optimal panel positioning while facilitating natural drainage.

The broad plateau areas to the northwest of Vacaria present another excellent opportunity for solar development. This region features consistent elevation with minimal variation, reducing the need for extensive site preparation and grading work. The open grassland character of this terrain means fewer obstacles such as forests or steep terrain that would complicate installation or create shading issues.

Areas along the wider valley floors, particularly those running in east-west orientations, would also prove highly suitable for solar installations. These locations benefit from natural wind patterns that help keep solar panels clean and cool, while the valley orientation provides protection from harsh weather conditions that occasionally affect the higher ridges.

The elevated position of the entire Vacaria region provides advantages for solar installations, including reduced atmospheric density and cleaner air conditions compared to lower elevations. The stable geological foundation formed by the underlying basaltic rock provides excellent support for mounting systems and reduces concerns about ground settlement or instability over time.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
