Valinhos, São Paulo, Brazil presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -22.9745, -46.9762, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output data for Valinhos demonstrates strong year-round performance potential. Summer delivers the highest energy production at 6.62 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.08 kWh per day per kW, while autumn provides moderate output at 5.49 kWh per day per kW. Winter represents the lowest production period at 4.83 kWh per day per kW of installed capacity, though this figure still indicates reasonable solar generation capability even during the less optimal months. The variation between peak summer performance and winter production shows approximately a 37% difference, which is relatively moderate compared to higher latitude locations.

Optimal Installation Configuration

For fixed panel installations at this Valinhos location, the ideal angle to tilt solar panels to maximize total year-round production is 21 degrees North. This angle calculation accounts for the Earth's elliptical orbit and weights the optimal daily panel angles by daily photovoltaic potential using comprehensive solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency in Valinhos and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance and create challenges for optimal energy generation. Heavy cloud cover during these periods directly impacts the amount of sunlight reaching solar panels. Additionally, the high humidity levels common in tropical regions can lead to increased soiling of panel surfaces from dust, pollen, and organic matter that adheres more readily in moist conditions. Tropical storms and intense rainfall events pose risks to solar installations, potentially causing physical damage to panels and mounting systems. The region may also experience occasional hail, which can damage panel surfaces and reduce efficiency over time.

Preventative Measures for Enhanced Production

Several installation strategies can help mitigate these environmental challenges and maintain optimal energy production:

• Install panels with adequate drainage systems and proper mounting angles to prevent water accumulation
• Use high-quality, weather-resistant mounting hardware designed for tropical climates
• Implement regular cleaning schedules, particularly during and after wet seasons when soiling accumulation is highest
• Choose panels with anti-reflective coatings and self-cleaning properties where possible
• Ensure robust structural support systems capable of withstanding high winds and storm conditions

Regular maintenance becomes particularly important in this tropical environment. Establishing a monitoring system to track performance can help identify when cleaning or maintenance is needed to restore optimal output levels. Despite these considerations, Valinhos remains an excellent location for solar energy generation due to its consistent tropical sunlight and relatively stable year-round production capabilities. With proper installation techniques and maintenance practices, solar installations can achieve strong performance throughout all seasons.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

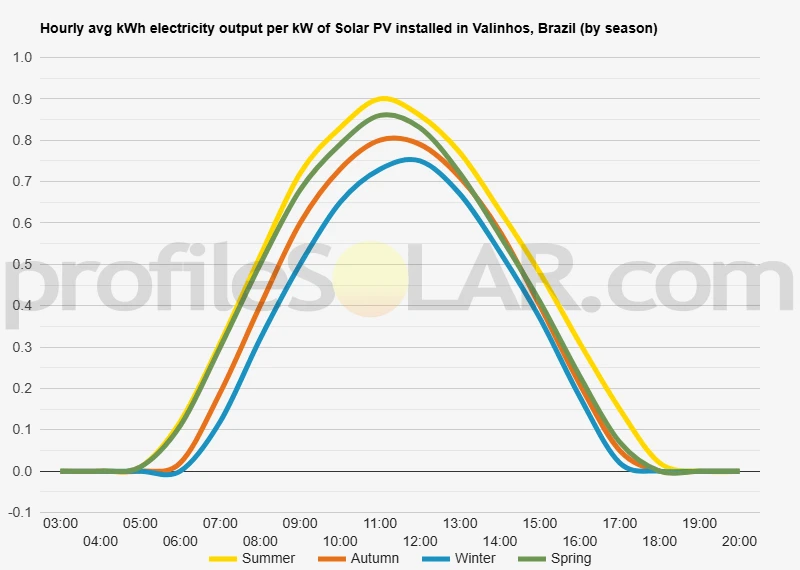

Solar output per kW of installed solar PV by season in Valinhos

Seasonal solar PV output for Latitude: -22.9745, Longitude: -46.9762 (Valinhos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Valinhos, Brazil

To maximize your solar PV system's energy output in Valinhos, Brazil (Lat/Long -22.9745, -46.9762) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Valinhos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Valinhos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Valinhos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Valinhos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Valinhos, Brazil

Topographical Features Around Valinhos

Valinhos sits in the interior of São Paulo state, positioned within the Brazilian Highlands plateau region. The terrain around this municipality is characterized by gently rolling hills and elevated plains that form part of the broader Planalto Paulista landscape. The area maintains an average elevation of approximately 660 meters above sea level, with the surrounding topography featuring moderate undulations rather than steep mountainous terrain.

The region's landscape consists primarily of weathered crystalline rock formations that have been shaped over millennia into rounded hills and broad valleys. These geological features create a relatively stable foundation with gradual slopes that rarely exceed 15-20 degrees in most areas. The terrain is interspersed with small streams and seasonal watercourses that have carved shallow valleys through the landscape, creating a pattern of gentle ridges and depressions across the region.

Local vegetation patterns reflect the area's position in the transition zone between Atlantic Forest remnants and Cerrado savanna ecosystems. Much of the original forest cover has been cleared for agricultural use and urban development, leaving a mosaic of pastureland, sugarcane fields, citrus groves, and scattered forest patches. The cleared agricultural areas typically occupy the flatter portions of the landscape, while steeper slopes and hilltops often retain more natural vegetation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Valinhos would be the broad, gently sloping plateaus that extend across much of the surrounding countryside. These elevated plains offer several advantages including relatively flat terrain that minimizes grading requirements and construction costs, while still providing adequate drainage to prevent water accumulation around solar equipment.

The areas immediately northeast and southwest of Valinhos present particularly favorable conditions, where the landscape opens into expansive agricultural zones with minimal topographical constraints. These regions feature large continuous tracts of land with slopes generally under 5 degrees, making them ideal for utility-scale solar farms that require substantial contiguous areas for optimal efficiency and maintenance access.

Former sugarcane plantations and cattle pastures scattered throughout the region represent excellent conversion opportunities for solar development. These areas typically have existing road access infrastructure and electrical grid connections, while their previous agricultural use demonstrates the land's suitability for large-scale development projects. The cleared nature of these lands also eliminates concerns about deforestation or habitat disruption that might complicate permitting processes.

The elevated position of potential solar sites in this region provides additional benefits including reduced risk of flooding during seasonal rains and improved air circulation that helps maintain optimal operating temperatures for photovoltaic panels. The stable geological conditions of the crystalline basement rocks also ensure solid foundations for mounting systems and minimal long-term settling concerns that could affect panel alignment and performance.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
