Vargem, São Paulo, Brazil represents a highly favorable location for year-round solar PV energy generation. Located in the tropical zone at coordinates -22.8959, -46.417, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized primarily by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output data for Vargem demonstrates strong year-round performance. Summer delivers the highest production at 6.62 kWh per day per kW of installed solar capacity, making it the peak generation season. Spring follows closely with 6.08 kWh per day per kW, indicating excellent conditions during this period as well. Autumn shows moderate production levels at 5.49 kWh per day per kW, while winter represents the lowest output period at 4.83 kWh per day per kW of installed capacity. Despite winter being the weakest season, the production levels remain quite respectable for solar generation. For optimal year-round energy harvest, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Vargem. The tropical climate brings distinct wet and dry seasons, with the wet season presenting the most significant challenge through increased cloud cover and frequent rainfall. Heavy cloud formations during rainy periods can substantially reduce direct sunlight reaching solar panels. High humidity levels, common in tropical regions, can lead to moisture-related issues including potential corrosion of electrical components and reduced panel efficiency over time. The combination of heat and humidity may also accelerate the degradation of certain solar panel materials. Dust and debris accumulation poses another concern, particularly during dry seasons when particles can settle on panel surfaces and create a barrier that reduces light absorption. In agricultural areas like Vargem, São Paulo, pollen and organic matter may contribute to this buildup.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce heat buildup
• Use high-quality weatherproof electrical components and junction boxes designed for humid tropical conditions
• Apply anti-corrosive treatments and coatings to mounting hardware and electrical connections
• Design the mounting system with appropriate drainage to prevent water accumulation
• Implement regular cleaning schedules, particularly during and after dry seasons

Selecting solar panels with anti-reflective coatings and self-cleaning properties can help maintain efficiency during periods of dust accumulation. Additionally, choosing inverters and electrical components with higher IP ratings ensures better protection against moisture ingress. Despite these potential challenges, Vargem's consistently strong solar output throughout the year makes it an excellent location for solar PV installations. With proper planning and installation techniques, the environmental factors can be effectively managed to ensure optimal long-term energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

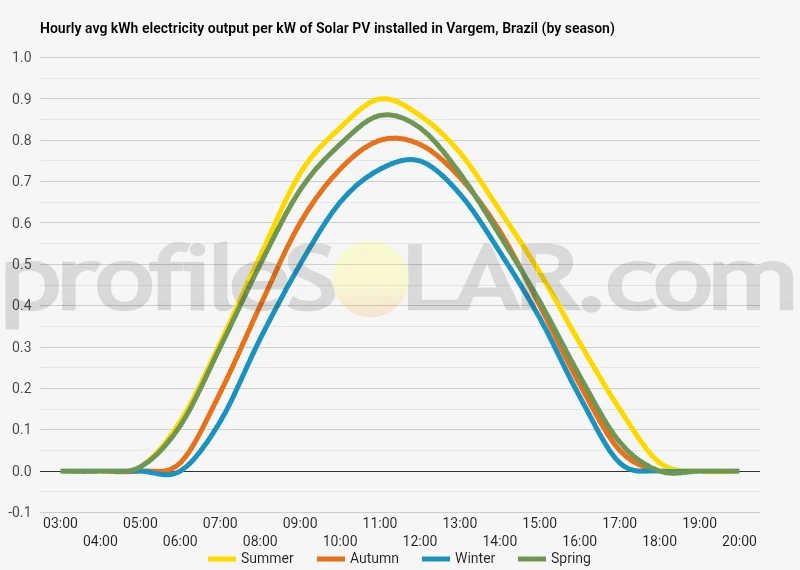

Solar output per kW of installed solar PV by season in Vargem

Seasonal solar PV output for Latitude: -22.8959, Longitude: -46.417 (Vargem, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Vargem, Brazil

To maximize your solar PV system's energy output in Vargem, Brazil (Lat/Long -22.8959, -46.417) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vargem, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vargem, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vargem, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vargem, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vargem, Brazil

Topography Around Vargem, Brazil

The region surrounding Vargem in São Paulo state features a predominantly hilly and undulating landscape characteristic of the Brazilian Highlands. This area sits within the Serra da Mantiqueira mountain system, where elevations typically range from 800 to 1,200 meters above sea level. The terrain consists of rolling hills interspersed with valleys, creating a varied topographical profile that includes both gentle slopes and steeper inclines. The landscape is marked by numerous small watersheds and drainage systems that flow toward larger river basins. Agricultural activities have shaped much of the terrain, with pastures and cultivated fields occupying the gentler slopes and valley floors. The natural vegetation transitions between Atlantic Forest remnants on steeper hillsides and grasslands in more open areas. Rocky outcrops and granite formations are common throughout the region, particularly on higher elevations and ridge lines. The soil composition varies considerably, with deeper, more fertile soils found in valley bottoms and thinner, rockier soils on steeper slopes and elevated areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the broader valley floors and gentle slopes with southern and southeastern exposures. These areas offer relatively flat terrain that minimizes construction costs and reduces the complexity of mounting systems while providing optimal sun exposure throughout the day. Open agricultural lands, particularly those currently used for pasture or less intensive farming, present excellent opportunities for solar development. These areas typically have fewer obstacles such as large trees or buildings and often feature existing access roads that could facilitate construction and maintenance activities. The elevated plateaus and mesa-like formations scattered throughout the region also offer promising sites, provided they have sufficient flat area and reasonable access. These locations benefit from reduced atmospheric interference due to their elevation and often experience fewer issues with fog or low-lying moisture that can affect solar panel efficiency. Areas with minimal vegetation cover and lower agricultural value would be preferred to minimize environmental impact and land use conflicts. The region's existing electrical infrastructure and proximity to transmission lines should also factor into site selection, as connection to the grid represents a significant cost consideration for any large-scale solar project.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
