Solar Energy Potential in Varginha, Minas Gerais, Brazil

Varginha, Minas Gerais, Brazil, situated at latitude -21.5653 and longitude -45.4126, offers promising conditions for solar energy generation throughout the year. Located in the tropical region, this location benefits from consistent sunlight patterns that make it suitable for photovoltaic (PV) solar installations. The energy output from solar panels in Varginha demonstrates seasonal variations while maintaining relatively strong production year-round. During summer months, solar installations can generate approximately 6.53 kWh per day for each kilowatt of installed capacity, representing the peak production period. Autumn sees a slight decrease to 5.70 kWh/day, while winter production drops to the annual minimum of 5.08 kWh/day. As spring arrives, generation increases to 5.97 kWh/day. For maximizing solar energy capture in Varginha, Minas Gerais, fixed solar panels should be installed at a 20-degree tilt facing North. This specific angle has been calculated to optimize year-round energy production based on the location's solar elevation patterns and weighted by the daily photovoltaic potential.

Seasonal Considerations

The summer months (December through February) represent the prime solar generation period in Varginha, Minas Gerais, with the highest daily energy output. This corresponds with the region's typical wet season, which brings increased humidity but also more intense solar radiation. Winter (June through August) shows the lowest production figures, though the reduction is relatively modest compared to many other global locations. This demonstrates the advantage of Varginha's tropical position, where even the "low" season maintains reasonable generation capacity. The transition seasons of autumn (March through May) and spring (September through November) offer intermediate production levels, with spring performing notably better than autumn. This makes spring the second most productive season for solar generation in this location.

Environmental Factors and Mitigation

Several environmental factors could potentially impact solar production in Varginha:

• Dust and pollen accumulation: The region's agricultural activities and seasonal flowering can lead to panel soiling. Installing automated cleaning systems or implementing regular maintenance schedules can mitigate this issue.
• Seasonal heavy rainfall: During the wet season, frequent cloud cover and intense precipitation events may temporarily reduce generation. Ensuring proper drainage around panel installations and using high-efficiency panels that perform well in diffuse light conditions can help offset these effects.
• Humidity and potential for mold growth: The tropical climate creates conditions favorable for biological growth on panels. Using panels with hydrophobic coatings and ensuring adequate ventilation behind the panels can reduce this concern.

Despite these considerations, Varginha's relatively consistent solar radiation throughout the year makes it a favorable location for solar PV installations. The modest seasonal variation between the highest and lowest production months (approximately 1.45 kWh/day difference) indicates that solar energy systems can provide reliable power generation across all seasons.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

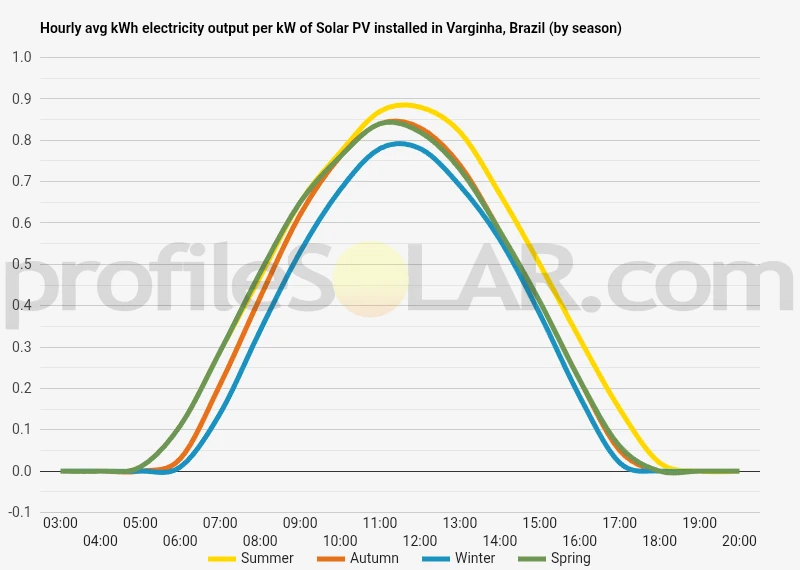

Solar output per kW of installed solar PV by season in Varginha

Seasonal solar PV output for Latitude: -21.5653, Longitude: -45.4126 (Varginha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Varginha, Brazil

To maximize your solar PV system's energy output in Varginha, Brazil (Lat/Long -21.5653, -45.4126) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Varginha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Varginha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Varginha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Varginha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Varginha, Brazil

Varginha, located in the state of Minas Gerais in southeastern Brazil, sits within a varied topographical landscape characterized by rolling hills, valleys, and moderate elevations. The terrain around Varginha is part of the Brazilian Highlands, specifically within the southern portion of the Serra da Mantiqueira mountain range. The city itself rests at an approximate elevation of 950 meters (3,120 feet) above sea level. The surrounding landscape features undulating terrain with gentle to moderate slopes. The topography gradually transitions from hills to more mountainous features as one moves eastward toward the more pronounced sections of the Serra da Mantiqueira. To the west, the terrain becomes somewhat flatter as it extends toward the Rio Grande basin.

Surrounding Terrain Features

The region displays a mix of open areas and forested zones, with numerous small rivers and streams cutting through the landscape. The Lago de Furnas, a large reservoir, lies to the northwest of Varginha. This water body significantly influences the local topography, creating shorelines and peninsulas that break up the otherwise hilly terrain. The natural vegetation of the area consists primarily of Atlantic Forest remnants and transitional cerrado (tropical savanna) ecosystems, though much has been converted to agricultural use over time. Coffee plantations are particularly common in the region, taking advantage of the favorable elevation and soil conditions.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Varginha would be the gently sloping or flat terrains primarily to the west and southwest of the city. These areas offer several advantages: The western regions feature less pronounced hills and more extensive flat areas, making construction and maintenance of large solar arrays more feasible and cost-effective. These locations typically require less earthwork during site preparation, reducing initial development costs. Areas with southern exposure on gentle slopes can actually enhance solar collection efficiency in the Southern Hemisphere. The natural tilt toward the north (remember, in the Southern Hemisphere, northern exposure receives more direct sunlight) can improve energy capture rates. The agricultural lands that have already been cleared of native vegetation present opportunities for solar development with minimal additional environmental impact. Particularly, degraded pastureland or less productive agricultural areas could be repurposed for solar energy production. Some elevated plateaus in the region also present excellent opportunities for solar development, as they often experience less fog and cloud cover than valley locations, potentially increasing solar radiation exposure. Areas to avoid would include the more steeply sloped eastern regions toward the Serra da Mantiqueira proper, densely forested areas that would require significant clearing, and locations near water bodies that might experience more frequent morning fog or increased humidity. The road infrastructure around Varginha, including proximity to highways like BR-491 and BR-381, offers additional advantages for solar development in terms of construction access and connection to distribution networks, making the flatter areas along these transportation corridors particularly attractive for large-scale solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
