Vereda, Bahia, Brazil represents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year, with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Production Performance

The solar energy output at this location shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 6.04 kWh per day per kilowatt of installed solar capacity, making it the peak generation period. Spring and autumn provide very similar output levels at 5.50 kWh and 5.55 kWh respectively, representing solid mid-range production periods. Winter shows the lowest output at 4.25 kWh per day per kilowatt, though this still represents reasonable solar generation compared to many locations worldwide. The difference between peak summer and winter production is approximately 30%, which is relatively modest seasonal variation for solar installations.

Optimal Installation Configuration

For maximum year-round energy production at Vereda, Bahia, solar panels should be installed at a fixed tilt angle of 16 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year, Earth's elliptical orbit, and daily solar irradiance patterns specific to this latitude.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production at this tropical location and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar output through cloud cover and atmospheric moisture. However, rain also provides a natural cleaning benefit for solar panels, helping to maintain their efficiency by washing away dust and debris. Dust accumulation presents a more persistent challenge, particularly during drier periods when rainfall is insufficient to naturally clean panel surfaces. The regional climate and potential for agricultural or industrial dust sources mean regular maintenance cleaning schedules should be established. High humidity levels common in tropical regions can affect electrical components and connections over time, potentially leading to corrosion or reduced system efficiency if not properly addressed during installation.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce moisture buildup around electrical components
• Use marine-grade or tropical-rated electrical components and connections designed to withstand high humidity environments
• Apply protective coatings to mounting hardware and electrical enclosures to prevent corrosion
• Design drainage systems around panel installations to prevent water pooling during heavy rainfall periods
• Establish regular cleaning and maintenance schedules, particularly during dry seasons when dust accumulation is highest

Despite these considerations, Vereda's consistent tropical sunlight and relatively modest seasonal variation make it a highly suitable location for solar energy generation, with proper installation techniques easily addressing the environmental challenges present.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

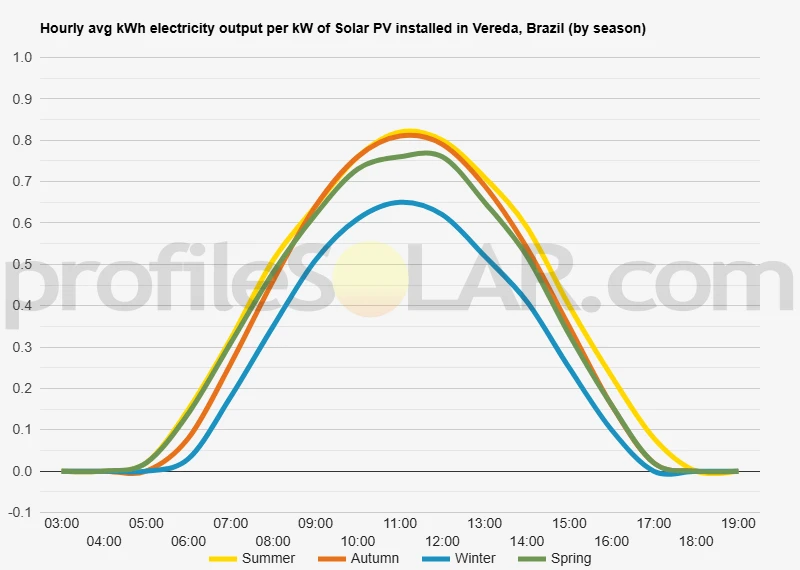

Solar output per kW of installed solar PV by season in Vereda

Seasonal solar PV output for Latitude: -17.1517, Longitude: -40.0506 (Vereda, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Vereda, Brazil

To maximize your solar PV system's energy output in Vereda, Brazil (Lat/Long -17.1517, -40.0506) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vereda, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vereda, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	22° North in Autumn	33° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vereda, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vereda, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vereda, Brazil

Topography and Landscape Characteristics

Vereda is situated in the eastern region of Minas Gerais state, Brazil, within an area characterized by rolling hills and gentle valleys typical of the Brazilian Highlands. The terrain around this location features moderate elevation changes, with the landscape transitioning between agricultural areas, patches of Atlantic Forest remnants, and open grasslands. The topography is generally undulating rather than mountainous, creating a series of ridges and depressions that provide varied microclimates and drainage patterns throughout the region. The surrounding countryside displays the characteristic features of Brazil's southeastern interior, where weathered crystalline rocks have created a landscape of rounded hills and broad valleys. These geological formations result in relatively stable terrain with gradual slopes that are well-suited to various land uses. The area experiences typical tropical highland conditions, with the elevation providing some moderation of temperatures compared to lower-lying regions.

Vegetation and Land Use Patterns

The natural vegetation in the vicinity consists primarily of Cerrado savanna and Atlantic Forest fragments, though much of the original forest cover has been converted to agricultural use over the decades. Cattle pastures dominate much of the landscape, interspersed with crop cultivation areas and remaining forest patches along waterways and steeper slopes. The agricultural character of the region means that large tracts of relatively open land are already cleared and could potentially be repurposed for other uses. Coffee plantations are common throughout this part of Minas Gerais, taking advantage of the favorable climate and topography. These agricultural areas typically feature gentle to moderate slopes that allow for mechanized farming operations while providing adequate drainage during the rainy season.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the flatter valley floors and gentle hillsides that are currently used as cattle pastures or crop fields. These areas offer several advantages including relatively level terrain that minimizes grading requirements, existing access via rural roads, and proximity to agricultural infrastructure that could facilitate construction and maintenance activities. The broad valleys between the rolling hills would be particularly well-suited for solar development, as they provide extensive flat or gently sloping areas with minimal shading from surrounding topography. These locations would allow for optimal panel orientation and spacing while reducing installation costs associated with terrain modification. Areas with southern or southeastern exposures on gentle slopes could also prove excellent for solar installations, as the natural topography would enhance panel positioning for maximum solar collection throughout the day. The key would be selecting sites with gradual gradients rather than steep hillsides, ensuring both construction feasibility and long-term stability of the installations. Former or current agricultural lands would be ideal candidates, as they typically have established access roads, cleared vegetation, and soil conditions that have already been modified for human use. The transition from agricultural use to solar development would be relatively straightforward in terms of land preparation and environmental impact considerations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
