Vila Maria, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy production. Summer delivers the highest output at 7.42 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 6.05 kWh per day per kW, offering strong solar potential during this period. Autumn shows a marked decline in production to 4.91 kWh per day per kW, while winter represents the most challenging period with only 3.61 kWh per day per kW. This winter figure is less than half of the summer production, indicating substantial seasonal variation that must be factored into system sizing and energy planning.

Optimal Panel Configuration

For fixed panel installations at Vila Maria, Rio Grande do Sul, the ideal tilt angle to maximize total year-round solar production is 25 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve optimal annual performance.

Local Factors Affecting Solar Production

Several environmental and weather factors could potentially impact solar energy production at this Southern Sub Tropical location:

• High humidity and moisture: The sub-tropical climate typically brings elevated humidity levels, which can reduce solar panel efficiency and create conditions for dust and debris accumulation on panel surfaces
• Seasonal weather patterns: The region may experience periods of increased cloud cover, particularly during certain seasons, which could contribute to the significant winter production decline
• Precipitation and storms: Sub-tropical regions often experience intense rainfall and potential storm activity that could affect system performance and require robust mounting systems

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules: Implement frequent panel cleaning routines to combat humidity-related buildup and maintain optimal light transmission
• Proper ventilation design: Ensure adequate airflow beneath and around panels to reduce heat buildup caused by high humidity conditions
• Robust mounting systems: Install heavy-duty mounting hardware designed to withstand potential storm conditions and high wind loads
• Quality inverter selection: Choose inverters rated for high-humidity environments with appropriate IP ratings for moisture protection

Despite the seasonal variations and environmental considerations, Vila Maria's summer and spring performance levels indicate that solar PV can be a viable energy solution, particularly when systems are properly designed and maintained to address the local sub-tropical conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

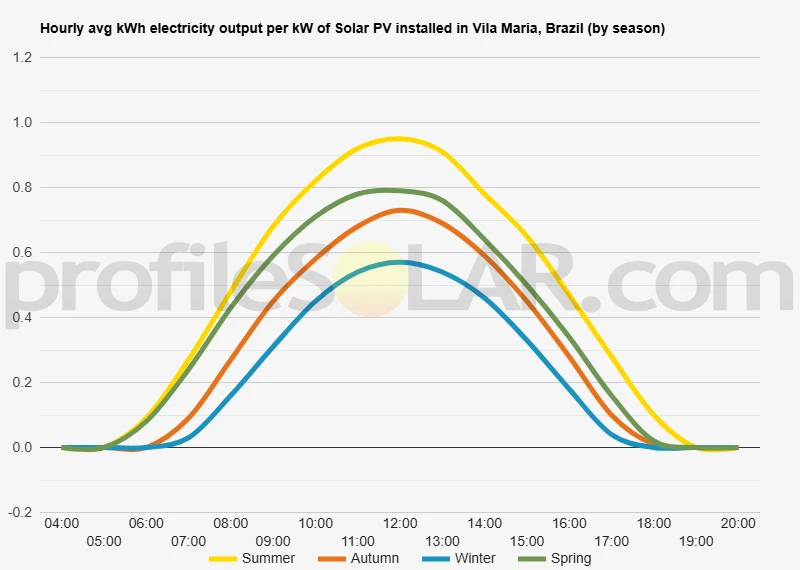

Solar output per kW of installed solar PV by season in Vila Maria

Seasonal solar PV output for Latitude: -28.5569, Longitude: -52.1602 (Vila Maria, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Vila Maria, Brazil

To maximize your solar PV system's energy output in Vila Maria, Brazil (Lat/Long -28.5569, -52.1602) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vila Maria, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vila Maria, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vila Maria, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vila Maria, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vila Maria, Brazil

Topographical Features of Vila Maria Region

Vila Maria is situated in the mountainous terrain of Rio Grande do Sul, Brazil's southernmost state. The landscape around this small municipality is characterized by rolling hills and valleys that are typical of the Serra Gaúcha region. The area sits at a moderate elevation within the Brazilian Highlands, where the topography creates a series of undulating ridges and depressions that define the local geography. The terrain slopes generally toward the east and southeast, following the natural drainage patterns that eventually feed into larger river systems. These gradual slopes are interspersed with steeper hillsides and occasional flat-topped plateaus that provide more level ground. The region's geology consists primarily of volcanic rock formations that have been weathered over millions of years, creating the characteristic red soils common throughout this part of Rio Grande do Sul. Local valleys tend to be relatively narrow and follow the natural watercourses, while the higher elevations offer expansive views across the surrounding countryside. The landscape is a patchwork of agricultural fields, pastureland, and remaining fragments of Atlantic Forest vegetation, particularly on the steeper slopes and in areas less suitable for farming.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Vila Maria would be the elevated plateau areas and gentle south-facing slopes that characterize much of the region. These areas typically offer the best combination of relatively flat terrain and minimal shading from surrounding topographical features throughout the day. The higher elevation plateaus provide several advantages for solar development. These areas tend to have more consistent wind patterns that help with panel cooling, and their elevation reduces the likelihood of fog and low-lying cloud cover that can affect solar generation. The relatively stable ground conditions on these plateaus also make them suitable for the foundation requirements of large solar arrays. Gently sloping terrain with southern exposure would be particularly well-suited for solar installations, as panels can be oriented to optimize sun exposure while taking advantage of the natural grade for drainage and accessibility. Areas with slopes between five and fifteen degrees are often ideal, as they provide good solar access while remaining manageable for construction and maintenance activities. The flatter agricultural areas in the broader valleys could also accommodate large solar installations, particularly where the land is currently used for less intensive farming or grazing. These areas often have the advantage of existing road access and proximity to electrical infrastructure, which can significantly reduce development costs. Areas to avoid would include the steeper hillsides prone to erosion, narrow valleys that experience extended shadowing from surrounding ridges, and locations with unstable soils or frequent flooding. The heavily forested slopes, while potentially suitable from a topographical standpoint, would require significant environmental consideration and are likely better preserved for their ecological value.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
