Solar Energy Potential in Visconde do Rio Branco, Brazil

Visconde do Rio Branco, Brazil, located at latitude -20.9958 and longitude -42.8568, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, though with some seasonal variations. The solar energy production potential shows a clear seasonal pattern. During summer months, each kilowatt of installed solar capacity can generate approximately 6.17 kWh per day, representing the peak production period. Autumn follows with a respectable 5.53 kWh per day, while spring months produce around 5.30 kWh daily. Winter sees the lowest output at 4.67 kWh per day, though this is still considerable compared to many non-tropical locations.

Seasonal Variations and Optimal Installation

The difference between the highest (summer) and lowest (winter) production represents about a 24% seasonal variation, which is relatively moderate. This indicates that while solar energy generation in Visconde do Rio Branco experiences some fluctuation throughout the year, it remains viable year-round. For fixed solar panel installations in this location, the ideal tilt angle to maximize total annual energy production is 20 degrees facing North. This specific angle optimizes solar collection across changing seasonal sun positions, balancing the higher summer sun with the lower winter sun angle.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Visconde do Rio Branco:

• Heavy rainfall during wet seasons may reduce solar exposure and efficiency temporarily
• Dust accumulation, particularly during dry periods, can gradually decrease panel efficiency
• High humidity levels typical of tropical regions may slightly reduce overall efficiency

To mitigate these challenges, several preventative measures are recommended during installation. Self-cleaning panel systems or regular maintenance schedules can address dust accumulation. Elevating panels sufficiently above ground level helps prevent issues during heavy rainfall periods. Additionally, using high-quality panels with anti-reflective coatings designed for tropical conditions can help maintain efficiency despite humidity challenges. Overall, Visconde do Rio Branco presents favorable conditions for solar energy generation with relatively consistent output throughout the year, making it a suitable location for solar PV installations when properly designed for the local tropical conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

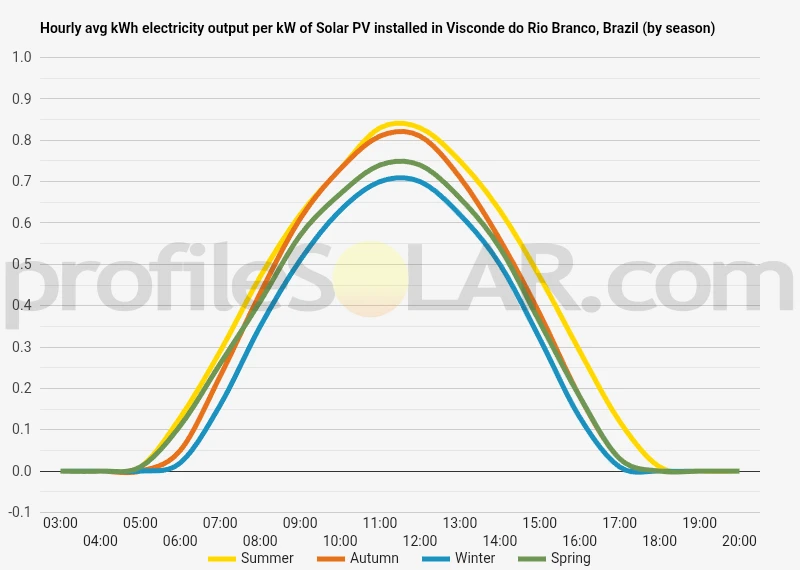

Solar output per kW of installed solar PV by season in Visconde Do Rio Branco

Seasonal solar PV output for Latitude: -20.9958, Longitude: -42.8568 (Visconde Do Rio Branco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Visconde Do Rio Branco, Brazil

To maximize your solar PV system's energy output in Visconde Do Rio Branco, Brazil (Lat/Long -20.9958, -42.8568) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Visconde Do Rio Branco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Visconde Do Rio Branco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Visconde Do Rio Branco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Visconde Do Rio Branco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Visconde Do Rio Branco, Brazil

The region surrounding Visconde do Rio Branco in Brazil's Minas Gerais state features a varied topography characterized by rolling hills, shallow valleys, and modest plateaus. This landscape is part of the larger Atlantic Plateau, which gradually transitions from the coastal mountains toward the interior of Brazil. The terrain around Visconde do Rio Branco typically exhibits elevation changes between 300 and 600 meters above sea level, creating a gently undulating landscape rather than dramatic relief. The area is situated within the watershed of the Rio Doce river system, with numerous small tributaries and streams flowing through the shallow valleys. These waterways have shaped the local topography over millennia, carving gentle depressions between the rolling hills. The soil composition tends to be lateritic in nature, with reddish clay predominant throughout much of the region.

Vegetation and Land Use

The natural vegetation of the region falls within the Atlantic Forest biome, though much of the original forest cover has been altered through centuries of agricultural activity. Currently, the landscape is a mosaic of agricultural fields, pastures, remnant forest patches, and regenerating secondary growth. Coffee plantations, sugar cane fields, and cattle ranching represent significant land uses in the surrounding areas.

Solar PV Suitability

For large-scale solar photovoltaic development, the most suitable areas near Visconde do Rio Branco would be the gently sloping hillsides and plateau regions with southern, eastern, or western aspects. These areas benefit from reduced vegetation density and favorable sun exposure throughout the day. The modest hills with gradual inclines of 5-15 degrees provide natural drainage while minimizing erosion concerns during seasonal rainfall events. Particularly promising are the slightly elevated plateaus located to the north and northwest of the town, where the terrain flattens somewhat and offers larger continuous tracts of land. These areas typically have less agricultural productivity due to their position and soil characteristics, making them economically viable candidates for conversion to solar energy production. The southeastern approaches to the municipality, where the terrain begins to rise more significantly toward the Serra da Mantiqueira mountain range, generally present less optimal conditions due to increased shadowing effects and more fragmented land availability.

Topographical Considerations for Development

When evaluating specific sites for solar development, several topographical factors merit consideration beyond simple elevation. The local drainage patterns are important, as the region experiences seasonal rainfall that can be intense. Sites with natural gradients that prevent water accumulation while minimizing soil erosion offer advantages for long-term infrastructure stability. Additionally, the accessibility of potential sites via existing road networks represents an important logistical consideration. The rolling nature of the landscape means that some otherwise suitable areas may require significant access road development, potentially impacting project economics. The lateritic soils common to the region generally provide adequate stability for solar array foundations, though site-specific geotechnical assessment remains essential for larger installations. These soils typically drain well but can be prone to erosion if vegetation is completely removed, suggesting that ground cover management between and beneath panels would be advisable.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
