Vitor Meireles, Santa Catarina, Brazil, located in the Southern Sub Tropics, shows moderate potential for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the strongest performance at 5.93 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.59 kWh per day per kW, while autumn drops to 4.41 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.37 kWh per day per kW of installed capacity. This represents a significant 43% reduction compared to summer output, which is typical for locations in the Southern Hemisphere where winter brings shorter days and lower sun angles.

Optimal Installation Setup

For maximum year-round energy production at Vitor Meireles, Santa Catarina, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for the varying solar energy potential across different seasons.

Local Environmental Factors

Several environmental and weather factors in the Southern Sub Tropics region could potentially impact solar energy production at this location:

• High humidity levels can reduce panel efficiency and promote faster accumulation of dirt, dust, and organic matter on panel surfaces
• Frequent rainfall during certain seasons may cause temporary reductions in solar output but can also provide natural panel cleaning
• Potential for tropical storms or severe weather events that could damage installations
• Dense vegetation growth in subtropical climates may create shading issues if not properly managed

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered: Regular maintenance schedules become particularly important in subtropical climates. Panel cleaning should be performed more frequently due to faster accumulation of organic debris and the effects of high humidity. Installing panels with adequate spacing and ventilation helps combat efficiency losses from heat and humidity. Proper system grounding and surge protection are essential given the potential for severe weather. Consider installing monitoring systems that can quickly identify performance issues caused by environmental factors. Vegetation management around the installation site should be planned from the outset, with regular trimming schedules to prevent shading as plants grow rapidly in subtropical conditions. When possible, choose installation locations that minimize exposure to prevailing storm directions while maintaining optimal sun exposure. The seasonal variation at Vitor Meireles means that energy storage or grid-tie systems should be designed to account for the significant winter reduction in output, ensuring reliable power supply year-round despite the 43% seasonal performance difference.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

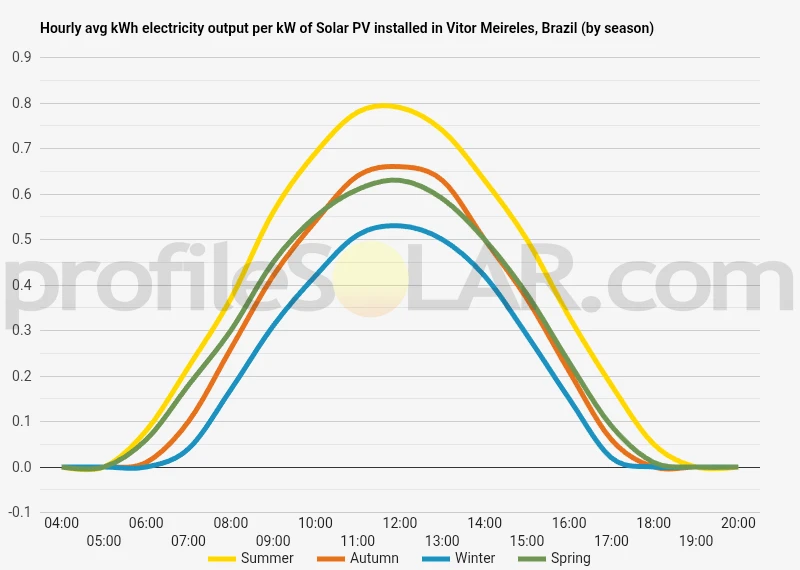

Solar output per kW of installed solar PV by season in Vitor Meireles

Seasonal solar PV output for Latitude: -26.8267, Longitude: -49.8552 (Vitor Meireles, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Vitor Meireles, Brazil

To maximize your solar PV system's energy output in Vitor Meireles, Brazil (Lat/Long -26.8267, -49.8552) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vitor Meireles, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vitor Meireles, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vitor Meireles, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vitor Meireles, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vitor Meireles, Brazil

Topographical Features of Vitor Meireles Region

Vitor Meireles is situated in the northern region of Santa Catarina state in southern Brazil, nestled within the Atlantic Forest biome's mountainous terrain. The municipality sits at an elevation of approximately 400 meters above sea level, positioned along the slopes and valleys of the Serra Geral mountain range. This area forms part of the Brazilian Highlands, where the landscape is characterized by rolling hills, steep-sided valleys, and forested ridgelines that create a complex topographical pattern.

The terrain around Vitor Meireles displays significant variation in elevation, with hillsides rising sharply from river valleys to create a series of ridges and depressions. The Itajaí River system drains much of this region, with numerous tributaries carving deep valleys through the landscape. Dense Atlantic Forest vegetation covers much of the steeper terrain, while agricultural activities have transformed many of the gentler slopes and valley floors into farmland and pastures.

The regional climate is subtropical highland, influenced by the elevation and proximity to the Atlantic Ocean approximately 100 kilometers to the east. The mountainous topography creates localized weather patterns, with frequent cloud formation over ridgelines and varying microclimates between sun-facing and shaded slopes. The area experiences distinct wet and dry seasons, with the topography playing a significant role in precipitation patterns and cloud cover distribution.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Vitor Meireles region would be the cleared agricultural areas on south-facing slopes and the broader valley floors where the terrain is relatively flat or gently undulating. These areas offer the advantage of existing land clearing while providing favorable solar exposure conditions. The agricultural zones that have been converted from forest to pasture or cropland present particularly attractive opportunities, as they combine accessible terrain with reduced environmental impact concerns.

Valley floors and river terraces in the region provide some of the most practical locations for solar development, offering flatter terrain that reduces construction and maintenance costs. These areas are typically already cleared of native vegetation and often have existing road access, making them logistically favorable for large installations. The broader valleys also tend to have less frequent cloud cover compared to the higher ridgelines, improving solar resource availability.

Ridge tops and plateau areas, while offering excellent solar exposure, present challenges due to their ecological sensitivity and the intact Atlantic Forest vegetation that covers many of these elevated areas. However, where ridgelines have already been cleared for agriculture or other development, these locations could provide exceptional solar resources due to their elevation and reduced shading from surrounding terrain.

Areas to avoid for solar development include the steeper hillsides covered in native Atlantic Forest, which are both environmentally protected and technically challenging for construction. The narrow valley bottoms prone to morning fog and extended shading from surrounding hills would also be less suitable. Additionally, locations with unstable soils on steep slopes or areas subject to frequent landslides during heavy rainfall periods should be avoided for safety and economic reasons.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
