Volta Grande, Minas Gerais, Brazil presents a reasonably good location for year-round solar PV energy generation, though it experiences notable seasonal variations in output. The location delivers consistent solar energy throughout the year, with summer being the most productive season at 6.45kWh per day per kW of installed capacity.

Seasonal Performance

The solar generation potential varies significantly across seasons. Summer offers the highest output at 6.45kWh/day per kW, followed by autumn at 5.40kWh/day per kW. Spring provides moderate generation at 5.17kWh/day per kW, while winter shows the lowest productivity at 4.49kWh/day per kW of installed solar capacity. This seasonal pattern means that summer and autumn are the ideal times for solar generation at this location, producing approximately 44% more energy than during the winter months. The difference between peak summer and lowest winter production represents about a 30% reduction in winter output.

Optimal Installation Configuration

For maximum year-round solar production at Volta Grande, Minas Gerais, fixed solar panels should be installed at a tilt angle of 20 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual energy output.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this location and require consideration during installation:

• Tropical rainfall patterns: The wet season can reduce solar output due to cloud cover and frequent precipitation that blocks sunlight
• High humidity levels: Tropical humidity can cause moisture buildup on panels, reducing light transmission and efficiency
• Dust and debris accumulation: Dry periods may lead to dust settling on panels, particularly problematic during drier months
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Regular cleaning schedules become essential, with more frequent cleaning during dusty dry periods and after heavy rains that may leave residue on panels. Proper drainage systems should be installed to prevent water pooling around panel installations. Anti-reflective coatings can help maintain efficiency during high humidity conditions, while adequate spacing between panels ensures proper air circulation to reduce moisture-related issues. Vegetation management around the solar installation is crucial, requiring regular trimming of trees and bushes that could cast shadows on panels. Installing panels at sufficient height above ground level helps minimize dust accumulation from ground-level activities and provides better air circulation for cooling.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

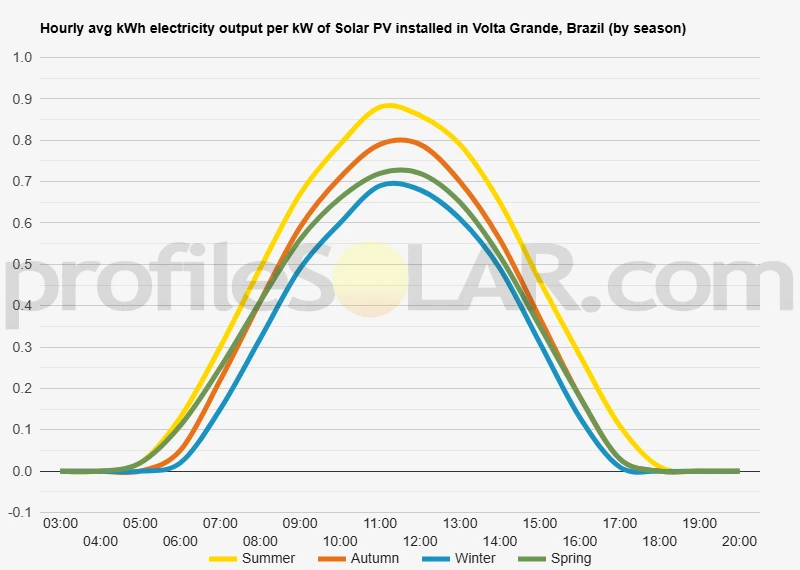

Solar output per kW of installed solar PV by season in Volta Grande

Seasonal solar PV output for Latitude: -21.7547, Longitude: -42.5728 (Volta Grande, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Volta Grande, Brazil

To maximize your solar PV system's energy output in Volta Grande, Brazil (Lat/Long -21.7547, -42.5728) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Volta Grande, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Volta Grande, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Volta Grande, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Volta Grande, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Volta Grande, Brazil

Topographical Features of the Volta Grande Region

The Volta Grande area in Brazil sits within the southeastern portion of Minas Gerais state, positioned in a region characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. This location falls within the broader geological formation known as the Serra da Mantiqueira system, though at a more subdued elevation compared to the dramatic peaks found further east.

The immediate terrain around Volta Grande features undulating topography with gentle to moderate slopes, interspersed with flatter valley areas and plateaus. The elevation in this region generally ranges from approximately 400 to 800 meters above sea level, creating a landscape that transitions between river valleys and elevated ridges. The area benefits from well-defined drainage patterns, with several waterways cutting through the terrain and creating natural boundaries between elevated areas.

The geological foundation consists primarily of crystalline rocks from the Precambrian era, overlaid with weathered soils that have developed over millions of years. This has resulted in relatively stable ground conditions with good load-bearing capacity, though the degree of weathering varies across different areas. The terrain shows evidence of both ancient geological processes and more recent erosional activity, creating a complex but generally predictable landscape for development purposes.

Climate and Environmental Conditions

The region experiences a tropical highland climate with distinct wet and dry seasons. The elevated position contributes to more moderate temperatures compared to lower-lying areas of Brazil, while the topographical variation creates localized microclimates throughout the area. Wind patterns are influenced by the surrounding hills and valleys, with generally consistent airflow that aids in natural cooling and dust dispersal.

Vegetation in the area represents a transition zone between cerrado savanna and Atlantic Forest remnants, with much of the original forest cover having been converted to agricultural use over the past century. The remaining natural areas tend to concentrate along waterways and on steeper slopes that are less suitable for farming.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the elevated plateaus and gentle south-facing slopes that characterize much of the region. These areas offer several advantages including relatively flat terrain that minimizes grading requirements, stable geological conditions suitable for foundation construction, and natural drainage that reduces water management concerns.

The broad ridgetops and mesa-like formations scattered throughout the area present particularly attractive opportunities for solar development. These elevated areas typically feature consistent grade changes of less than five percent over substantial distances, making them ideal for large-scale solar arrays while minimizing civil engineering challenges. The stable crystalline bedrock underlying these areas provides excellent foundation conditions for mounting systems.

Valley floor areas, while often flatter, may present drainage challenges during the rainy season and could require more extensive site preparation. However, some of the wider valley areas with good drainage characteristics could serve as secondary development zones, particularly where they connect to existing electrical infrastructure.

Areas with northern exposure on moderate slopes also present good opportunities, as they can take advantage of optimal solar angles while benefiting from natural air circulation patterns that help maintain equipment temperatures within acceptable ranges. The consistent trade wind patterns in this region provide natural cooling that can improve photovoltaic efficiency.

Access considerations favor areas closer to existing road networks, particularly those with connections to the regional highway system. The terrain generally allows for reasonable access road construction, though some of the more elevated sites may require additional infrastructure investment. Proximity to existing electrical transmission infrastructure also influences site suitability, with several areas benefiting from relatively close access to the regional power grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
