Solar Energy Potential in Votorantim, São Paulo, Brazil

Votorantim, São Paulo, located in the Southern Sub Tropics of Brazil, offers a promising location for solar energy generation. The city's geographical position at latitude -23.5788 and longitude -47.4077 provides favorable conditions for solar photovoltaic (PV) installations throughout the year. Solar energy production in Votorantim varies across seasons, with summer being the most productive period. During summer months, a solar PV system can generate an average of 6.55 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, with an average daily output of 5.89 kWh/kW. Autumn and winter see a slight decrease in solar energy production, but still maintain respectable levels. Autumn generates an average of 5.28 kWh/day per kW installed, while winter produces 4.39 kWh/day per kW. This relatively consistent output across seasons makes Votorantim an ideal location for year-round solar energy generation.

Optimal Panel Tilt Angle

For fixed panel installations in Votorantim, São Paulo, the ideal tilt angle to maximize year-round solar production is 21 degrees facing North. This angle optimizes the panels' exposure to sunlight throughout the year, taking into account the city's latitude and the sun's position in the sky during different seasons.

Environmental and Weather Considerations

While Votorantim generally offers favorable conditions for solar energy production, there are a few factors to consider: 1. Rainfall: The region experiences a wet season, typically from October to March. Heavy rain can temporarily reduce solar panel efficiency. 2. Cloud cover: Increased cloud cover during the wet season may impact solar energy generation. To mitigate these factors, consider the following preventative measures:

• Install high-quality, weather-resistant solar panels designed to perform well in various conditions.
• Implement a robust cleaning and maintenance schedule to ensure panels remain free from debris and rainwater residue.
• Use micro-inverters or power optimizers to minimize the impact of partial shading from clouds on overall system performance.

By taking these precautions, solar PV installations in Votorantim can maintain high levels of energy production throughout the year, making the most of the city's favorable solar conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

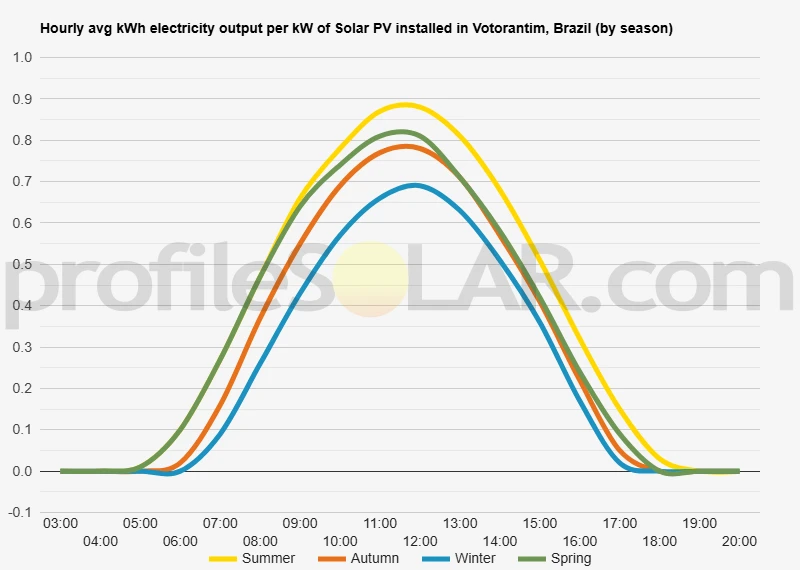

Solar output per kW of installed solar PV by season in Votorantim

Seasonal solar PV output for Latitude: -23.5788, Longitude: -47.4077 (Votorantim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Votorantim, Brazil

To maximize your solar PV system's energy output in Votorantim, Brazil (Lat/Long -23.5788, -47.4077) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Votorantim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Votorantim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Votorantim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Votorantim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Votorantim, Brazil

The topography around Votorantim, Brazil, located at latitude -23.5788 and longitude -47.4077, is characterized by a diverse landscape that combines rolling hills, valleys, and some flatter areas. This region is part of the Atlantic Plateau, which features a mix of undulating terrain and more elevated areas. Votorantim itself is situated in a valley surrounded by gentle hills and low mountains. The area is part of the Serra de São Francisco mountain range, which contributes to the varied elevation in the region. The terrain gradually rises as you move away from the city center, with some steeper slopes and rocky outcrops in the surrounding countryside. The region experiences a subtropical climate with warm summers and mild winters, which is generally favorable for solar energy production. However, the varying topography can impact the suitability of different areas for large-scale solar PV installations.

Suitable Areas for Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would typically be: Flatter areas with minimal shading from surrounding hills or mountains are prime candidates for solar farms. These can often be found in the broader valleys between the hills, where there is less obstruction to sunlight throughout the day. Gently sloping hillsides facing north (in the Southern Hemisphere) can also be excellent locations for solar panels. These areas receive more direct sunlight throughout the year, potentially increasing energy production efficiency. Former agricultural lands or cleared areas that are not currently in use for farming or other purposes could be repurposed for solar installations. These locations often have the advantage of being relatively flat and free from large vegetation that could cast shadows. It's important to note that while the hilly terrain around Votorantim presents some challenges for large-scale solar installations, it also offers opportunities. The varied landscape means that there are likely to be numerous smaller areas suitable for solar farms, which could be developed into a network of distributed solar energy production sites. When selecting specific locations for solar PV projects, additional factors such as proximity to existing power infrastructure, road access, and local zoning regulations would need to be considered alongside the topographical suitability.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
