Solar Energy Potential in Votuporanga, São Paulo, Brazil

Votuporanga, São Paulo, Brazil offers a promising location for solar PV energy generation, with consistent production potential throughout the year thanks to its tropical location. This site, situated at latitude -20.4811 and longitude -50.0146, demonstrates good year-round solar energy potential with some seasonal variation. The location shows strong solar performance across all seasons, with the highest production occurring during summer months when panels can generate approximately 6.98kWh per day for each kilowatt of installed capacity. Spring follows closely with 6.56kWh/day per installed kilowatt. Even during the less productive seasons, the output remains substantial with autumn producing 5.86kWh/day and winter yielding 5.10kWh/day per kilowatt of installed capacity.

Seasonal Performance and Optimization

The seasonal variation shows approximately 27% difference between the most productive season (summer) and the least productive season (winter). This relatively modest variation is characteristic of tropical locations where solar radiation remains fairly consistent throughout the year, unlike locations at higher latitudes that experience dramatic seasonal differences. For maximum year-round energy production at this Votuporanga location, fixed solar panels should be tilted at 19 degrees facing North. This optimal angle has been calculated by analyzing daily solar elevation patterns at this specific latitude, weighted by the daily PV potential to maximize annual energy harvest.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Votuporanga:

• Dust accumulation during dry seasons can reduce panel efficiency by 10-30% if not addressed
• Heavy rainfall during wet seasons may temporarily reduce production but generally helps clean panels naturally
• High temperatures in summer months can slightly reduce panel efficiency

To mitigate these challenges, solar installations in Votuporanga should incorporate several preventative measures. Regular cleaning schedules should be implemented, especially during dry periods when dust accumulation is highest. Installing panels with sufficient spacing and ventilation helps manage heat-related efficiency losses. Additionally, using quality inverters with high temperature ratings will ensure better performance during hot weather. The consistent solar radiation throughout the year makes Votuporanga an excellent location for solar PV deployment, with proper installation practices addressing the minor seasonal challenges that exist.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

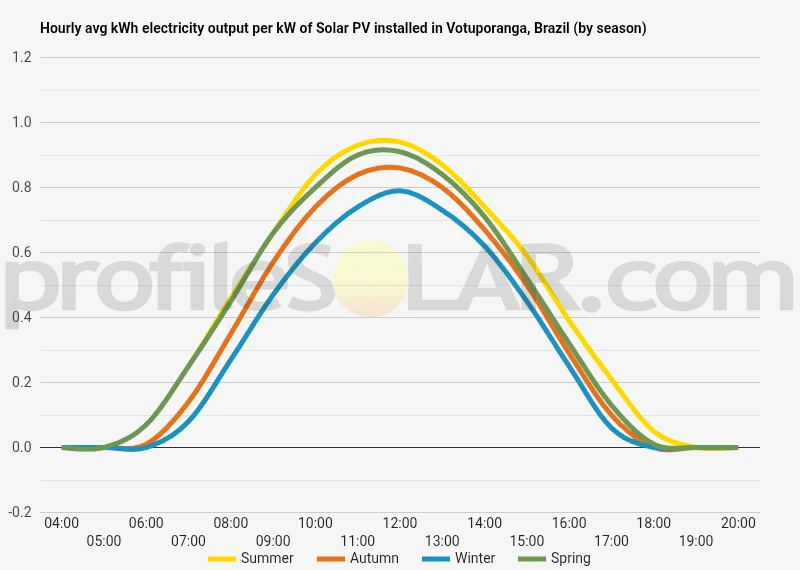

Solar output per kW of installed solar PV by season in Votuporanga

Seasonal solar PV output for Latitude: -20.4811, Longitude: -50.0146 (Votuporanga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Votuporanga, Brazil

To maximize your solar PV system's energy output in Votuporanga, Brazil (Lat/Long -20.4811, -50.0146) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Votuporanga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Votuporanga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Votuporanga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Votuporanga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Votuporanga, Brazil

The landscape surrounding Votuporanga in the northwestern region of São Paulo state, Brazil, is characterized by gently rolling hills and expansive plateaus. Situated at an elevation of approximately 520 meters above sea level, the area forms part of the larger Western Plateau of São Paulo. The terrain features modest undulations rather than dramatic changes in elevation, creating a predominantly flat to moderately hilly panorama that stretches across the horizon. The region's natural vegetation historically consisted of tropical savanna (cerrado) and Atlantic Forest fragments, though much of this has been transformed by agricultural development. Today, the landscape is dominated by agricultural fields, pastures, and scattered patches of remaining native vegetation. The soil composition tends toward the reddish latosols typical of interior São Paulo state, developed from sandstone and basaltic rock formations that underlie the region.

Hydrography and Drainage

Votuporanga sits within the São José dos Dourados River basin, with several smaller waterways crossing the region. These water bodies have shaped the local topography through gradual erosion, creating shallow valleys between the rolling hills. The drainage pattern is dendritic, with smaller streams joining larger waterways in a branching pattern typical of regions with relatively uniform underlying geology.

Climate and Solar Potential

The climate is classified as tropical with a dry season (Aw in the Köppen system), featuring distinct wet and dry periods throughout the year. The region experiences abundant solar radiation, with clear skies predominating during the dry season from April to September. This climate pattern makes the area particularly conducive to solar energy development.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The northern and northwestern outskirts of Votuporanga offer extensive flat terrain with minimal shading concerns. These areas, often currently used for agriculture, provide the large, unobstructed spaces necessary for utility-scale solar farms. The plateau regions extending toward Fernandópolis (to the northwest) feature ideal topographical conditions with minimal slope angles, reducing installation complexity and maximizing direct solar exposure. These elevated plateaus benefit from unimpeded solar access throughout the day. The agricultural lands between Votuporanga and Valentim Gentil to the west present another promising zone, characterized by gently rolling terrain with favorable south-facing aspects that receive consistent sunlight exposure throughout the year. Areas to the southeast toward Álvares Florence, while still suitable, may present slightly more varied terrain requiring additional site preparation. However, the higher elevation in some of these locations could offer advantages in terms of reduced ambient temperatures, which can benefit PV panel efficiency.

Considerations for Development

When evaluating specific sites within these broader areas, several topographical factors warrant consideration. Land with slopes between 1-3% provides optimal drainage while minimizing grading requirements. Areas with good access to existing road networks and proximity to transmission infrastructure would reduce development costs significantly. The clay-rich soils common to parts of the region may require specialized foundation solutions for solar array mounting systems. Additionally, while the region is not prone to severe flooding, seasonal rainfall patterns should inform drainage design for any large-scale installation. The combination of favorable topography, abundant solar resource, and relatively low population density makes the Votuporanga region particularly well-suited for large-scale solar PV development compared to many other parts of Brazil.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
