Guaraciaba, Brazil, located in the Southern Sub Tropics, offers a moderately good location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation throughout the year. Summer delivers the strongest performance at 7.06 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 6.06 kWh per day per kW, while autumn drops to 5.21 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.85 kWh per day per kW of installed capacity. This represents nearly a 45% reduction compared to summer output, which is typical for locations in the Southern Hemisphere where winter coincides with the sun's lowest position in the sky.

Optimal Panel Installation

For maximum year-round energy production at Guaraciaba, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for daily solar potential.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this Southern Sub Tropical location:

• High humidity and frequent cloud cover during certain seasons, particularly affecting winter performance
• Potential for heavy rainfall and storms, especially during summer months
• Dust and debris accumulation on panels due to agricultural activities in the region
• Temperature-related efficiency losses during hot summer periods

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered. Regular cleaning schedules become essential to remove dust, pollen, and debris that can significantly reduce panel efficiency. Installing panels with adequate ventilation space underneath helps manage heat buildup and maintains better electrical performance during hot weather. Choosing high-quality panels with good low-light performance can help maintain reasonable output during cloudy periods. Additionally, installing a robust mounting system designed to withstand strong winds and storms ensures long-term reliability and prevents damage that could interrupt energy production. Proper drainage around the installation area prevents water pooling that could lead to ground-level moisture issues, while strategic placement away from large trees or structures minimizes shading during the crucial morning and afternoon sun hours.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

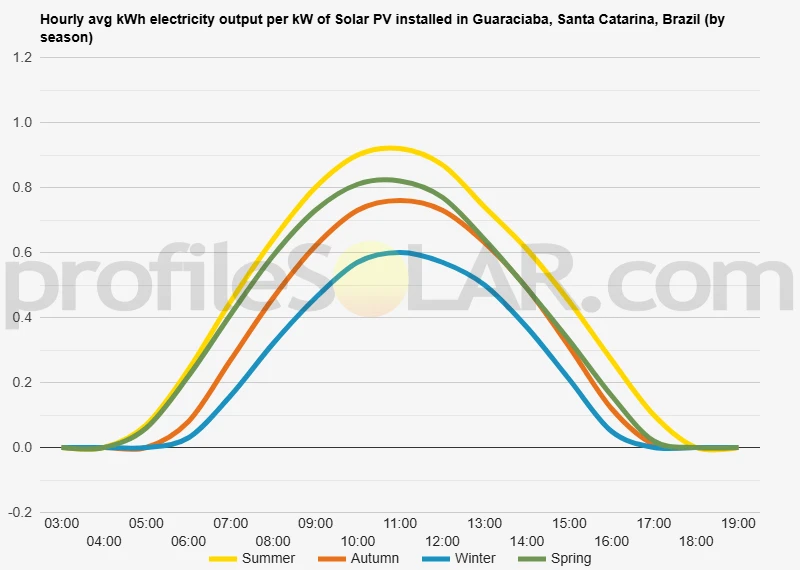

Solar output per kW of installed solar PV by season in Guaraciaba, Santa Catarina

Seasonal solar PV output for Latitude: -26.5716, Longitude: -53.5943 (Guaraciaba, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Guaraciaba, Santa Catarina, Brazil

To maximize your solar PV system's energy output in Guaraciaba, Santa Catarina, Brazil (Lat/Long -26.5716, -53.5943) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guaraciaba, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guaraciaba, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guaraciaba, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guaraciaba, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guaraciaba, Santa Catarina, Brazil

Topographical Features of the Guaraciaba Region

The area around Guaraciaba in Santa Catarina state sits within the southern Brazilian highlands, characterized by rolling hills and moderate elevation changes typical of the Serra Geral formation. This region forms part of the broader Paraná Plateau, where ancient volcanic activity created a landscape of undulating terrain with elevations generally ranging between 200 to 800 meters above sea level. The topography consists primarily of gentle to moderate slopes interspersed with flatter valley areas and ridgelines. The terrain becomes more pronounced moving eastward toward the Atlantic coastal ranges, while westward areas toward the Argentina border tend to flatten somewhat. Rivers and streams have carved valleys through the landscape over millennia, creating a network of drainage channels that flow generally westward toward the Paraná River system. Agricultural land dominates much of the visible landscape, with fields of soybeans, corn, and pasture covering the rolling hills. Forest remnants of the Atlantic Forest (Mata Atlântica) persist in steeper areas and along waterways, though much of the original forest cover was cleared for farming decades ago. The region experiences a subtropical climate with distinct wet and dry seasons.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broader valley floors and gentle hillsides with southern exposure. These areas offer several advantages including relatively level ground that minimizes grading costs, good accessibility for construction and maintenance equipment, and optimal solar orientation. The flatter agricultural areas currently used for row crops would be particularly well-suited, as they already lack significant vegetation obstacles and have established road access. Ridge tops and upper slopes facing north, east, or west could also accommodate solar arrays, though installation costs would be higher due to the terrain challenges. However, these elevated positions often experience better air circulation, which can improve panel efficiency by reducing operating temperatures. Areas to avoid would include the steeper valley sides, heavily forested sections, and locations with poor drainage where seasonal flooding might occur. The narrow riparian corridors along streams and rivers should also be preserved for environmental reasons and would face regulatory restrictions for development. The existing agricultural infrastructure in the region, including roads and electrical transmission lines, provides a foundation that could support large solar installations. Many current farming areas could potentially be converted to solar use or developed as agrivoltaic systems that combine solar panels with continued agricultural production beneath them.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
