Bom Jardim, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -3.7741, -46.2171, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than dramatic variations in solar availability.

Solar Energy Production Potential

The solar energy output at Bom Jardim shows remarkably consistent performance across all seasons. During summer months, solar panels can be expected to generate 5.25 kWh per day for each kilowatt of installed capacity. Production actually improves as the year progresses, with autumn delivering 5.51 kWh/day per kW, winter producing 5.68 kWh/day per kW, and spring reaching the peak output of 5.80 kWh/day per kW. This seasonal pattern makes spring and winter the ideal times for maximum solar generation at this location, though the difference between seasons is relatively modest. The consistency across all seasons means that solar installations can provide reliable energy production year-round. For optimal performance, fixed solar panels at Bom Jardim should be tilted at 4 degrees toward the north. This angle has been calculated to maximize total annual solar output by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical location:

• High humidity and frequent rainfall during wet seasons can reduce solar panel efficiency and create more dust and debris accumulation
• Intense tropical storms and heavy downpours may damage equipment or create temporary shading from cloud cover
• Dense vegetation growth in the tropical climate can quickly create shading issues if not properly managed
• High temperatures, while providing strong sunlight, can actually reduce solar panel efficiency as photovoltaic cells perform less effectively in extreme heat

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation space underneath to allow air circulation and cooling
• Use mounting systems that facilitate easy cleaning and maintenance access
• Implement regular cleaning schedules to remove tropical dust, pollen, and organic debris
• Ensure proper drainage around installations to prevent water accumulation
• Select equipment rated for high humidity and temperature extremes
• Maintain clear sight lines by regularly trimming vegetation that could create shade
• Consider micro-inverters or power optimizers to minimize impact from partial shading

Despite these considerations, Bom Jardim's tropical location offers excellent conditions for solar energy generation, with consistent high output throughout the year making it a very favorable location for solar photovoltaic installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

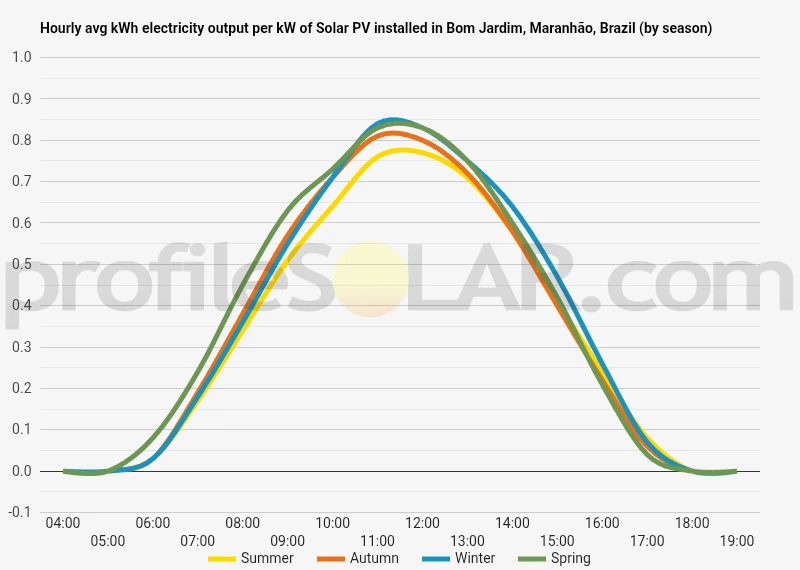

Solar output per kW of installed solar PV by season in Bom Jardim, Maranhão

Seasonal solar PV output for Latitude: -3.7741, Longitude: -46.2171 (Bom Jardim, Maranhão, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Bom Jardim, Maranhão, Brazil

To maximize your solar PV system's energy output in Bom Jardim, Maranhão, Brazil (Lat/Long -3.7741, -46.2171) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bom Jardim, Maranhão, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bom Jardim, Maranhão, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bom Jardim, Maranhão, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bom Jardim, Maranhão, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bom Jardim, Maranhão, Brazil

Topographical Features of the Bom Jardim Region

The area surrounding Bom Jardim in Maranhão state sits within the expansive Brazilian Highlands, characterized by gently rolling hills and broad plateaus that extend across much of the region. This landscape represents a transition zone between the Amazon Basin to the west and the more elevated terrain of Brazil's central plateau system. The elevation in this area typically ranges from 200 to 400 meters above sea level, creating a moderately undulating terrain that lacks dramatic elevation changes or steep mountainous features. The topography consists primarily of weathered sedimentary formations that have been shaped over millennia by tropical weathering processes. These geological foundations have created a landscape of rounded hills separated by wide valleys and gentle slopes. The terrain displays the classic characteristics of an old, stable landmass where erosional processes have smoothed and softened the original relief over geological time. Drainage patterns in the region follow the natural contours of this rolling landscape, with numerous small streams and seasonal watercourses flowing through the valleys between hills. The watershed patterns create a dendritic network of shallow valleys that dissect the higher ground, though none of these features represent significant obstacles to development or present extreme topographical challenges.

Vegetation and Land Use Patterns

The natural vegetation of this region represents a complex mosaic of cerrado savanna, gallery forests along watercourses, and patches of more densely wooded areas on hillsides. Much of the original vegetation has been modified by agricultural activities, particularly cattle ranching and crop cultivation, which have created extensive areas of cleared or semi-cleared land across the rolling landscape. Agricultural conversion has resulted in large expanses of relatively flat to gently sloping cleared land, interspersed with remaining forest patches and riparian vegetation along streams and rivers. This pattern of land use has inadvertently created numerous potential sites that combine suitable topographical conditions with existing infrastructure access.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the broader plateau areas and gentle hillsides that characterize much of the region around Bom Jardim. These elevated areas offer several advantages including naturally well-drained sites, reduced risk of flooding during seasonal rains, and topography that requires minimal grading or site preparation for large-scale installations. The rolling hills provide numerous south-facing slopes that would be ideally oriented for solar panel placement in this southern hemisphere location. These natural slopes can be utilized to optimize panel positioning without extensive earthworks, reducing both construction costs and environmental impact. The moderate gradients typical of the region allow for efficient panel spacing and maintenance access while maintaining good drainage characteristics. Previously cleared agricultural land on these elevated areas represents particularly attractive development opportunities. These sites combine suitable topographical conditions with existing access infrastructure and reduced environmental sensitivity compared to forested areas. The gently undulating nature of much of this cleared land provides flexibility in system design while maintaining the drainage advantages of elevated terrain. Areas to avoid would include the steeper hillsides where erosion control might become problematic, low-lying areas subject to seasonal flooding, and the narrow valley bottoms where drainage could be inadequate. The riparian zones along watercourses should also be avoided both for environmental reasons and due to their typically irregular topography and higher moisture levels. The broad interfluves - the higher ground between drainage valleys - represent the most suitable terrain overall. These areas combine gentle slopes, good drainage, stable soils, and often existing agricultural access roads. The consistent elevation and gradual slopes found on these plateau-like areas would allow for efficient installation of large solar arrays with minimal site modification requirements.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
