Água Branca, Brazil presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -7.4672, -37.6625, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output at Água Branca shows strong performance across all seasons, with some notable seasonal variations. Spring emerges as the most productive season, generating 7.48 kWh per day per kW of installed solar capacity. Summer follows closely with 6.58 kWh/day per kW, while autumn produces 6.25 kWh/day per kW. Winter shows the lowest output at 5.78 kWh/day per kW, though this still represents solid production levels. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 7 degrees North. This relatively shallow angle maximizes total annual solar production by accounting for the location's proximity to the equator and the sun's varying position throughout the year.

Environmental and Weather Challenges

Several environmental factors in this tropical location could potentially impact solar energy production: Dust and Particulate Accumulation: The semi-arid climate typical of this region of Brazil can lead to significant dust buildup on solar panels. Wind-blown particles and extended dry periods create conditions where dust accumulates rapidly, reducing panel efficiency by blocking sunlight from reaching photovoltaic cells. Seasonal Rainfall Patterns: While the wet season can help naturally clean panels, intense tropical downpours may be followed by extended dry periods. The transition between wet and dry seasons can create conditions where panels remain dirty for extended periods, particularly during the dry season when natural cleaning from rainfall is minimal. High Humidity and Corrosion: Tropical humidity levels can accelerate corrosion of metal components and connections in solar installations. This moisture can also create conditions for mold or algae growth on panel surfaces, further reducing efficiency.

Preventative Measures for Optimal Performance

Several strategies can help maintain high energy production despite these environmental challenges:

• Regular Cleaning Schedule: Implement a systematic cleaning routine, particularly during dry seasons when dust accumulation is heaviest
• Anti-Soiling Coatings: Apply hydrophobic or self-cleaning coatings to panel surfaces to reduce dust adhesion and improve water runoff
• Corrosion-Resistant Materials: Use marine-grade or tropical-rated mounting systems, wiring, and connections designed to withstand high humidity
• Proper Drainage Design: Ensure installation allows for adequate water drainage to prevent standing water and reduce humidity around electrical components
• Vegetation Management: Maintain clear areas around installations to prevent organic debris accumulation and ensure proper air circulation

Despite these environmental considerations, Água Branca's consistent tropical sunlight and strong seasonal production figures make it a highly suitable location for solar energy generation. With proper installation techniques and regular maintenance, solar installations can achieve excellent performance throughout the year, with spring offering particularly favorable conditions for peak energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

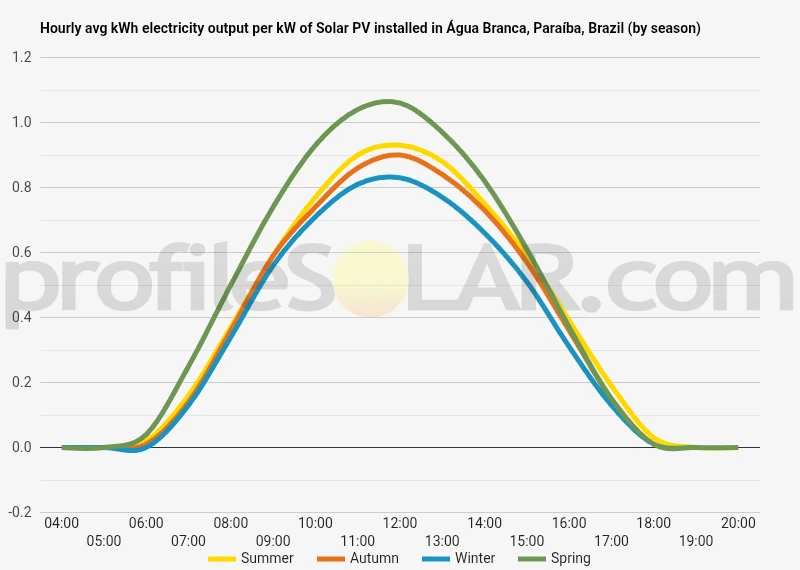

Solar output per kW of installed solar PV by season in Água Branca, Paraíba

Seasonal solar PV output for Latitude: -7.4672, Longitude: -37.6625 (Água Branca, Paraíba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Água Branca, Paraíba, Brazil

To maximize your solar PV system's energy output in Água Branca, Paraíba, Brazil (Lat/Long -7.4672, -37.6625) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Água Branca, Paraíba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Água Branca, Paraíba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Água Branca, Paraíba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Água Branca, Paraíba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Água Branca, Paraíba, Brazil

Topographical Features of the Água Branca Region

Água Branca is situated in the interior of Paraíba state in northeastern Brazil, positioned within the semi-arid region known as the Caatinga. The topography around this municipality is characterized by gently rolling hills and elevated plateaus that form part of the broader Borborema Plateau system. The terrain exhibits moderate elevation changes, with the landscape gradually rising from approximately 400 meters above sea level in the lower areas to around 600 meters in the higher elevations.

The region features a mix of flat-topped mesas and undulating countryside, creating a varied but generally accessible terrain. Rocky outcrops of crystalline basement rocks are common throughout the area, interspersed with areas of weathered sedimentary deposits. The drainage pattern is defined by seasonal streams and intermittent watercourses that flow toward the larger river systems during the wet season, leaving behind broad, relatively flat valley floors during dry periods.

Vegetation in the surrounding area consists primarily of thorny scrubland typical of the Caatinga biome, with scattered cacti and drought-resistant trees. This sparse vegetation cover means that large areas of land remain relatively unobstructed, with minimal shading from tall forest canopy that might interfere with solar installations.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for extensive solar photovoltaic installations around Água Branca would be the flat to gently sloping plateaus that extend northward and eastward from the municipal center. These elevated areas offer several advantages for solar development, including relatively level terrain that minimizes grading requirements and reduces installation costs. The plateau surfaces also provide natural drainage away from equipment during the brief but intense rainfall periods characteristic of the semi-arid climate.

The broad valley floors created by seasonal drainage patterns present another excellent opportunity for large-scale solar farms. These areas typically feature minimal slope and have already been naturally cleared of major obstacles. The sedimentary soils in these locations are generally more stable for foundation work compared to the rockier upland areas, though both terrain types are suitable for solar installations with appropriate engineering.

Areas to the south and southwest of Água Branca show particular promise due to their combination of favorable topography and minimal existing development pressure. The terrain in these directions maintains the gentle rolling character while offering large contiguous parcels of land that would be ideal for utility-scale solar projects. The sparse population density in these areas also means fewer potential conflicts with existing land uses.

When selecting specific sites, developers should prioritize locations with southern-facing slopes where possible, as these provide optimal solar exposure in the Southern Hemisphere. The moderate elevations throughout the region help ensure good air circulation around solar panels, which aids in maintaining efficiency by preventing excessive heat buildup. Additionally, the rocky substrate underlying much of the area provides excellent stability for mounting systems, though careful site-specific geological assessment remains important for any major installation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
