Itapeva, Brazil represents a moderately good location for year-round solar energy generation, though it's not among the world's most optimal sites. Located in the southern portion of Brazil's tropical zone, this area benefits from relatively consistent sunlight throughout the year, though seasonal variations are more pronounced than in equatorial regions.

Seasonal Solar Performance

The solar energy output at Itapeva shows clear seasonal patterns that reflect the Southern Hemisphere's climate cycle. Summer months deliver the strongest performance at 6.62kWh per day per kW of installed capacity, making this the peak season for solar generation. Spring follows closely behind with 6.08kWh per day, indicating that the September-to-December period represents the optimal window for maximum solar energy production. Autumn performance drops to 5.49kWh per day, while winter represents the lowest production period at 4.83kWh per day per kW installed. Despite this winter dip, the location maintains reasonable solar output year-round, with winter production still reaching about 73% of summer levels.

Optimal Panel Configuration

For fixed panel installations at Itapeva, the ideal tilt angle is 21 degrees facing north to maximize total annual energy production. This angle has been calculated by analyzing daily solar elevation patterns throughout the year and weighting them according to actual solar irradiance potential, accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location and require careful consideration during installation:

• Seasonal rainfall patterns: Brazil's tropical climate brings distinct wet and dry seasons, with heavy rainfall potentially reducing solar irradiance during certain months
• High humidity levels: Tropical conditions can lead to moisture buildup on panels and increased corrosion risks for electrical components
• Dust and vegetation growth: The combination of dry periods followed by humid conditions can create optimal environments for dust accumulation and rapid plant growth around installations
• Temperature effects: High ambient temperatures can reduce panel efficiency, as photovoltaic cells typically perform better in cooler conditions

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install panels with adequate spacing and proper mounting systems that allow rainwater to drain quickly and completely
• Regular cleaning schedules: Establish maintenance routines timed with seasonal patterns, particularly before and after the wet season
• Corrosion-resistant materials: Use marine-grade or tropical-rated mounting hardware and electrical components designed for high-humidity environments
• Adequate ventilation: Ensure proper airflow beneath panels to minimize heat buildup and maintain optimal operating temperatures
• Vegetation management: Plan for ongoing landscape maintenance to prevent shading from fast-growing tropical plants

Overall, while Itapeva presents some typical tropical climate challenges for solar installations, these can be effectively managed through proper planning and regular maintenance, allowing the location to deliver solid year-round solar energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

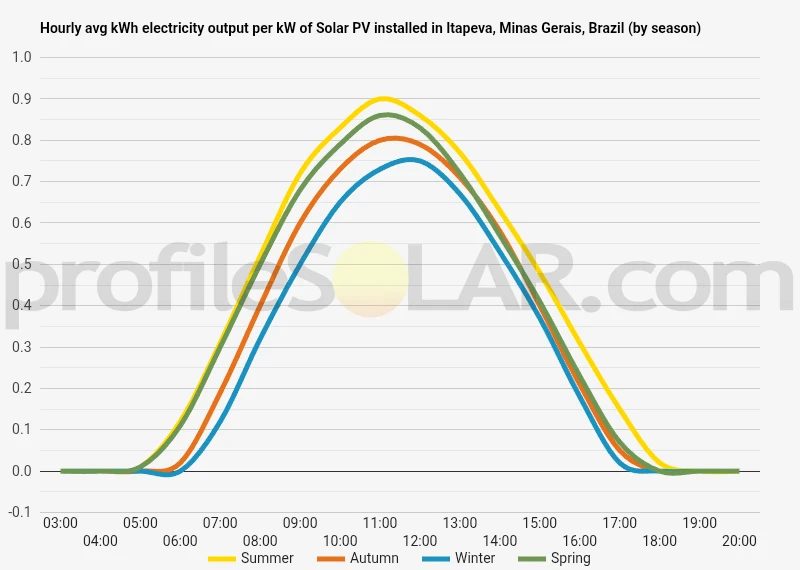

Solar output per kW of installed solar PV by season in Itapeva, Minas Gerais

Seasonal solar PV output for Latitude: -22.6972, Longitude: -46.2159 (Itapeva, Minas Gerais, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Itapeva, Minas Gerais, Brazil

To maximize your solar PV system's energy output in Itapeva, Minas Gerais, Brazil (Lat/Long -22.6972, -46.2159) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itapeva, Minas Gerais, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itapeva, Minas Gerais, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itapeva, Minas Gerais, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itapeva, Minas Gerais, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itapeva, Minas Gerais, Brazil

Topographical Features of the Itapeva Region

The area surrounding Itapeva in São Paulo state is characterized by a diverse and relatively elevated landscape that forms part of the Brazilian Highlands. This region sits at an altitude of approximately 680 meters above sea level, placing it within the Serra da Mantiqueira mountain system. The topography consists of rolling hills, gentle slopes, and broader plateau areas that create a varied terrain pattern across the landscape. The local geography features a mix of undulating terrain with moderate elevation changes throughout the immediate vicinity. While the region does experience some mountainous characteristics due to its position within the highland system, much of the area around Itapeva consists of more manageable gradients rather than steep, dramatic slopes. This creates a landscape that includes both elevated ridgelines and valley systems, with numerous areas of relatively stable, gently sloping ground. The region's topography has been shaped by ancient geological processes and weathering patterns that have created a landscape with good drainage characteristics. The terrain includes areas of exposed bedrock interspersed with regions of deeper soil development, particularly in the valley areas and on gentler slopes where sediment accumulation has occurred over time.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Itapeva would be the plateau areas and gentle south-facing slopes that characterize much of the regional landscape. These areas offer the dual advantages of relatively stable ground conditions and favorable solar exposure throughout much of the year. The broader plateau regions, in particular, provide extensive areas of manageable terrain that would support large-scale development while minimizing the need for extensive grading or terrain modification. Areas with gentle to moderate slopes facing generally southward directions would be particularly well-suited for solar installations, as these orientations maximize solar collection potential in the Southern Hemisphere. The rolling hill country surrounding Itapeva includes numerous such locations where the natural topography creates favorable conditions without requiring significant landscape alteration. The valley floors and lower-lying areas, while potentially offering flatter terrain, may present challenges related to drainage, frost accumulation during winter months, and potential shading from surrounding elevated areas. Therefore, the elevated plateau areas and mid-slope locations would generally provide superior conditions for solar development. Agricultural areas that currently exist on the gentler slopes and plateau regions could potentially be suitable for solar development, particularly where the terrain is already partially cleared and accessible. These areas often benefit from existing infrastructure access while providing the stable, well-drained conditions that are ideal for large-scale solar installations. The region's overall topographical character, with its combination of elevation, moderate slopes, and plateau areas, creates numerous potential sites where large solar arrays could be established without encountering the extreme grading requirements or unstable ground conditions that might be found in more mountainous or heavily dissected terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
