Sapucaia, Brazil represents a reasonably good location for year-round solar energy generation, though it experiences notable seasonal variations in output. Located in the tropical region at coordinates -22.0408, -42.8139, this area benefits from consistent sunlight throughout most of the year, with seasons typically characterized by wet and dry periods rather than dramatic temperature changes.

Seasonal Solar Performance

The solar energy output at Sapucaia varies significantly across the seasons. Summer delivers the highest production at 6.39 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 4.90 kWh per day per kW, while autumn produces 5.19 kWh per day per kW. Winter represents the lowest production period at 4.24 kWh per day per kW of installed capacity. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors can significantly impact solar production in Sapucaia and require careful consideration during installation:

• Heavy rainfall and humidity: The tropical wet season brings intense precipitation that can reduce solar output and create moisture-related equipment issues
• Cloud cover: Frequent cloud formation during wet periods can substantially decrease solar irradiance
• Dust and debris accumulation: High humidity combined with occasional dry periods can lead to faster accumulation of dirt on solar panels
• Vegetation growth: The tropical climate promotes rapid plant growth that can create shading issues

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented. Installing panels with adequate drainage systems and slight tilting helps prevent water accumulation during heavy rains. Using corrosion-resistant mounting hardware and electrical components designed for high-humidity environments extends system lifespan. Regular cleaning schedules become crucial in this climate, with automated cleaning systems or easy-access designs facilitating maintenance. Proper spacing between panel rows prevents shading and allows for air circulation, which helps reduce moisture buildup. Vegetation management around the installation site should be planned from the outset, including regular trimming schedules and strategic placement away from fast-growing trees. Installing monitoring systems helps identify performance drops quickly, allowing for prompt maintenance responses during challenging weather periods.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

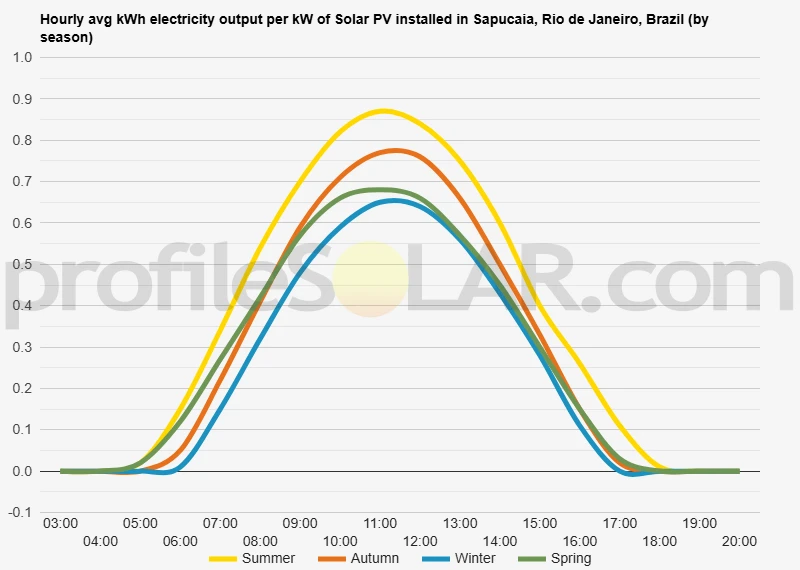

Solar output per kW of installed solar PV by season in Sapucaia, Rio de Janeiro

Seasonal solar PV output for Latitude: -22.0408, Longitude: -42.8139 (Sapucaia, Rio de Janeiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Sapucaia, Rio de Janeiro, Brazil

To maximize your solar PV system's energy output in Sapucaia, Rio de Janeiro, Brazil (Lat/Long -22.0408, -42.8139) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sapucaia, Rio de Janeiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sapucaia, Rio de Janeiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sapucaia, Rio de Janeiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sapucaia, Rio de Janeiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sapucaia, Rio de Janeiro, Brazil

Topographical Features of Sapucaia

Sapucaia sits within the mountainous terrain of Rio de Janeiro state, nestled in the Serra dos Órgãos region. The landscape around this location is characterized by rolling hills, steep-sided valleys, and dramatic elevation changes that are typical of Brazil's Atlantic coastal mountain ranges. The area features a complex topography with ridgelines running in various directions, creating a patchwork of slopes facing different compass orientations.

The immediate vicinity of Sapucaia displays significant elevation variations, with hills rising and falling across the landscape in an irregular pattern. Many of these slopes are quite steep, particularly those facing towards the Atlantic Ocean to the southeast. The terrain includes both forested hillsides and areas that have been cleared for agriculture or development over the decades.

Water features play an important role in shaping the local topography, with several small rivers and streams carving valleys through the mountainous terrain. These waterways have created narrow flood plains and gentler gradients in certain areas, breaking up the otherwise hilly landscape with occasional flatter sections.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader, south-facing slopes that offer relatively gentle gradients and minimal shading from adjacent hills. These areas would provide consistent solar exposure throughout the day while requiring less extensive grading and foundation work compared to steeper terrain.

Ridge tops and plateau areas, where they exist in the region, present excellent opportunities for solar development due to their elevated position above surrounding vegetation and structures that might otherwise cast shadows. These higher elevation sites also benefit from reduced atmospheric interference and often experience better air circulation for cooling solar panels.

The cleared agricultural lands scattered throughout the region could serve as prime candidates for solar installations, particularly those fields situated on gentle slopes with southern exposure. These areas typically have existing access roads and electrical infrastructure nearby, reducing development costs and complexity.

Areas near the valley floors, while potentially offering flatter terrain, may be less suitable due to increased risk of morning fog, potential flooding concerns, and shadow casting from surrounding hills during certain times of the day. The optimal solar sites would likely be found at intermediate elevations on the hillsides, where the terrain is manageable but still elevated enough to avoid these valley-related challenges.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
