Santa Bárbara, Brazil presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates -11.9177, -38.9921, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output at Santa Bárbara demonstrates strong year-round performance. Spring offers the highest production at 6.24 kWh per day per kW of installed solar capacity, closely followed by summer at 6.12 kWh per day. Autumn maintains solid output at 5.87 kWh per day, while winter shows the lowest but still substantial production at 4.94 kWh per day. The most productive months for solar generation occur during spring and summer, when the sun's angle is most favorable for this location. Even during the winter months, production remains relatively strong compared to many other global locations, making this site highly suitable for consistent solar energy generation throughout the year. For optimal performance, fixed solar panels at this location should be tilted at 11 degrees toward the north. This angle maximizes total year-round production by accounting for the sun's path throughout the seasons and the area's specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar production at Santa Bárbara, though the location remains highly favorable overall. The tropical climate brings distinct wet and dry seasons, with the wet season potentially reducing solar output due to increased cloud cover and frequent rainfall. Heavy rains can temporarily block sunlight and reduce energy generation during storm periods. High humidity levels, common in tropical regions, can lead to moisture buildup on solar panels, creating a film that reduces light transmission and decreases efficiency. Additionally, the warm, humid environment may accelerate dust and debris accumulation on panel surfaces.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce moisture buildup
• Use high-quality mounting systems with proper drainage to prevent water pooling around equipment
• Select panels with anti-reflective coatings and hydrophobic surfaces that help shed water and reduce soiling
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Consider automated cleaning systems or design installations for easy manual access

Proper electrical protection against moisture ingress becomes crucial in this humid environment. Using weatherproof inverters, junction boxes, and cabling rated for tropical conditions will ensure system longevity and consistent performance. Despite these considerations, Santa Bárbara's strong solar resource and relatively minor seasonal variation make it an highly suitable location for solar PV installations with proper planning and maintenance protocols.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

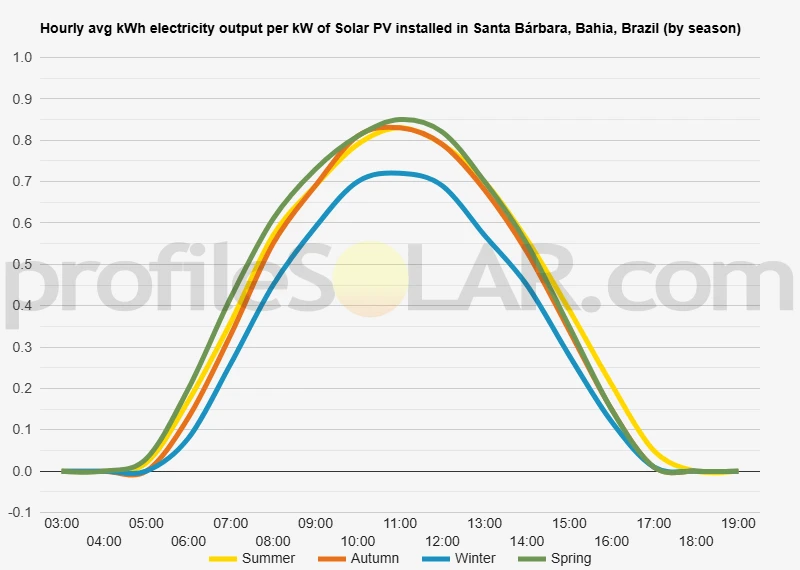

Solar output per kW of installed solar PV by season in Santa Bárbara, Bahia

Seasonal solar PV output for Latitude: -11.9177, Longitude: -38.9921 (Santa Bárbara, Bahia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Santa Bárbara, Bahia, Brazil

To maximize your solar PV system's energy output in Santa Bárbara, Bahia, Brazil (Lat/Long -11.9177, -38.9921) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Bárbara, Bahia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Bárbara, Bahia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	18° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Bárbara, Bahia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Bárbara, Bahia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Bárbara, Bahia, Brazil

Topographical Features of Santa Bárbara Region

Santa Bárbara is located in the northeastern state of Sergipe, Brazil, positioned in a region characterized by relatively gentle topography typical of the coastal plains and low-lying areas of the Brazilian Northeast. The landscape around this municipality consists primarily of undulating terrain with modest elevation changes, creating a favorable environment for large-scale development projects.

The area sits within the broader context of the Sergipe coastal plain, where the topography transitions gradually from the Atlantic coastal lowlands inland toward slightly higher elevations. The terrain features gentle rolling hills interspersed with flatter areas, with most of the land remaining below 200 meters in elevation. This creates extensive areas of relatively level ground that are well-suited for industrial and agricultural applications.

The region benefits from well-drained soils and stable geological conditions, with the underlying terrain consisting of sedimentary formations that provide solid foundations for construction. The landscape is punctuated by small valleys and drainage channels that flow toward the Atlantic Ocean, creating natural boundaries and corridors through the otherwise continuous terrain.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie in the flatter areas to the west and southwest of Santa Bárbara, where the terrain becomes increasingly level and open. These areas offer the dual advantages of minimal grading requirements and reduced installation costs due to the gentle topography.

The elevated plateaus and mesa-like formations scattered throughout the region present excellent opportunities for solar development. These slightly raised areas provide natural drainage, reducing concerns about flooding during the rainy season while maintaining the flat or gently sloping surfaces ideal for solar panel arrays. The consistent elevation of these plateaus also minimizes shading issues that can occur in more varied terrain.

Areas with southern and southeastern exposures on the gentle slopes surrounding Santa Bárbara would be particularly advantageous for solar installations. The natural orientation of many of these slopes aligns well with optimal solar collection angles, potentially reducing the need for complex tracking systems or extensive mounting infrastructure.

The region's proximity to existing electrical transmission infrastructure along major transportation corridors enhances the viability of large-scale solar projects. The relatively flat terrain facilitates the construction of access roads and transmission lines necessary for connecting solar installations to the broader electrical grid.

Agricultural areas with lower productivity soils could be repurposed for solar development, particularly in locations where the combination of flat terrain and existing cleared land reduces environmental impact and development costs. The open nature of much of the landscape around Santa Bárbara means that large contiguous areas suitable for utility-scale solar farms are readily available without significant topographical constraints.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
