Cantagalo, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 6.95 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 6.09 kWh per day per kW, while autumn drops to 5.32 kWh per day per kW. Winter presents the most challenging season for solar production, generating only 4.04 kWh per day per kW of installed capacity. This represents a substantial 42% reduction compared to summer output, which property owners should factor into their energy planning and storage requirements.

Optimal Installation Configuration

For maximum year-round energy production at Cantagalo, solar panels should be installed at a fixed tilt angle of 22 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, weighted by solar irradiance data to maximize total annual output.

Local Environmental Challenges

Several environmental and weather factors in the Cantagalo region could potentially impact solar energy production:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote dust accumulation on solar surfaces
• Seasonal rainfall patterns: Heavy rains during certain periods may temporarily reduce solar output but can also help naturally clean panels
• Temperature effects: Hot summer temperatures, while providing more sunlight, can actually decrease solar panel efficiency as photovoltaic cells perform less effectively in extreme heat
• Atmospheric haze: Subtropical regions often experience atmospheric moisture that can diffuse sunlight before it reaches solar panels

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove beneficial. Ensuring adequate ventilation around solar panels helps combat efficiency losses from high temperatures, while installing panels with proper drainage prevents water accumulation that could damage equipment or reduce performance. Regular cleaning schedules become particularly important in this humid environment where dust and organic matter accumulate more readily on panel surfaces. Choosing high-quality panels with anti-reflective coatings can help capture more diffuse light during hazy conditions. Ground-mounted systems should incorporate elevation to prevent flooding during heavy rains, while roof-mounted installations require robust waterproofing to handle the region's moisture levels. Using corrosion-resistant mounting hardware extends system longevity in the humid subtropical environment.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

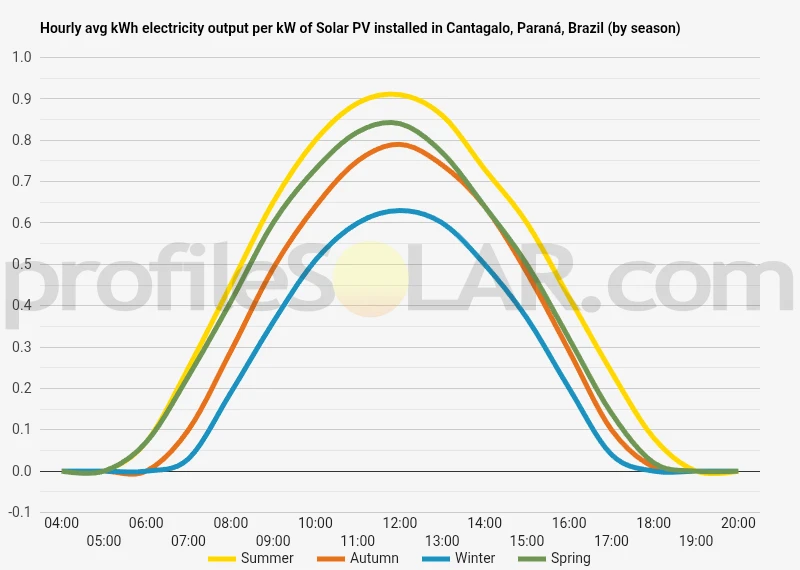

Solar output per kW of installed solar PV by season in Cantagalo, Paraná

Seasonal solar PV output for Latitude: -25.296, Longitude: -52.1499 (Cantagalo, Paraná, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Cantagalo, Paraná, Brazil

To maximize your solar PV system's energy output in Cantagalo, Paraná, Brazil (Lat/Long -25.296, -52.1499) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cantagalo, Paraná, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cantagalo, Paraná, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cantagalo, Paraná, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cantagalo, Paraná, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cantagalo, Paraná, Brazil

Topographical Features of the Cantagalo Region

The area around Cantagalo in Paraná state, Brazil, is characterized by rolling hills and undulating terrain typical of the southern Brazilian plateau. This region sits within the broader context of the Paraná Basin, where the landscape has been shaped by ancient geological processes and volcanic activity. The topography consists of gentle to moderate slopes interspersed with flatter valley areas and ridge systems that create a varied elevation profile across the landscape. The terrain around Cantagalo features a mix of agricultural lands, pastures, and remaining patches of Atlantic Forest vegetation. The elevation changes are generally gradual rather than dramatic, with hills rising and falling in a pattern that creates natural drainage systems flowing toward larger river valleys. This undulating character means that while there are no major mountain ranges or steep escarpments in the immediate vicinity, the land is rarely completely flat for extended distances.

Soil and Geological Characteristics

The underlying geology consists primarily of sedimentary rocks and basaltic formations from ancient lava flows, which have weathered over millions of years to create the fertile soils that make this region suitable for agriculture. The soil composition includes clay-rich areas as well as more sandy sections, with generally good drainage characteristics due to the sloping terrain. These geological features contribute to the stability of the ground, which is an important consideration for any large infrastructure development.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas around Cantagalo would be the broader valley floors and gentle hillsides with southern-facing slopes. These locations offer the best combination of relatively flat or gently sloping terrain that minimizes construction complexity while providing good solar exposure throughout the day. The valley areas tend to have fewer trees and are often already cleared for agricultural use, reducing environmental impact and land preparation costs. The elevated plateau areas with minimal slope variation would also be excellent candidates for solar farms, as they typically receive consistent solar exposure without significant shading from surrounding topographical features. These areas often have existing road access due to agricultural activities, which would facilitate construction and maintenance operations. Areas to avoid would include the steeper hillsides and heavily forested sections, as these would require extensive clearing and grading work. Additionally, low-lying areas prone to water accumulation during heavy rains would not be ideal for solar panel placement, as flooding could damage equipment and reduce operational efficiency. The existing agricultural infrastructure in the region, including access roads and electrical grid connections, makes many areas around Cantagalo particularly attractive for solar development. The combination of suitable topography, established transportation networks, and proximity to existing electrical infrastructure creates favorable conditions for large-scale renewable energy projects in this part of Paraná state.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
