Solar Energy Potential in Toledo, Brazil

Toledo, Brazil, situated at latitude -22.7063 and longitude -46.3878, offers promising conditions for solar PV energy generation throughout the year. Located in the tropics, this area benefits from relatively consistent sunlight patterns compared to locations at higher latitudes. The energy production varies somewhat with the seasons, with the highest output occurring during summer months when panels can generate approximately 6.62 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.08 kWh/day, while autumn yields 5.49 kWh/day. Winter represents the lowest production period, though it still delivers a respectable 4.83 kWh/day. For residents and businesses considering solar installation in Toledo, it's worth noting that for fixed panel installations, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and Toledo's specific geographic position.

Seasonal Considerations

The seasonal variation in Toledo's solar production follows a predictable pattern that aligns with the sun's position throughout the year. Summer (December through February) and spring (September through November) represent peak production periods, making these seasons particularly valuable for energy generation. While winter shows reduced output, the difference between summer and winter production is less dramatic than what would be experienced in non-tropical regions. This relative consistency makes Toledo an attractive location for solar energy investment, as the system will continue producing substantial energy even during less optimal months.

Potential Challenges and Solutions

Several environmental factors could potentially impact solar production in Toledo. The region experiences a rainy season which can temporarily reduce solar output due to cloud cover. Installing slightly larger systems than minimally required can help compensate for these reduced production periods. Dust and pollen accumulation represents another challenge in tropical areas like Toledo. Implementing regular cleaning schedules, especially before and after the dry season when dust accumulation peaks, can maintain optimal panel efficiency. Self-cleaning panel technologies or tilted installations that allow rainwater to naturally clean panels may also be beneficial. Heat can reduce panel efficiency, as solar PV systems typically lose productivity when operating at high temperatures. Using panels with better heat tolerance coefficients and ensuring adequate airflow beneath panels through proper mounting systems can mitigate this issue. For maximum energy capture in Toledo, a solar tracking system that adjusts panel orientation throughout the day could increase production beyond what fixed installations achieve. However, the consistent 21-degree north-facing tilt represents the best compromise for fixed installations balancing cost and performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

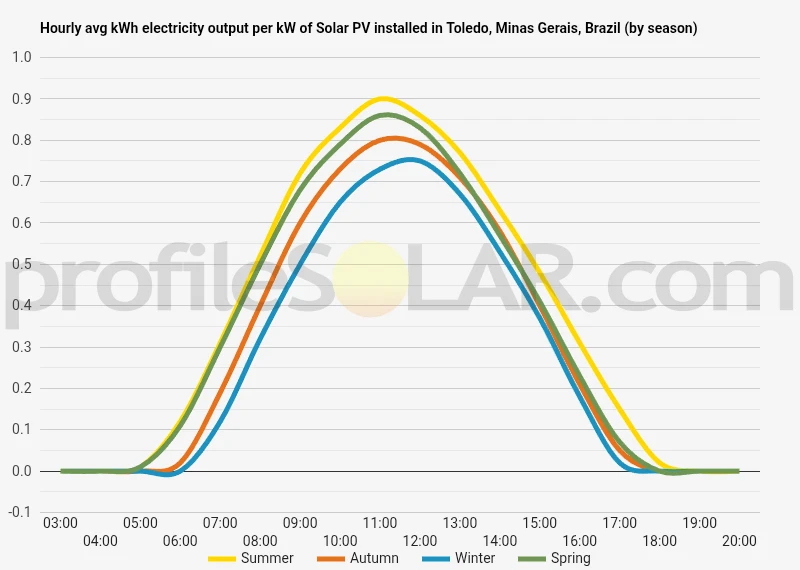

Solar output per kW of installed solar PV by season in Toledo, Minas Gerais

Seasonal solar PV output for Latitude: -22.7063, Longitude: -46.3878 (Toledo, Minas Gerais, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Toledo, Minas Gerais, Brazil

To maximize your solar PV system's energy output in Toledo, Minas Gerais, Brazil (Lat/Long -22.7063, -46.3878) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Toledo, Minas Gerais, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Toledo, Minas Gerais, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Toledo, Minas Gerais, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Toledo, Minas Gerais, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Toledo, Minas Gerais, Brazil

The topography around Toledo, Brazil, located at latitude -22.7063 and longitude -46.3878, is characterized by rolling hills and varied terrain typical of the southeastern region of Brazil. This area sits within the Atlantic Plateau, a geographic region that features undulating landscapes with moderate elevation changes. The terrain generally consists of gentle to moderate slopes interspersed with small valleys and watercourses. Toledo is situated in the state of Paraná, in a transition zone between the coastal plains and the higher inland plateaus. The elevation in this region typically ranges between 500 to 800 meters above sea level, creating a landscape that has been shaped by centuries of erosion and geological processes. The natural vegetation would historically have been a mix of Atlantic Forest and cerrado (tropical savanna) types, though much has been converted to agricultural use over time.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Toledo would be the gently sloping hillsides with southern, eastern, or western exposures. These locations offer good solar exposure throughout the day while minimizing the engineering challenges associated with very steep terrain. The moderate elevations in this region also benefit from clearer atmospheric conditions compared to lower-lying areas, which can experience more fog and humidity. Particularly promising are the slightly elevated plateaus and ridgelines that feature minimal shading from surrounding topography. These areas typically have good drainage, reducing concerns about flooding that could affect solar infrastructure. Additionally, land that has already been cleared for agriculture might present opportunities for solar development with minimal additional environmental impact.

Topographical Considerations

When evaluating specific sites for solar PV development, several topographical factors should be considered. Areas with slopes greater than 15-20% may present construction challenges and increased costs, though they are not necessarily unsuitable. North-facing slopes (in the Southern Hemisphere) receive the most consistent solar radiation throughout the year and would generally be preferred for maximizing energy production. The region's watershed patterns should also be considered, as valleys and low-lying areas may experience more cloud cover, fog, or flooding risks. The presence of rivers and streams creates natural divisions in the landscape that might affect site selection and design for large installations. The soil composition in the region—predominantly lateritic soils with varying clay content—influences ground stability for mounting systems. Areas with more stable soil conditions would reduce foundation requirements and associated costs for large-scale installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
