São Joaquim, Brazil, located in the Southern Sub Tropics at coordinates -28.3019, -50.0023, presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Energy Production

The solar energy output at São Joaquim varies significantly throughout the year. Summer delivers the strongest performance at 6.88 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 5.80 kWh per day per kW, while autumn drops to 4.75 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.54 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations at São Joaquim will generate nearly twice as much energy during peak summer months compared to winter. The location experiences its best solar generation period from approximately October through March, with December and January likely representing peak production months.

Optimal Panel Configuration

For maximum year-round energy production at São Joaquim, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles against actual solar irradiance data for the location.

Local Environmental Challenges

Several environmental and weather factors at São Joaquim can significantly impact solar energy production and require careful consideration during installation planning. High Altitude and Temperature Extremes: São Joaquim sits at approximately 1,360 meters above sea level, making it one of Brazil's highest cities. This elevation brings frequent frost and occasional snow during winter months, which can temporarily reduce solar panel efficiency and potentially damage equipment not designed for cold weather conditions. Fog and Cloud Cover: The region experiences frequent fog formation, particularly during cooler months, due to its mountainous terrain and elevation. Dense fog can substantially reduce solar irradiance reaching the panels, contributing to the lower winter production figures. Hail Risk: The area's climate patterns can produce severe weather events including hailstorms, which pose a direct physical threat to solar panel surfaces and can cause costly damage to installations.

Preventative Measures for Enhanced Performance

Several installation strategies can help mitigate these local challenges:

• Cold-Weather Equipment: Use solar panels and inverters specifically rated for low-temperature operation and thermal cycling to handle the frequent freeze-thaw cycles
• Reinforced Mounting: Install robust mounting systems designed to handle snow loads and prevent ice damming around panel edges
• Hail-Resistant Panels: Select solar panels with tempered glass rated for impact resistance and consider protective screening in particularly hail-prone areas
• Proper Drainage: Ensure installation design allows for adequate drainage to prevent ice formation and water pooling
• Regular Maintenance Access: Design installations with safe access for cleaning and snow removal during winter months

Despite these challenges, São Joaquim remains viable for solar energy generation, particularly given Brazil's favorable net metering policies and the strong summer production that can offset winter shortfalls. The key to success lies in proper equipment selection and installation techniques that account for the unique high-altitude subtropical climate conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

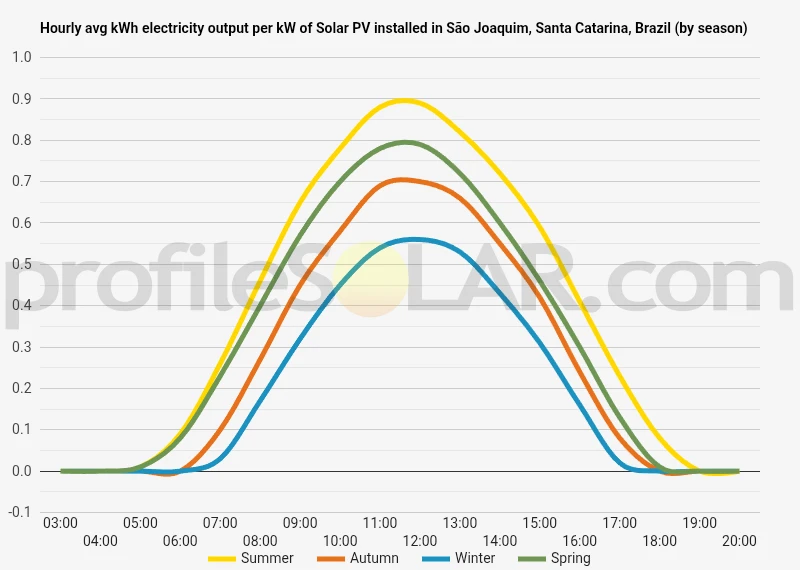

Solar output per kW of installed solar PV by season in São Joaquim, Santa Catarina

Seasonal solar PV output for Latitude: -28.3019, Longitude: -50.0023 (São Joaquim, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in São Joaquim, Santa Catarina, Brazil

To maximize your solar PV system's energy output in São Joaquim, Santa Catarina, Brazil (Lat/Long -28.3019, -50.0023) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for São Joaquim, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in São Joaquim, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in São Joaquim, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in São Joaquim, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around São Joaquim, Santa Catarina, Brazil

Topographical Features Around São Joaquim

São Joaquim sits in the heart of Santa Catarina's mountainous region, positioned at an elevation of approximately 1,360 meters above sea level on the Serra Geral plateau. This elevated location places the city among the highest settlements in southern Brazil, surrounded by rolling hills and steep escarpments that characterize the Atlantic Plateau's interior landscape. The terrain around São Joaquim features a complex mixture of undulating highlands, deep valleys, and rocky outcrops. The region forms part of the greater Serra do Mar mountain system, with the landscape shaped by ancient volcanic activity and millions of years of erosion. The topography transitions from relatively gentle slopes on the plateau itself to dramatic cliff faces and steep-sided valleys where the plateau drops toward the coastal lowlands. Local relief varies considerably within short distances, creating a patchwork of elevated ridges, sheltered valleys, and exposed highland areas. The surrounding countryside displays typical characteristics of the Brazilian Highlands, with elevations ranging from about 800 meters in the lower valleys to over 1,800 meters on the highest peaks. Rocky granite and basalt formations are common throughout the area, often creating natural barriers and defining watershed boundaries.

Climate and Weather Patterns

The high altitude location creates a unique microclimate for this latitude in Brazil, with significantly cooler temperatures than coastal areas. São Joaquim experiences a subtropical highland climate, characterized by mild summers and notably cold winters that can include frost and occasional snowfall. This elevation-induced cooling effect makes the region distinct from most other areas in Santa Catarina state. Cloud formation and fog are frequent occurrences, particularly during winter months when temperature inversions trap moisture in the valleys. The mountainous terrain influences local weather patterns, creating orographic effects that can result in varying conditions across relatively small geographic areas. Wind patterns are also affected by the topography, with exposed ridges experiencing stronger and more consistent airflow than sheltered valley locations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around São Joaquim would be the elevated plateau areas with southern and southeastern exposures. These locations offer several advantages including reduced atmospheric interference due to altitude, minimal shading from surrounding terrain features, and generally stable ground conditions for mounting systems. The gently sloping highland areas immediately south and east of the city present particularly favorable conditions. These zones typically feature gradual inclines between 2-8 degrees, which can enhance solar collection efficiency while remaining manageable for construction and maintenance activities. The stable granite bedrock underlying much of these areas provides excellent foundation conditions for large-scale installations. Areas along the main plateau ridges running roughly north-south would also be well-suited for solar development. These elevated positions minimize the risk of shading from adjacent hills while taking advantage of the clearer atmospheric conditions found at higher altitudes. The consistent elevation across these ridge systems allows for uniform installation design and simplified electrical infrastructure. Valley floors and steep-sided terrain should generally be avoided for large installations due to potential shading issues, drainage concerns, and the increased complexity of construction on unstable slopes. The rocky escarpments and cliff areas, while offering excellent exposure, present significant engineering challenges that would make development costly and potentially hazardous. Agricultural areas on the plateau's gentler slopes could potentially accommodate solar installations while maintaining some farming activities, particularly in locations where the current land use is extensive grazing rather than intensive crop production. These areas often have existing road access and electrical infrastructure, reducing development costs and environmental impact.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
