The location at Ancaster, Ontario, Canada is decent for generating energy via solar PV throughout the year, though it's not ideal. The energy output varies significantly with the seasons. During summer and spring, you can expect a good amount of electricity generation - 6.16kWh/day and 5.25kWh/day respectively per kW of installed solar. However, in autumn and winter, the output drops to 3.10kWh/day and 1.81kWh/day respectively per kW of installed solar.

Hence, if you're planning to generate solar power in this region, summer would be the most productive time followed by spring due to longer daylight hours and more direct sunlight exposure during these seasons.

To maximize your total year-round production from your Solar PV system at this location, it is suggested that you tilt your panels at an angle of 37 degrees facing South for a fixed panel installation.

However there are some local factors that could potentially impede solar production at Ancaster:

1) Weather: Being located in Northern Temperate Zone means it experiences cold winters with shorter days reducing potential sunlight exposure for panels.
2) Snowfall: Heavy snowfall can cover up solar panels reducing their effectiveness.
3) Cloud Cover: Overcast conditions are common which may reduce sunlight intensity reaching the panels.

These issues can be mitigated by taking certain preventative measures during installation:

1) Panel Placement: Install them where they will receive maximum sun exposure throughout the day and year.
2) Regular Maintenance: Regular cleaning especially after snowfall or heavy rain ensures efficient functioning.
3) Use Tilt Mounts: Adjustable tilt mounts allow changing panel angles according to seasonal variations ensuring optimal sun exposure all through the year.

In conclusion while there may be some impediments due to weather conditions particularly in winter months; with proper installation techniques like correct tilting angle & regular maintenance; Ancaster can still offer reasonable productivity from a Solar PV system throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

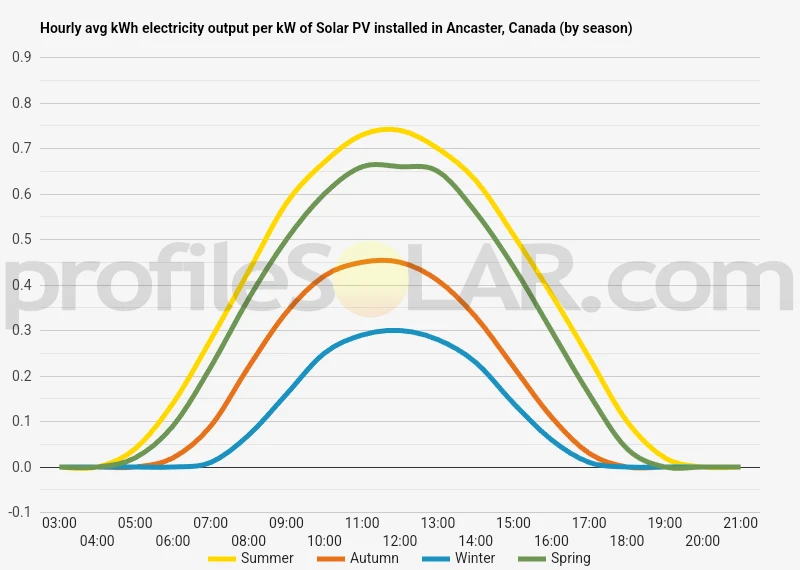

Solar output per kW of installed solar PV by season in Ancaster

Seasonal solar PV output for Latitude: 43.1842, Longitude: -79.9904 (Ancaster, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.16kWh/day in Summer.

Average 3.10kWh/day in Autumn.

Average 1.81kWh/day in Winter.

Average 5.25kWh/day in Spring.

Ideally tilt fixed solar panels 37° South in Ancaster, Canada

To maximize your solar PV system's energy output in Ancaster, Canada (Lat/Long 43.1842, -79.9904) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 43.1842, Longitude: -79.9904, the ideal angle to tilt panels is 37° South

Seasonally adjusted solar panel tilt angles for Ancaster, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ancaster, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ancaster, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ancaster, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ancaster, Canada

Ancaster is located in the southern part of Ontario, Canada. The topography of Ancaster can be described as a mix of flat plains and gentle rolling hills. It is situated on the Niagara Escarpment which provides some elevation changes throughout the area. This region is characterized by fertile soil suitable for agriculture and mixed forests.

When considering areas for large-scale solar photovoltaic (PV) installations, several factors need to be considered including sunlight availability, land use restrictions, proximity to power grids, and local weather conditions.

Given these considerations:

1. Open Flat Areas: Large scale solar PV installations require substantial amounts of open space that receive high levels of sunlight throughout the year. The flatter regions around Ancaster could potentially serve this purpose.

2. Farmlands: The agricultural lands in this region could also be suitable if dual-use farming practices are implemented where crops grow underneath solar panels.

3. Unused Industrial Land: Any unused or abandoned industrial lands around Ancaster may also be ideal locations for large scale solar PV projects due to their close proximity to existing infrastructure like roads and power lines.

4. Rooftops: Large commercial or industrial buildings with big rooftops are also potential sites for installing solar panels without occupying additional ground space.

However, comprehensive feasibility studies would have to be done before deciding on any location since it's not only about geographical suitability but also involves economic viability, environmental impact assessment and social acceptance.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
