Ardrossan, Alberta, Canada, located at latitude 53.5196° north and longitude 113.1033° west, offers varying potential for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar energy production.

Seasonal Solar Production

Solar panels in Ardrossan perform best during summer months, generating an average of 6.21 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.19 kWh/day per kW installed. Energy production drops considerably during autumn to 2.61 kWh/day, while winter sees the lowest output at just 1.51 kWh/day per kW installed.

This pattern creates a substantial difference between summer and winter production, with summer generating more than four times the electricity compared to winter months. May through August represent the prime solar harvesting period, making these months ideal for offsetting higher electricity consumption or for banking excess production if net metering is available.

Optimal Panel Installation

For fixed panel installations in Ardrossan, Alberta, the ideal tilt angle to maximize year-round solar production is 46 degrees facing South. This angle has been calculated to optimize annual energy harvest by accounting for the location's latitude and seasonal solar paths across the sky.

Environmental and Weather Considerations

Several environmental factors can impact solar production in Ardrossan:

• Snow accumulation during winter months can significantly reduce panel output unless regularly cleared
• Cold temperatures, while generally beneficial for panel efficiency, can create issues with equipment durability
• Potential for hail in summer storms poses a risk to panel integrity

To mitigate these challenges, solar installations in Ardrossan should incorporate several preventative measures. Panels should be installed with sufficient tilt to help shed snow and with reinforced glass rated for hail resistance. A maintenance plan for snow removal during winter months is advisable to maintain even minimal production during this low-yield season. Cold-rated components and proper insulation for inverters and electrical connections will ensure system reliability during temperature extremes.

The substantial seasonal variation suggests that Ardrossan installations might benefit from slightly over-sizing systems to compensate for winter's limited production, especially if annual rather than seasonal energy targets must be met.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

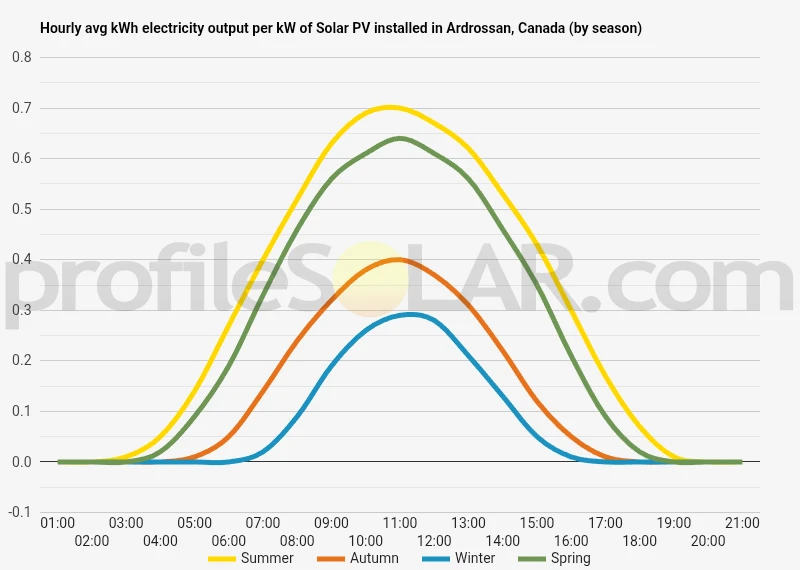

Solar output per kW of installed solar PV by season in Ardrossan

Seasonal solar PV output for Latitude: 53.5196, Longitude: -113.1033 (Ardrossan, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 46° South in Ardrossan, Canada

To maximize your solar PV system's energy output in Ardrossan, Canada (Lat/Long 53.5196, -113.1033) throughout the year, you should tilt your panels at an angle of 46° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ardrossan, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ardrossan, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 46° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
37° South in Summer	56° South in Autumn	67° South in Winter	46° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ardrossan, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ardrossan, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ardrossan, Canada

The topography around Ardrossan, Alberta, is characterized by gently rolling plains typical of the Edmonton region's prairie landscape. Located in Strathcona County, east of Edmonton, this area sits within the Aspen Parkland ecoregion, a transitional zone between the northern boreal forest and the southern grasslands. The terrain features subtle undulations rather than dramatic elevation changes, with an average elevation of approximately 700 meters above sea level. The landscape surrounding Ardrossan consists primarily of agricultural fields interspersed with small woodlots, wetlands, and scattered aspen groves. These natural features create a mosaic pattern across the otherwise relatively flat terrain. The North Saskatchewan River valley lies to the northwest, representing the most significant topographical feature in the broader region, though it's several kilometers from Ardrossan proper.

Solar PV Potential Areas

For large-scale solar photovoltaic development near Ardrossan, the most suitable areas would be the extensive agricultural lands that dominate the local landscape. These open, relatively flat fields offer several advantages for solar installations. The gently rolling nature of the terrain provides good drainage while not being so steep as to complicate construction or increase erosion risk. The agricultural lands south and east of Ardrossan present particularly promising opportunities. These areas feature large, contiguous parcels with minimal shading from trees or structures. The slight south-facing slopes that occasionally occur in this rolling landscape would be especially advantageous for solar panel placement, as they naturally optimize the angle of solar exposure. Areas to avoid would include the scattered wetlands and water bodies, which serve important ecological functions and would present construction challenges. Similarly, the more heavily wooded sections would require clearing, potentially increasing both environmental impact and project costs. The region's relatively stable soil conditions, predominantly consisting of chernozemic soils (black soil) developed on glacial till, provide good foundation potential for solar infrastructure. These soils have adequate bearing capacity for the relatively light loads imposed by solar panel mounting systems. Access to existing infrastructure is another consideration favoring development in this area. Proximity to electrical transmission corridors and the regional road network would reduce interconnection costs for new solar facilities. The relatively close distance to Edmonton's metropolitan area means potential access to significant electricity demand centers without excessive transmission distances.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
