Athabasca, Alberta, Canada is a location with notable seasonal variations in solar energy production potential. Located in the Northern Temperate Zone, this area experiences significant fluctuations in solar electricity generation throughout the year.

Seasonal Solar Production

The solar energy potential in Athabasca varies dramatically across seasons. Summer stands out as the most productive period, generating approximately 6.00 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 5.09 kWh/day per kW installed. There's a substantial drop in autumn, which produces only 2.39 kWh/day, while winter performance is particularly low at just 1.26 kWh/day per installed kW.

This pattern creates a clear bimodal distribution, with excellent production during spring and summer months (approximately March through August), followed by significantly reduced output during autumn and winter (September through February).

Optimal Panel Installation

For fixed solar panel installations in Athabasca, Alberta, the ideal tilt angle to maximize year-round energy production is 47 degrees facing South. This angle has been calculated to optimize the total annual energy harvest based on the location's specific latitude and solar patterns.

Environmental and Weather Challenges

Several significant factors can impede solar production at this northern location:

• Snow accumulation during winter months can completely cover panels, reducing or eliminating production during an already low-yield season
• Cold temperatures, while generally beneficial for panel efficiency, can create issues with equipment functioning and durability
• Short winter days combined with low sun angles significantly reduce winter production potential
• Potential for forest fire smoke during summer months, which can temporarily reduce solar irradiance

Preventative Measures

To maximize production despite these challenges, several installation approaches are recommended:

• Install panels at steeper angles than the optimal 47 degrees if winter production is particularly important, as this helps shed snow more effectively
• Consider including snow removal systems or regular manual clearing procedures in maintenance plans
• Use cold-weather rated equipment and components designed for northern climates
• Implement microinverters or power optimizers to minimize the impact of partial shading from snow
• Consider dual-axis tracking systems which can significantly increase production, especially during spring and fall

Given these considerations, Athabasca represents a location where solar energy is highly viable during spring and summer but faces significant challenges during autumn and especially winter months. This seasonal variability should be factored into any renewable energy planning for this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

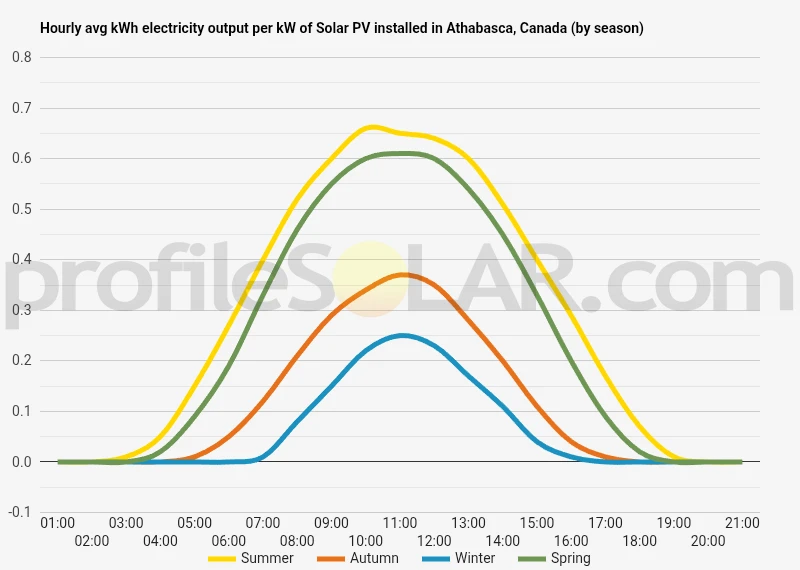

Solar output per kW of installed solar PV by season in Athabasca

Seasonal solar PV output for Latitude: 54.7233, Longitude: -113.2858 (Athabasca, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 47° South in Athabasca, Canada

To maximize your solar PV system's energy output in Athabasca, Canada (Lat/Long 54.7233, -113.2858) throughout the year, you should tilt your panels at an angle of 47° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Athabasca, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Athabasca, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 47° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
38° South in Summer	57° South in Autumn	68° South in Winter	47° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Athabasca, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Athabasca, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Athabasca, Canada

The landscape around Athabasca, Canada presents a diverse topographical profile characteristic of Alberta's transition zone between prairie and boreal forest. Situated in central Alberta approximately 145 kilometers north of Edmonton, Athabasca sits within a region defined by gently rolling hills, river valleys, and mixed woodlands. The town itself is positioned along the banks of the Athabasca River, which has carved a significant valley through the surrounding terrain. The area features modest elevation changes, with the terrain gradually rising from the river valley floor. The elevation typically ranges between 500 to 600 meters above sea level throughout the region. This moderately undulating landscape includes scattered wetlands, small lakes, and agricultural clearings interspersed among forested sections. The Athabasca River serves as the dominant geographical feature, flowing northward through the area on its journey toward Lake Athabasca and eventually the Arctic Ocean.

Soil and Surface Characteristics

The soils around Athabasca primarily consist of gray luvisols and organic soils, reflecting the region's boreal forest influence. These soils have developed under mixed forest vegetation and typically feature a layer of leaf litter over mineral soil horizons. In wetland areas, organic peat deposits are common. The combination of these soil types and the region's modest slopes has created a landscape that balances water retention with adequate drainage.

Vegetation Cover

The natural vegetation surrounding Athabasca consists predominantly of mixed boreal forest, featuring species such as white spruce, black spruce, trembling aspen, balsam poplar, and white birch. This forest cover varies in density, with more open areas occurring where agricultural development has taken place. The transition between forested and cleared lands creates a patchwork pattern across the landscape.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) development near Athabasca, several topographical factors must be considered. The most suitable areas would be: Agricultural clearings south of Athabasca present some of the best opportunities for solar development. These locations typically feature relatively flat terrain with minimal forest cover that would otherwise create shading issues. The gently rolling agricultural lands provide sufficient drainage while minimizing the need for extensive grading during site preparation. Elevated plateaus and ridges to the east and west of the Athabasca River valley offer another category of promising sites. These higher elevation areas potentially receive less fog and mist compared to the river valley floor, which can occasionally experience reduced visibility due to its lower elevation and proximity to water. The moderate slopes of these plateaus, particularly those with southern aspects, would maximize solar exposure throughout the day. Reclaimed industrial or mining sites in the broader region could also present opportunities for solar development. These areas have often already been cleared and graded, potentially reducing site preparation costs. However, soil stability and potential contamination issues would need to be assessed.

Topographical Constraints

Several topographical features around Athabasca present challenges for large-scale solar development. The river valley itself, while scenic, creates significant shading issues during morning and evening periods, particularly in winter months when the sun angle is lower. Additionally, the numerous wetlands and small lakes scattered throughout the region would need to be avoided to prevent environmental impacts and additional construction costs. Areas with dense forest cover would require substantial clearing, increasing both the environmental impact and initial development costs. The northern boreal forest ecosystem is sensitive to disturbance, so development would need to be balanced with conservation priorities. The region's moderately undulating terrain generally doesn't present severe slope constraints for solar development, though some localized areas might require grading to achieve optimal panel orientation. When considering the entire surrounding region, the areas south of Athabasca with existing agricultural clearings likely present the most favorable balance of topographical characteristics for large-scale solar PV development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
