Banff, Alberta, Canada, situated at latitude 51.1751 and longitude -115.5752, presents a mixed picture for year-round solar energy generation. Located in the Northern Temperate Zone, this picturesque mountain town experiences significant seasonal variations in solar potential.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Banff, Alberta, with an impressive daily output of 6.48 kWh per kW of installed solar capacity. Spring follows closely, yielding 5.15 kWh/day. However, the colder months see a dramatic decrease in solar production. Autumn generates a modest 2.83 kWh/day, while winter plummets to a mere 1.60 kWh/day.

These figures highlight the stark contrast between Banff's solar potential in summer and winter. The long, sunny days of summer make it an ideal time for solar energy production, while the short, often overcast winter days present significant challenges.

Optimal Panel Installation

To maximize year-round solar production in Banff, Alberta, fixed solar panels should be tilted at a 44-degree angle facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the high summer sun with the low winter sun angle.

Environmental Challenges

Several environmental factors can impede solar production in Banff:

1. Heavy snowfall: Banff receives significant snowfall, which can cover solar panels and reduce efficiency.
2. Mountain shadows: The surrounding Rocky Mountains can cast long shadows, potentially reducing sunlight exposure in certain areas.
3. Forest fire smoke: During summer, smoke from forest fires can reduce solar irradiance.

Mitigation Strategies

To address these challenges, several preventative measures can be taken:

• Install panels at a steeper angle to encourage snow sliding off
• Use snow-shedding coatings on panels
• Implement a regular panel cleaning schedule
• Conduct thorough site assessments to minimize shadow impacts
• Consider tracking systems to maximize sun exposure

While Banff's location presents some challenges for year-round solar energy production, careful planning and appropriate mitigation strategies can help maximize the potential of solar PV systems in this beautiful mountain setting.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

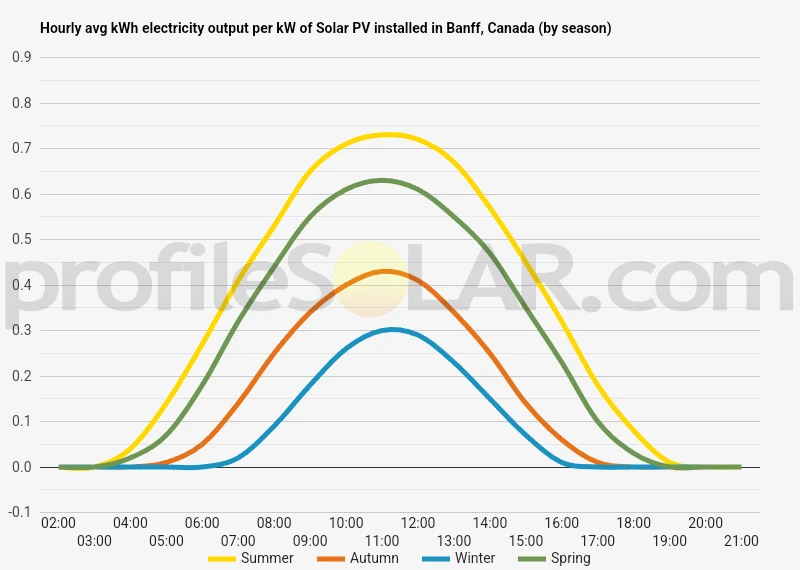

Solar output per kW of installed solar PV by season in Banff

Seasonal solar PV output for Latitude: 51.1751, Longitude: -115.5752 (Banff, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 44° South in Banff, Canada

To maximize your solar PV system's energy output in Banff, Canada (Lat/Long 51.1751, -115.5752) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Banff, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Banff, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° South in Summer	54° South in Autumn	64° South in Winter	44° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Banff, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Banff, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Banff, Canada

Banff, located in the Canadian province of Alberta, is nestled within the majestic Rocky Mountains. The topography surrounding this picturesque town is characterized by dramatic mountain peaks, deep valleys, and pristine alpine lakes. The landscape is a result of millions of years of geological activity, including glaciation, which has carved out the rugged terrain we see today. The town itself sits at an elevation of approximately 1,400 meters (4,600 feet) above sea level, surrounded by towering mountains that reach heights of over 3,000 meters (9,800 feet). Mount Rundle, Cascade Mountain, and Sulphur Mountain are some of the prominent peaks visible from the town center. These mountains create a stunning backdrop and contribute to the area's popularity as a tourist destination. Valleys carved by ancient glaciers and rivers weave through the mountainous terrain, creating natural corridors that are home to diverse ecosystems. The Bow River, which flows through Banff, has played a significant role in shaping the local landscape, carving out a wide valley floor and depositing rich sediments.

Potential for Large-Scale Solar PV

While Banff and its immediate surroundings may not be ideal for large-scale solar photovoltaic (PV) installations due to the mountainous terrain and protected status of much of the land, there are areas in the broader region that could be more suitable: The prairies to the east of Banff, as you move away from the Rocky Mountains, offer more potential for large-scale solar PV projects. These areas have flatter terrain, which is advantageous for solar panel installation. The regions around Calgary and further east into Saskatchewan provide vast open spaces that receive ample sunlight throughout the year. South of Banff, towards the U.S. border, there are areas with a combination of favorable factors for solar energy production. The region around Lethbridge, for instance, experiences more sunny days annually and has a relatively flat topography, making it more suitable for large solar farms. It's important to note that while these areas may be more topographically suited for solar PV installations, other factors such as land use regulations, environmental considerations, and proximity to power grids would also need to be taken into account when planning large-scale solar projects.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
