Belle River, Ontario, Canada, located at latitude 42.3, longitude -82.7167 in the Northern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production that are important to consider when planning a solar installation.

Seasonal Solar Production

Solar energy generation at Belle River follows a predictable seasonal pattern. Summer stands out as the most productive season, yielding an average of 6.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.49kWh/day per installed kW. Production decreases substantially in autumn to 3.22kWh/day, while winter sees the lowest output at just 1.67kWh/day per kW installed.

This seasonal variation means Belle River residents can expect nearly four times more solar energy production in summer compared to winter months. Spring and summer combined represent the ideal time frame for solar energy generation, accounting for approximately 70% of the annual production potential.

Optimal Panel Installation

For fixed solar panel installations in Belle River, Ontario, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This specific angle has been calculated by analyzing daily solar elevation angles at this latitude, weighted according to the daily PV potential, and accounting for Earth's elliptical orbit.

Using this optimal angle helps capture more energy during spring and fall seasons, while still maximizing summer production. Though winter output remains relatively low regardless of panel angle, the 36-degree tilt helps capture the maximum available sunlight during shorter winter days.

Environmental Considerations

Several environmental factors in Belle River can impact solar production. Being located near Lake St. Clair and Lake Erie, the area experiences significant snowfall during winter months, which can temporarily cover panels and reduce output. Installing panels at the steeper 36-degree angle helps shed snow more efficiently than flatter installations.

The region also experiences frequent cloud cover during late autumn and winter, contributing to the lower production figures in these seasons. Additionally, Belle River can experience fog conditions due to its proximity to the Great Lakes, particularly during spring and fall transitional periods.

To mitigate these challenges, preventative measures include:

• Installing panels with snow-shedding features or frames
• Implementing occasional panel cleaning protocols, especially after heavy snowfalls
• Using microinverters or power optimizers to minimize production losses when some panels are partially covered
• Considering slightly oversizing the system to compensate for the lower winter production if year-round energy independence is desired

Despite these seasonal challenges, Belle River's location still provides sufficient solar resources to make PV installations economically viable, particularly if designed with these local factors in mind.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

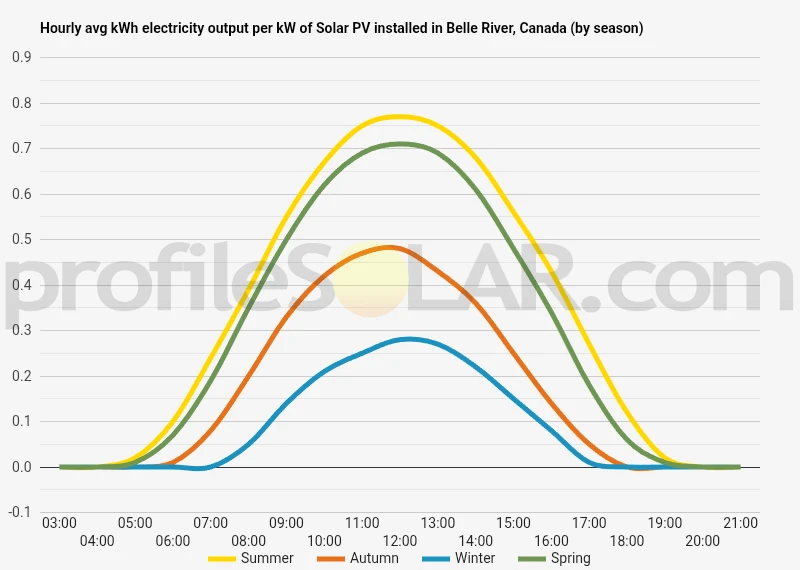

Solar output per kW of installed solar PV by season in Belle River

Seasonal solar PV output for Latitude: 42.3, Longitude: -82.7167 (Belle River, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Belle River, Canada

To maximize your solar PV system's energy output in Belle River, Canada (Lat/Long 42.3, -82.7167) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Belle River, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Belle River, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Belle River, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Belle River, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Belle River, Canada

Belle River, Canada, situated at 42.3° latitude and -82.7167° longitude, is located in the southwestern part of Ontario, near Lake St. Clair. The topography of this region is predominantly characterized by flat to gently rolling terrain, which is typical of the Great Lakes Lowlands physiographic region. This area was shaped by glacial activity during the last ice age, resulting in relatively level land with minimal elevation changes across the landscape. The terrain around Belle River consists mainly of agricultural plains with an average elevation of approximately 180-200 meters above sea level. The flatness of this region is a result of glacial deposits and the subsequent action of ancient glacial lakes that covered the area thousands of years ago. These geological processes left behind fertile soils that have made the region excellent for farming, with vast open spaces of cultivated land stretching across the horizon.

Surrounding Topography

To the north of Belle River lies Lake St. Clair, which influences the local topography with its shoreline and associated wetlands. The transition from land to lake creates a gradual slope toward the water body, though this change in elevation is quite subtle. The lake's presence has historically shaped the drainage patterns in the area, with several small streams and drainage channels flowing northward toward Lake St. Clair. To the south and east of Belle River, the land continues its generally flat character, with occasional slight undulations. These minor variations in the landscape are often imperceptible to the casual observer but can be identified through detailed topographic mapping. The region lacks significant hills or valleys that would create major shadows or obstruct the sky view.

Optimal Areas for Solar PV Development

The flat, open terrain surrounding Belle River presents excellent opportunities for large-scale solar photovoltaic (PV) development. The most suitable areas would be the agricultural lands to the south and east of Belle River, where several favorable factors converge: The predominantly flat terrain requires minimal grading for solar array installation, reducing construction costs and environmental disruption. These agricultural plains offer large, contiguous parcels of land that could accommodate utility-scale solar facilities with minimal fragmentation of the arrays. Areas slightly elevated from potential flood zones would be particularly advantageous for solar development. While the entire region is relatively flat, even minor elevation advantages can provide better drainage and reduce the risk of flooding that might damage solar equipment or interrupt operation. The agricultural lands away from wetlands and protected natural areas would present fewer environmental constraints for development. Sites with existing access to roads and transmission infrastructure would further enhance the suitability for solar PV deployment, reducing the need for extensive new infrastructure development. Locations that maintain a respectful distance from residential areas while remaining close enough to existing electrical infrastructure would balance community considerations with practical development requirements. The optimal sites would be those that minimize the conversion of prime agricultural land while maximizing solar generation potential. The generally unobstructed horizon throughout this region means that solar panels would have excellent exposure to the sun throughout the day, with minimal topographical features casting shadows that would reduce efficiency. This characteristic of the Belle River area makes it particularly conducive to solar energy capture compared to more varied terrain found in other parts of Ontario.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
