Caledonia, Ontario, Canada presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone position at coordinates 43.0649, -79.9359.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.11 kWh per day per kW of installed capacity, making it the prime solar generation season. Spring follows as the second-best period with 5.16 kWh per day per kW, offering excellent energy production as daylight hours increase and solar angles improve. Autumn sees a notable decline to 3.00 kWh per day per kW as the sun's path lowers and weather patterns shift. Winter presents the most challenging conditions with only 1.72 kWh per day per kW, representing less than 30% of summer output levels.

Optimal Installation Configuration

For maximum year-round energy production at Caledonia, Ontario, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle optimizes the balance between seasonal sun positions throughout the year, accounting for the Earth's elliptical orbit and varying solar elevation angles at this latitude.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in this region:

• Snow accumulation during winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission
• Frequent cloud cover during autumn and winter periods
• Heavy rainfall and storms can temporarily reduce output
• Dust and debris accumulation on panel surfaces

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels at steeper angles (closer to 45-50 degrees) to promote natural snow shedding
• Ensure adequate spacing between panel rows to prevent snow buildup and shading
• Use anti-reflective coatings that also resist ice formation
• Install heating elements or automated snow removal systems for critical installations
• Position panels away from trees and structures that might drop debris
• Design accessible mounting systems for safe cleaning and maintenance

Regular maintenance becomes particularly important during winter months, when even partial snow coverage can dramatically reduce energy output. The significant seasonal variation means that battery storage or grid-tied systems become essential for consistent year-round energy supply, as winter production alone would be insufficient for most energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

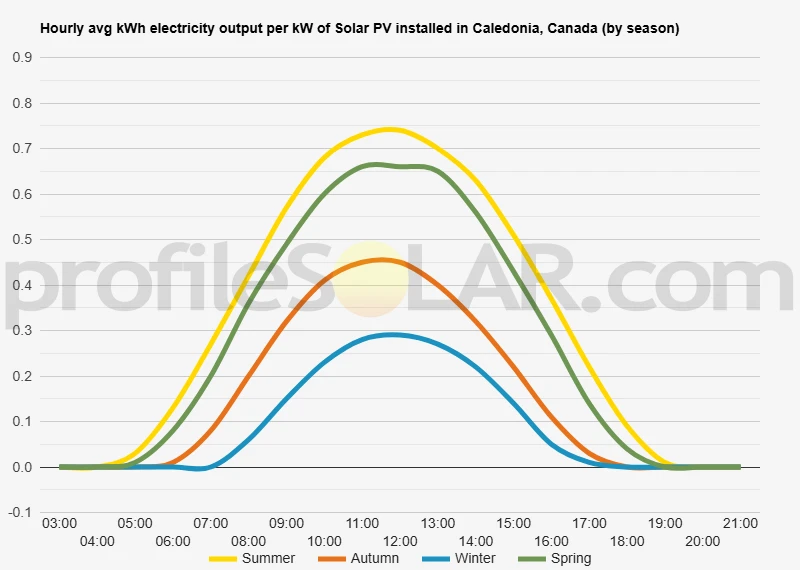

Solar output per kW of installed solar PV by season in Caledonia

Seasonal solar PV output for Latitude: 43.0649, Longitude: -79.9359 (Caledonia, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Caledonia, Canada

To maximize your solar PV system's energy output in Caledonia, Canada (Lat/Long 43.0649, -79.9359) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caledonia, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caledonia, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caledonia, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caledonia, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caledonia, Canada

Topographical Features of the Caledonia Region

The area surrounding Caledonia, Ontario sits within the relatively flat to gently rolling terrain characteristic of southwestern Ontario's agricultural heartland. This region forms part of the broader Great Lakes Lowlands physiographic region, where the landscape has been shaped by ancient glacial activity and proximity to Lake Erie, located approximately 40 kilometers to the south.

The immediate topography around Caledonia features predominantly level to slightly undulating farmland, with elevation changes typically ranging from 200 to 250 meters above sea level. The Grand River flows through the community, creating a modest river valley that adds some gentle relief to the otherwise relatively uniform landscape. Small creeks and tributaries have carved shallow valleys throughout the surrounding countryside, but these features are generally subtle and do not create dramatic elevation changes.

The underlying geology consists primarily of sedimentary bedrock overlain by glacial deposits, resulting in well-drained soils that have supported extensive agricultural development. This agricultural heritage means that much of the surrounding land has been cleared of forest cover for generations, creating expansive open areas with minimal natural obstructions.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling agricultural lands extending north, east, and west of Caledonia present excellent opportunities for large-scale solar photovoltaic installations. These areas offer several key advantages including minimal topographical constraints, existing cleared land, and generally good accessibility via the region's established rural road network.

The agricultural fields north of Caledonia, particularly those in the areas between Caledonia and Mount Pleasant, feature extensive flat parcels that would require minimal grading or site preparation. The predominantly east-west orientation of many field boundaries in this area could facilitate optimal panel positioning for maximum solar exposure throughout the day.

Similarly promising are the open agricultural areas extending eastward toward the communities of York and Selkirk. This zone benefits from relatively uniform topography and large contiguous parcels of cleared land. The gentle southward slope of much of this terrain toward Lake Erie could actually prove advantageous for solar installations, as it naturally optimizes the angle for solar collection.

The areas west of Caledonia, stretching toward Jarvis and Simcoe, also present favorable conditions. These predominantly agricultural lands feature minimal tree cover and gentle topography that would pose few obstacles to large-scale solar development. The existing agricultural infrastructure in these areas, including farm roads and electrical connections, could potentially be adapted to support solar installations.

Areas immediately adjacent to the Grand River valley might be less suitable due to the slightly more varied topography and potential environmental sensitivities associated with the riparian corridor. However, the elevated areas on either side of the river valley could still accommodate solar installations while maintaining appropriate setbacks from water features.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
