Solar Energy Potential in Camlachie, Ontario, Canada

Camlachie, Ontario, Canada, located in the Northern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production that prospective solar adopters should consider. The solar energy output in Camlachie follows a predictable seasonal pattern. Summer stands out as the most productive season, generating approximately 6.30kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 5.16kWh/day per kW. Autumn yields a moderate 2.98kWh/day, while winter shows the lowest production at just 1.57kWh/day per kW of installed capacity.

Seasonal Variations and Optimal Installation

The substantial difference between summer and winter production (a ratio of about 4:1) indicates that Camlachie residents would experience abundant energy during summer months but significantly reduced output during winter. This seasonal variation is important to consider when sizing a system, as installations designed to meet winter needs might produce excess energy in summer. For maximum year-round efficiency at this location, fixed solar panels should be installed at a 36-degree tilt facing South. This specific angle has been calculated to optimize the annual solar energy harvest based on Camlachie's geographical position.

Environmental Considerations

Several environmental factors could affect solar production in Camlachie:

• Snow accumulation presents a significant challenge during winter months, potentially covering panels and further reducing the already limited winter production. Installing panels at the recommended 36-degree angle helps with natural snow shedding, while snow removal systems may be worth considering for larger installations.
• The region experiences cloudy conditions during fall and winter, contributing to the lower production figures during these seasons. This is already reflected in the seasonal output numbers and reinforces the importance of proper system sizing.

To maximize production despite these challenges, installations should prioritize locations with minimal shading from trees or structures, especially during winter when the sun's path is lower. Additionally, considering microinverters or power optimizers can help mitigate partial shading issues that may occur. The strong seasonal variation suggests that Camlachie residents might benefit from grid-tied systems rather than off-grid solutions, allowing them to feed excess summer production back to the grid and draw from it during less productive winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

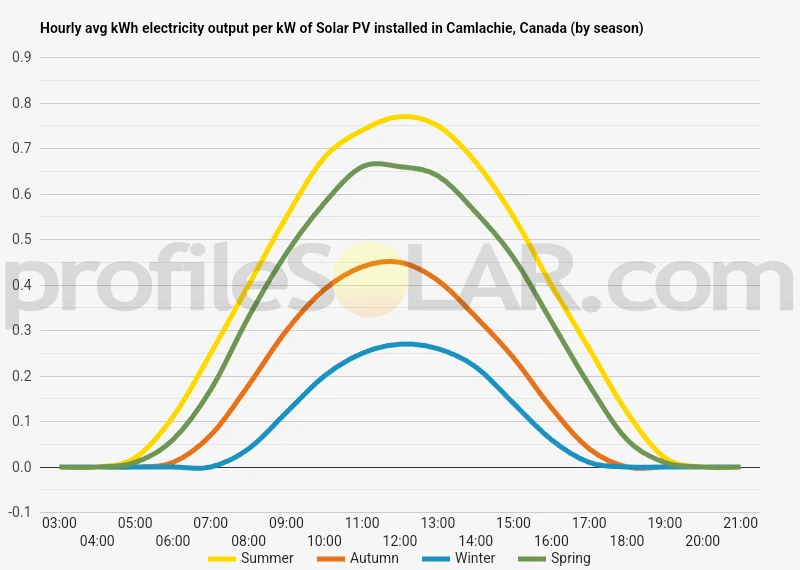

Solar output per kW of installed solar PV by season in Camlachie

Seasonal solar PV output for Latitude: 43.0406, Longitude: -82.1667 (Camlachie, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Camlachie, Canada

To maximize your solar PV system's energy output in Camlachie, Canada (Lat/Long 43.0406, -82.1667) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Camlachie, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Camlachie, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Camlachie, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Camlachie, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Camlachie, Canada

Camlachie is a small community in Canada, situated at a latitude of 43.0406 and longitude of -82.1667, placing it in southwestern Ontario near Lake Huron. The topography of the area is characterized by gently rolling terrain typical of this region of Ontario. The landscape consists primarily of flat to slightly undulating plains, with modest elevation changes throughout the vicinity. The area around Camlachie forms part of the broader physiographic region known as the St. Clair Clay Plains, which features relatively flat land with good drainage patterns. The elevation generally ranges between 200-250 meters above sea level, with gradual slopes rather than steep inclines. This gentle topography was largely shaped by glacial activity thousands of years ago, leaving behind fertile soils and the characteristic subtle undulations in the landscape.

Hydrological Features

The region includes several small creeks and streams that flow generally westward toward Lake Huron, which lies approximately 5-7 kilometers to the west of Camlachie. These waterways have created shallow valleys in some areas, providing minor variations in the otherwise gentle terrain. The proximity to Lake Huron influences the local climate, moderating temperature extremes somewhat compared to inland areas.

Land Use Patterns

The surrounding area is predominantly agricultural land, with open fields and farmland dominating the landscape. There are scattered woodlots and small forested areas, but these are not extensive enough to create significant topographical barriers. The agricultural character of the region means there are substantial open spaces with minimal shading from natural features.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the areas east and southeast of Camlachie present the most favorable conditions. These locations offer several advantages: The gently sloping terrain in these directions provides good southern exposure, which is optimal for solar collection in the Northern Hemisphere. The land east of Camlachie features larger continuous parcels of agricultural land with minimal fragmentation by woodlots or residential development, allowing for more efficient configuration of solar arrays. Areas approximately 3-5 kilometers east of Camlachie, where the land rises slightly, would benefit from reduced morning fog effects that can sometimes develop near the lake shore. These slightly elevated positions also experience less shading from any trees or structures. The southeastern quadrant from Camlachie contains some of the flattest terrain in the vicinity, requiring minimal grading work for installation of solar infrastructure. This area also has good access to existing road networks, facilitating construction and maintenance.

Topographical Considerations for Solar Development

When evaluating specific sites within these generally favorable areas, several topographical factors should be considered. South-facing slopes, even gentle ones of 1-3 degrees, can increase solar gain compared to perfectly flat terrain in this latitude. Areas with good natural drainage would reduce potential issues with seasonal flooding or soil erosion around foundations and support structures. The clay-based soils common to this region provide relatively good stability for mounting systems, though site-specific soil testing would be necessary. Locations that avoid low-lying depressions where cold air might settle are preferable, as these areas can experience more frequent morning fog or frost. The generally open landscape means wind exposure is a consideration, though the modest topographical relief does not create any unusual wind acceleration zones that would pose special challenges for solar infrastructure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
