Solar PV Analysis of Campbell River, Canada
Solar Energy Potential in Campbell River, Canada
Campbell River, located on the east coast of Vancouver Island in British Columbia, Canada, presents varying levels of solar energy potential throughout the year. This Northern Temperate Zone location experiences significant seasonal fluctuations in solar electricity generation.
Summer stands out as the most productive season for solar energy in Campbell River, with an impressive 6.36 kWh per day generated for each kilowatt of installed solar capacity. Spring follows as the second-best season, producing 4.26 kWh per day. These warmer months, particularly from May to August, offer the most ideal conditions for solar energy production due to longer daylight hours and generally clearer skies.
In contrast, autumn and winter see a dramatic decrease in solar energy potential. Autumn generates only 1.88 kWh per day, while winter drops further to a mere 1.05 kWh per day per kilowatt of installed capacity. This significant reduction is primarily due to shorter daylight hours, lower sun angles, and increased cloud cover typical of the Pacific Northwest climate during these seasons.
Optimal Panel Installation
To maximize year-round solar energy production in Campbell River, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the seasonal variations in sun position and intensity.
Environmental and Weather Considerations
Several factors can impact solar energy production in Campbell River:
- Frequent cloud cover, especially during autumn and winter months
- Potential for snow accumulation on panels during winter
- Coastal fog, particularly in the mornings
To mitigate these challenges, consider the following preventative measures:
Install panels at the optimal angle to promote snow sliding off. Use high-efficiency panels that perform better in low-light conditions. Implement a regular cleaning schedule to remove any debris or snow. Consider adding a solar tracking system to maximize energy capture throughout the day.
While Campbell River's location presents some challenges for year-round solar energy production, proper installation techniques and maintenance can still make solar PV a viable renewable energy option, especially during the more productive spring and summer months.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

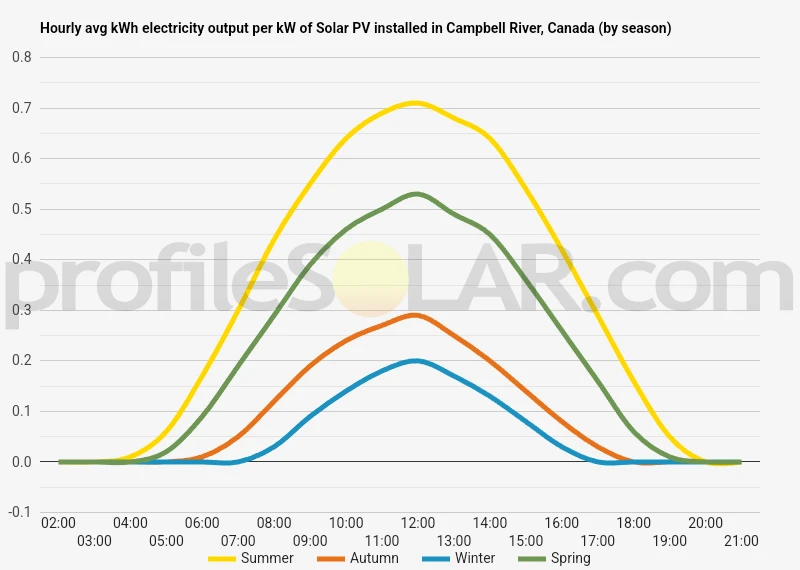

Solar output per kW of installed solar PV by season in Campbell River
Seasonal solar PV output for Latitude: 50.0797, Longitude: -125.5892 (Campbell River, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Campbell River, Canada
To maximize your solar PV system's energy output in Campbell River, Canada (Lat/Long 50.0797, -125.5892) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Campbell River, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Campbell River, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 34° South in Summer | 53° South in Autumn | 64° South in Winter | 42° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Campbell River, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Campbell River, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Campbell River, Canada
Campbell River, located on the eastern coast of Vancouver Island in British Columbia, Canada, is characterized by diverse and picturesque topography. The area surrounding Campbell River features a mix of coastal lowlands, rolling hills, and mountainous terrain.
Along the coastline, you'll find relatively flat areas with sandy beaches and rocky shores. As you move inland, the landscape gradually rises into gently sloping hills covered in lush temperate rainforest. These forests are dominated by tall coniferous trees such as Douglas fir, western red cedar, and western hemlock.
Further west, the terrain becomes more rugged and mountainous, with the Vancouver Island Ranges dominating the landscape. These mountains, part of the larger Insular Mountains, feature steep slopes, deep valleys, and numerous streams and rivers that flow eastward towards the Strait of Georgia.
The city of Campbell River itself is situated on a series of terraces that rise from sea level to about 100 meters in elevation. This gradual increase in elevation provides stunning views of the surrounding waters and distant coastal mountains on the mainland.
Regarding large-scale solar PV installations, the topography around Campbell River presents some challenges. The most suitable areas for such projects would likely be found in the following locations:
- Cleared farmland or open fields in the Comox Valley, south of Campbell River. These areas offer relatively flat terrain and fewer obstructions from trees or mountains.
- Reclaimed industrial sites or former logging areas that have been cleared of trees and offer large, open spaces.
- Gently sloping hillsides facing south or southwest, which would receive optimal sunlight throughout the day.
However, it's important to note that the region's climate, characterized by frequent cloud cover and rainfall, may impact the overall efficiency of solar power generation. Additionally, the extensive forest cover and mountainous terrain in much of the surrounding area limit the availability of large, unobstructed spaces ideal for solar farms.
Any large-scale solar PV project in this region would need to carefully balance environmental considerations, land use regulations, and the unique topographical challenges presented by Vancouver Island's landscape.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
