The location of Cartwright, Manitoba, Canada, situated at latitude 49.0956 and longitude -99.3408, presents varying levels of suitability for solar PV energy generation throughout the year. This Northern Temperate Zone location experiences significant seasonal fluctuations in solar energy production, which impacts its overall effectiveness for year-round solar power generation.

Seasonal Solar Production

Solar energy output at this location varies considerably across the four meteorological seasons. Summer proves to be the most productive period, with an average daily output of 6.23 kWh per kW of installed solar capacity. Spring follows as the second most productive season, yielding 5.30 kWh per day. In contrast, autumn and winter show marked decreases in energy production, with 2.85 kWh and 1.94 kWh per day, respectively.

Optimal Times for Solar Generation

The most ideal times for solar energy generation in Cartwright are during the late spring, summer, and early autumn months. This period typically spans from May to September, when daylight hours are longer, and the sun's position is more favorable. During these months, solar panels can operate at peak efficiency, capturing maximum sunlight and converting it into usable electricity.

Panel Tilt Angle for Maximum Efficiency

For fixed panel installations in Cartwright, Manitoba, the optimal tilt angle to maximize year-round solar production is 42 degrees facing south. This angle has been calculated to balance the varying solar elevations throughout the year, ensuring the best possible energy capture across all seasons.

Environmental and Weather Factors

Several environmental and weather factors can impact solar production in Cartwright:

1. Snow accumulation during winter months can significantly reduce panel efficiency.
2. Extended periods of cloud cover, particularly common in autumn and winter, can decrease solar energy capture.

To mitigate these issues, preventative measures can be implemented during solar installation. These include using panels with anti-soiling coatings to reduce snow adherence, installing panels at steeper angles to promote snow sliding, and implementing regular maintenance schedules for snow removal. Additionally, choosing high-efficiency panels that perform well in low-light conditions can help maximize energy production during cloudy periods.

While Cartwright's location presents challenges for year-round solar energy production, particularly during the winter months, proper system design and maintenance can still make solar PV a viable renewable energy option for this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

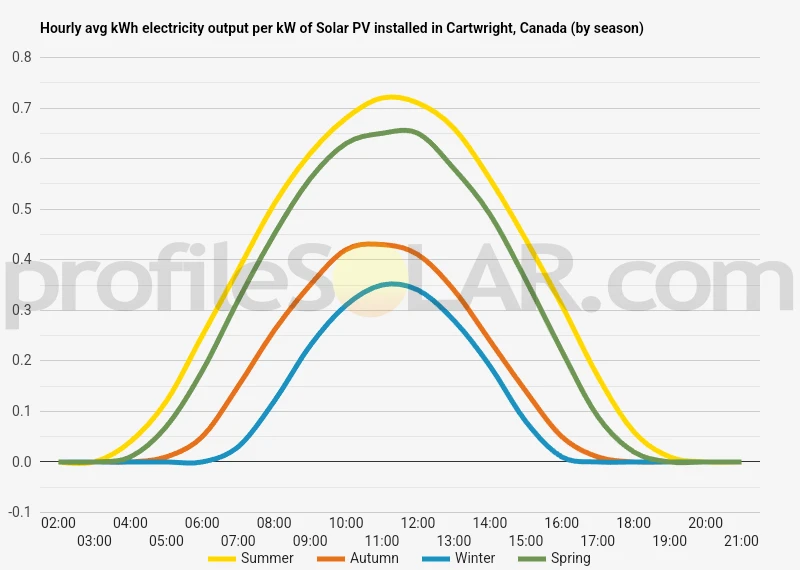

Solar output per kW of installed solar PV by season in Cartwright

Seasonal solar PV output for Latitude: 49.0956, Longitude: -99.3408 (Cartwright, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Cartwright, Canada

To maximize your solar PV system's energy output in Cartwright, Canada (Lat/Long 49.0956, -99.3408) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cartwright, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cartwright, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cartwright, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cartwright, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cartwright, Canada

The topography around Cartwright, Canada, located at latitude 49.0956 and longitude -99.3408, is characterized by gently rolling prairies typical of the Canadian Prairies region. This area is part of the Manitoba Plain, which is a relatively flat expanse of land with subtle undulations and occasional low hills. The landscape is primarily composed of fertile agricultural fields, interspersed with patches of grassland and small wooded areas. The terrain in this region is the result of glacial activity during the last ice age, which left behind a layer of rich soil over a bedrock of sedimentary rocks. The elevation in the Cartwright area is generally between 450 to 500 meters above sea level, with minimal variation across the surrounding landscape. Small streams and creeks meander through the area, eventually feeding into larger river systems.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain of the prairies surrounding Cartwright offers numerous advantages for solar energy development. Large, open spaces with minimal obstructions are abundant, providing ample room for extensive solar panel arrays without the need for significant land alterations. The most suitable areas for solar PV installations would likely be found on the higher ground of the gentle hills and ridges in the vicinity. These slightly elevated locations would benefit from increased exposure to sunlight throughout the day and potentially reduced risk of shadowing from nearby vegetation or structures. Additionally, south-facing slopes, even if gentle, would be particularly advantageous as they receive more direct sunlight over the course of a day. Areas of marginal agricultural land or former pastures that are no longer in active use could be prime candidates for solar development. These locations would minimize the impact on productive farmland while utilizing otherwise underutilized space. It's important to note that while the region experiences cold winters, the long summer days and generally clear skies contribute to a reasonably good solar resource potential. When selecting specific sites, factors such as proximity to existing electrical infrastructure, road access, and distance from residential areas would also need to be considered. Local zoning regulations and environmental considerations, such as wildlife habitats and wetlands, would play a role in determining the most appropriate locations for large-scale solar PV installations in the Cartwright area.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
