Castlegar, British Columbia, Canada, located at latitude 49.2999 and longitude -117.6745, presents a mixed picture for year-round solar energy generation. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems throughout the year.

Seasonal Solar Performance

The solar energy production in Castlegar varies dramatically across seasons. Summer months are the most productive, with an average daily output of 6.79 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.11 kWh/day. However, autumn and winter see a substantial drop in production, with 2.49 kWh/day and 1.31 kWh/day respectively.

This stark contrast between seasons means that solar energy systems in Castlegar will be most effective from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased energy production. Conversely, the winter months present significant challenges due to shorter days and lower sun angles, resulting in substantially reduced output.

Optimal Panel Tilt

To maximize year-round solar production in Castlegar, British Columbia, fixed solar panels should be installed at a tilt angle of 41 degrees facing south. This angle is calculated to optimize the capture of available sunlight throughout the year, taking into account the location's latitude and seasonal sun positions.

Environmental and Weather Factors

Several environmental and weather factors can impact solar production in Castlegar:

1. Snow accumulation: Castlegar's winters can bring significant snowfall, which can cover solar panels and reduce their efficiency. Regular panel cleaning or the installation of snow-shedding systems can help mitigate this issue.
2. Cloud cover: The region experiences periods of cloudy weather, particularly in autumn and winter, which can reduce solar output. Using high-efficiency panels and microinverters can help maximize production even in less-than-ideal conditions.

To address these challenges, consider installing panels at a steeper angle to promote snow sliding, using bifacial panels to capture reflected light, and implementing a robust cleaning and maintenance schedule. Additionally, incorporating energy storage solutions can help balance the seasonal variations in solar production, ensuring a more consistent energy supply throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

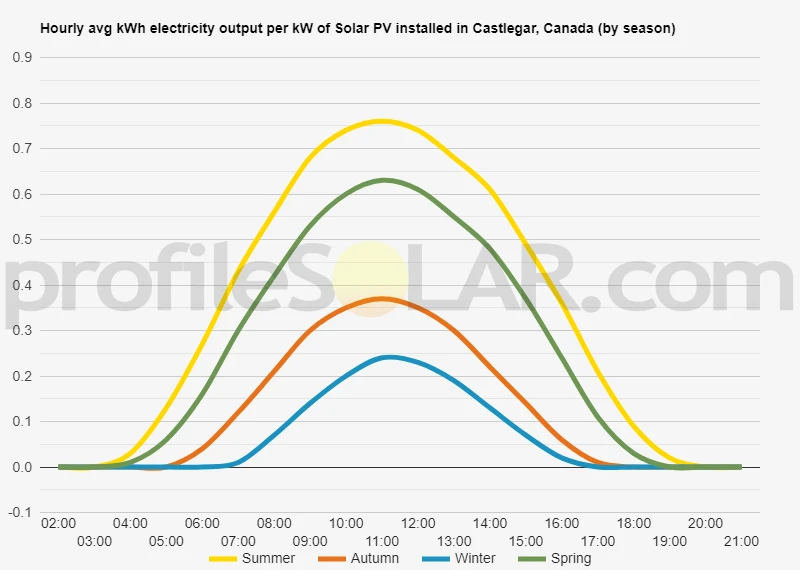

Solar output per kW of installed solar PV by season in Castlegar

Seasonal solar PV output for Latitude: 49.2999, Longitude: -117.6745 (Castlegar, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.79kWh/day in Summer.

Average 2.49kWh/day in Autumn.

Average 1.31kWh/day in Winter.

Average 5.11kWh/day in Spring.

Ideally tilt fixed solar panels 41° South in Castlegar, Canada

To maximize your solar PV system's energy output in Castlegar, Canada (Lat/Long 49.2999, -117.6745) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 49.2999, Longitude: -117.6745, the ideal angle to tilt panels is 41° South

Seasonally adjusted solar panel tilt angles for Castlegar, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Castlegar, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Castlegar, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Castlegar, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Castlegar, Canada

The topography around Castlegar, Canada is characterized by a diverse and rugged landscape typical of the interior of British Columbia. Castlegar itself is situated in a valley at the confluence of the Columbia and Kootenay Rivers, surrounded by steep, forested mountains.

The city is nestled between the Selkirk Mountains to the east and the Monashee Mountains to the west. These mountain ranges create a dramatic backdrop, with peaks rising to elevations of over 2,000 meters (6,500 feet) above sea level. The valley floor where Castlegar is located sits at an elevation of about 420 meters (1,380 feet).

The area features a mix of terrain types, including river valleys, plateaus, and mountainous regions. The Columbia River, which flows through Castlegar, has carved out a wide valley that extends north and south of the city. This valley is flanked by steep hillsides and terraced benchlands, which are flat or gently sloping areas at various elevations above the valley floor.

For large-scale solar PV installations, the most suitable areas nearby would likely be found on the benchlands and plateaus surrounding Castlegar. These areas offer relatively flat terrain and potentially good sun exposure, which are important factors for solar energy production. Some specific regions that might be worth investigating include:

• The benchlands to the west of Castlegar, towards the community of Ootischenia
• The plateau areas south of the city, in the direction of Trail
• The more open, less forested areas to the north, heading towards Arrow Lakes

However, it's important to note that the mountainous terrain in this region can create challenges for solar energy production due to potential shading effects. A thorough site-specific analysis would be necessary to determine the most optimal locations for large-scale solar PV installations, taking into account factors such as solar radiation, shading, land availability, and proximity to existing power infrastructure.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

Some provinces offer grants or low-interest loans for renewable energy projects.

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

Some cities offer additional incentives or property tax reductions for solar installations.

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
