Cawston, British Columbia, Canada, located in the Northern Temperate Zone at coordinates 49.1777, -119.76, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variation typical of northern latitudes.

Seasonal Solar Production Performance

The solar energy output at Cawston shows dramatic seasonal swings that reflect the region's temperate climate. Summer production reaches its peak at 6.97 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.41 kWh per day per kW, offering strong production as daylight hours increase and the sun climbs higher in the sky. Autumn production drops significantly to 2.48 kWh per day per kW as the sun angle decreases and weather patterns shift. Winter presents the greatest challenge, with production falling to just 1.31 kWh per day per kW of installed capacity, representing less than 19% of summer output. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 41 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying elevation throughout the year and the weighted solar potential across all seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors at Cawston can significantly impact solar energy production throughout the year:

• Snow accumulation: Winter snow can completely block solar panels, eliminating production for extended periods
• Freezing temperatures: Ice formation on panels reduces efficiency and can cause damage
• Seasonal cloud cover: Increased cloudiness during autumn and winter months reduces available solar radiation
• Dust and debris: Agricultural activities in the surrounding area may deposit dust on panels

Installation Strategies for Enhanced Performance

To maximize solar production despite these challenges, several preventative measures should be considered during installation:

• Steeper panel angles: Installing panels at angles steeper than the optimal 41 degrees can help snow slide off more easily, though this may slightly reduce overall annual production
• Elevated mounting: Raising panels higher above ground level prevents snow drifts from accumulating against the bottom edge
• Anti-reflective coatings: Special panel coatings can reduce ice formation and make cleaning easier
• Accessible design: Ensuring panels can be safely accessed for snow removal and cleaning during winter months
• Heating elements: In extreme cases, installing heating strips along panel edges can prevent ice buildup

Despite the winter production challenges, Cawston's strong summer and spring solar output, combined with proper installation techniques, can make solar energy a viable renewable energy option for this Northern Temperate location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

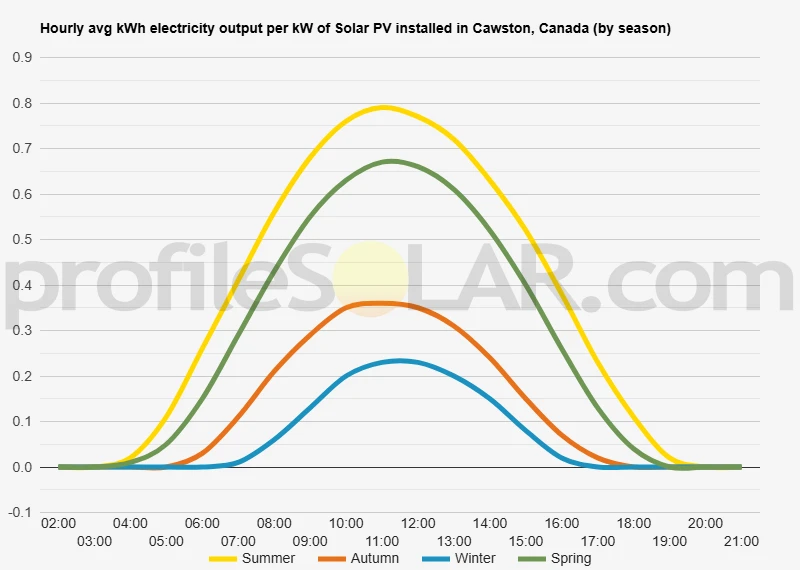

Solar output per kW of installed solar PV by season in Cawston

Seasonal solar PV output for Latitude: 49.1777, Longitude: -119.76 (Cawston, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Cawston, Canada

To maximize your solar PV system's energy output in Cawston, Canada (Lat/Long 49.1777, -119.76) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cawston, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cawston, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cawston, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cawston, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cawston, Canada

Topography Around Cawston

Cawston sits in the heart of the Similkameen Valley in southern British Columbia, nestled within a landscape characterized by rolling hills, terraced benchlands, and the meandering Similkameen River. The community lies at approximately 450 meters above sea level, positioned on relatively flat to gently sloping terrain that forms part of the valley floor. This area represents a transition zone between the Cascade Mountains to the west and the Okanagan Highlands to the east.

The immediate surroundings feature a mix of agricultural land, grasslands, and scattered residential properties. The terrain gradually rises from the river valley toward surrounding hillsides, creating natural benches and plateaus that have been shaped by both glacial activity and river erosion over thousands of years. These elevated areas offer expansive views across the valley and provide natural drainage patterns that flow toward the Similkameen River.

The broader regional topography includes significant elevation changes, with mountains rising to over 2,000 meters in the surrounding area. However, the valley floor and lower slopes maintain relatively gentle gradients, making much of the landscape accessible and suitable for various land uses. The area experiences a semi-arid climate with clear skies prevalent throughout much of the year.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the elevated benchlands and gentle south-facing slopes that characterize the valley's northern and eastern edges. These areas combine favorable topographic conditions with practical advantages for utility-scale development. The terrain offers natural drainage, reducing concerns about water accumulation around solar arrays, while the elevated positions provide excellent exposure to prevailing weather patterns.

Particularly suitable sites can be found on the terraced landscapes extending from the valley floor toward the surrounding hills. These bench areas typically feature slopes between 0-10 degrees, which represent ideal conditions for solar panel installation and maintenance access. The relatively stable soil conditions in these areas, combined with their elevation above the active floodplain, provide secure foundations for large-scale infrastructure.

Areas with southern exposure on the valley's northern slopes present especially attractive opportunities, as they naturally orient toward optimal solar angles throughout the day. The open grassland and agricultural areas in these locations often have fewer obstacles such as large trees or existing structures that might create shading issues. Additionally, these sites typically offer good access to existing road networks and electrical infrastructure, important considerations for utility-scale solar development.

The flatter areas of the valley floor, while potentially suitable from a topographic perspective, may face limitations related to agricultural land use and proximity to residential areas. However, marginal agricultural lands or areas with challenging growing conditions could represent viable alternatives for solar development, particularly where they offer good southern exposure and minimal shading from surrounding topographic features.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
