Solar Energy Potential in Chatham, Canada

The city of Chatham, located in southwestern Ontario, Canada, presents a varied landscape for solar energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences distinct seasonal changes that significantly impact solar panel performance. Summer stands out as the prime season for solar energy production in Chatham, with an impressive daily output of 6.36 kWh per kW of installed solar capacity. This high yield is due to longer daylight hours and the sun's higher position in the sky. Spring follows closely behind, generating 5.54 kWh per day, making it the second-best season for solar energy harvesting. Autumn sees a noticeable decrease in solar output, dropping to 3.28 kWh per day. This reduction is attributed to shorter days and the sun's lower angle in the sky. Winter presents the biggest challenge for solar energy production in Chatham, with daily output plummeting to just 1.73 kWh. The combination of shorter days, lower sun angle, and potential snow cover contributes to this significant decrease.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Chatham, fixed solar panels should be installed at a tilt angle of 36 degrees facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Factors and Mitigation Strategies

Several environmental factors can impact solar energy production in Chatham: 1. Snow accumulation: Winter snowfall can cover panels, reducing efficiency. Installing panels at the optimal angle helps snow slide off more easily. Additionally, using snow-shedding coatings or manual cleaning can mitigate this issue. 2. Cloud cover: Chatham experiences significant cloud cover, especially in autumn and winter. Utilizing high-efficiency panels and micro-inverters can help maximize energy production even in low-light conditions. 3. Temperature fluctuations: Extreme cold in winter and heat in summer can affect panel efficiency. Choosing temperature-resistant panels and ensuring proper ventilation during installation can help maintain optimal performance. By considering these factors and implementing appropriate strategies, solar energy systems in Chatham can be optimized to provide reliable power generation throughout the year, despite the challenges posed by seasonal variations and local weather conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

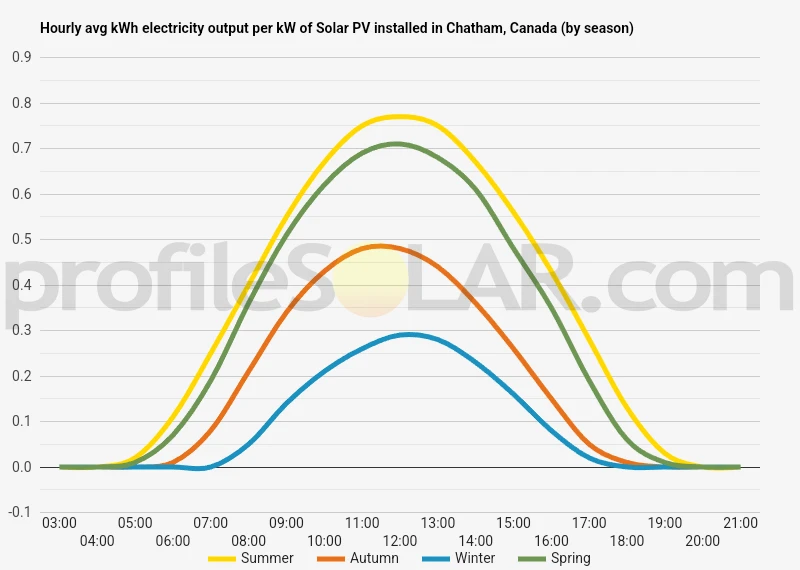

Solar output per kW of installed solar PV by season in Chatham

Seasonal solar PV output for Latitude: 42.4211, Longitude: -82.1939 (Chatham, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Chatham, Canada

To maximize your solar PV system's energy output in Chatham, Canada (Lat/Long 42.4211, -82.1939) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chatham, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chatham, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chatham, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chatham, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chatham, Canada

The area around Chatham, Canada, located at 42.4211 degrees north latitude and 82.1939 degrees west longitude, is characterized by a relatively flat topography. This region is part of the broader St. Clair Clay Plains, which is known for its level terrain and rich agricultural lands.

The landscape surrounding Chatham is predominantly composed of gently rolling plains with very subtle elevation changes. The area was shaped by glacial activity thousands of years ago, resulting in a mostly flat surface with occasional low hills and shallow depressions. The Thames River, which flows through Chatham, has carved a shallow valley in the otherwise uniform terrain.

Due to its location near Lake Erie and Lake St. Clair, the region around Chatham experiences minimal dramatic changes in elevation. The land gradually slopes towards these Great Lakes, but the incline is so gentle that it's barely noticeable to the casual observer.

Areas Suitable for Large-Scale Solar PV

Given the topography of the region, several areas near Chatham would be well-suited for large-scale solar photovoltaic (PV) installations:

1. Agricultural lands: The vast, open farmlands surrounding Chatham offer excellent potential for solar farms. These areas are flat, receive ample sunlight, and have minimal obstructions. However, the use of prime agricultural land for solar installations may be a point of contention.

2. Former industrial sites: Chatham-Kent has a history of industrial activity, and some brownfield sites could be repurposed for solar energy production. These areas are often already cleared and have existing infrastructure that could be adapted for solar use.

3. Rural areas south of Chatham: The land between Chatham and Lake Erie is particularly flat and open, making it ideal for large-scale solar installations. This area receives significant sunlight and has fewer obstacles to block solar panels.

4. Unused or marginal lands: There may be patches of land in the region that are not suitable for agriculture or other development but could be perfect for solar farms. These might include areas with poor soil quality or lands near existing power infrastructure.

When considering locations for solar PV installations, it's important to factor in not just the topography, but also proximity to existing electrical infrastructure, local zoning laws, and environmental considerations. The flat terrain and open spaces around Chatham generally provide favorable conditions for solar energy development, but specific site assessments would be necessary to determine the most suitable locations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
