Chatsworth, Ontario, Canada, located at latitude 44.45 and longitude -80.8833, presents a mixed scenario for year-round solar energy generation via photovoltaic (PV) systems. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which impacts the overall efficiency of solar installations.

Seasonal Solar Energy Production

The solar energy output at Chatsworth varies considerably throughout the year:

• Summer: 6.07 kWh/day per kW installed
• Spring: 5.21 kWh/day per kW installed
• Autumn: 2.87 kWh/day per kW installed
• Winter: 1.63 kWh/day per kW installed

These figures indicate that solar energy production is most efficient during the summer months, with spring being a close second. The long days and higher sun angle during these seasons contribute to increased energy output. Conversely, autumn and winter experience a significant drop in production due to shorter days and lower sun angles.

Optimal Panel Tilt

For fixed panel installations in Chatsworth, Ontario, the ideal angle to maximize year-round solar production is 38 degrees tilted towards the South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring the best possible exposure to sunlight throughout the year.

Environmental and Weather Factors

Several factors could potentially impact solar energy production in Chatsworth:

1. Snow accumulation: Being in Canada, Chatsworth likely experiences significant snowfall during winter months. Snow covering solar panels can drastically reduce their efficiency. To mitigate this, panels can be installed at a steeper angle to encourage snow sliding off, and regular snow removal may be necessary.

2. Cloud cover: The region may experience extended periods of cloudy weather, particularly in autumn and winter, which can reduce solar output. Using high-efficiency panels and incorporating energy storage systems can help offset the impact of cloudy days.

3. Temperature fluctuations: Extreme cold temperatures in winter can actually improve solar panel efficiency, but rapid temperature changes might stress the system components. Using quality, weather-resistant equipment is crucial for long-term reliability.

Despite these challenges, with proper planning and installation techniques, solar energy can still be a viable option for Chatsworth residents. The substantial energy production during spring and summer months can help offset the lower output during autumn and winter, making it a worthwhile investment for those looking to harness renewable energy in this Canadian location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

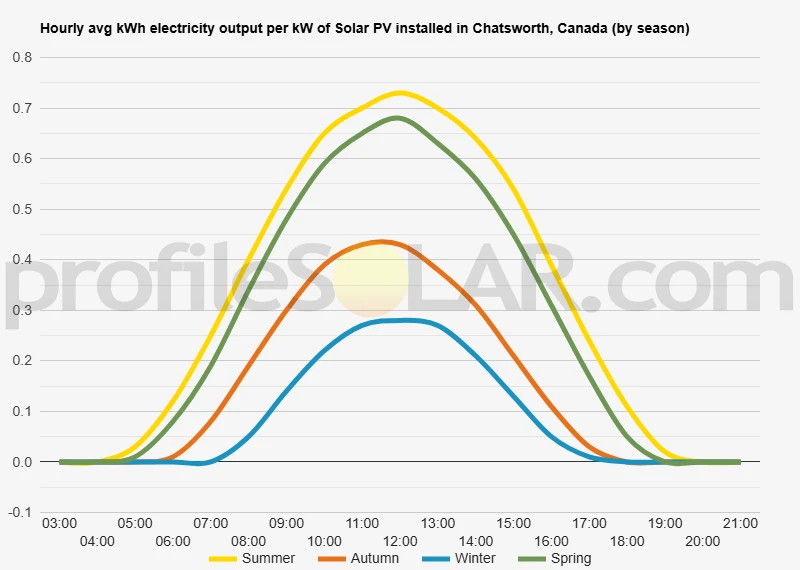

Solar output per kW of installed solar PV by season in Chatsworth

Seasonal solar PV output for Latitude: 44.45, Longitude: -80.8833 (Chatsworth, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Chatsworth, Canada

To maximize your solar PV system's energy output in Chatsworth, Canada (Lat/Long 44.45, -80.8833) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chatsworth, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chatsworth, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	47° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chatsworth, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chatsworth, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chatsworth, Canada

The area surrounding Chatsworth, Canada, located at latitude 44.45 and longitude -80.8833, is characterized by a diverse and picturesque topography. This region, situated in Grey County, Ontario, is part of the broader Georgian Bay area and features a mix of gently rolling hills, flat agricultural lands, and forested areas. The landscape is largely shaped by glacial activity from the last ice age, resulting in a combination of drumlins, eskers, and moraines. These geological formations create a subtly undulating terrain that gives the area its distinctive character. The Niagara Escarpment, a prominent geological feature, runs through the western part of Grey County, adding rocky outcrops and steep cliffs to the otherwise gentle landscape. Numerous rivers and streams crisscross the region, including the Saugeen River and its tributaries. These waterways have carved shallow valleys through the terrain over time, contributing to the area's varied topography. Small lakes and wetlands are also scattered throughout the vicinity, adding to the region's natural beauty and ecological diversity.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine relatively flat terrain, good sun exposure, and proximity to existing infrastructure. The agricultural lands to the east and southeast of Chatsworth present promising opportunities for solar PV development. These areas tend to be flatter and more open, with fewer obstructions that could cast shadows on solar panels. The gently sloping fields in this region could provide optimal angles for solar panel placement, maximizing sun exposure throughout the day. Areas to the south of Chatsworth, extending towards Durham and Hanover, also offer potential for large-scale solar installations. This region features expansive farmlands with minimal tree cover, providing ample space and unobstructed sunlight for solar arrays. It's important to note that while the hilly areas and forested regions may be less suitable for large-scale solar farms, they could still accommodate smaller, distributed solar installations. The varied topography of the region means that site-specific assessments would be crucial in determining the most appropriate locations for solar PV projects. Any solar development in the area would need to balance energy production goals with environmental considerations and local land use regulations. The presence of the Niagara Escarpment and various conservation areas in the region may limit the available land for large-scale solar projects in certain directions.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
