Chelmsford, Ontario, Canada, located at latitude 46.5869 and longitude -81.1975, presents a mixed scenario for year-round solar PV energy generation. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which affects the overall efficiency of solar installations.

Seasonal Solar Performance

Solar energy production in Chelmsford varies dramatically throughout the year. Summer proves to be the most productive season, with an average daily output of 5.87 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.08 kWh/day. However, autumn and winter see a substantial drop in production, with 2.72 kWh/day and 1.80 kWh/day respectively.

The stark contrast between summer and winter production highlights the challenges of relying solely on solar power in this region. While summer months offer excellent generation potential, the winter months may require supplementary energy sources or significant energy storage solutions to maintain consistent power supply.

Optimal Installation Angle

For fixed panel installations in Chelmsford, Ontario, the ideal tilt angle to maximize year-round solar production is 40 degrees facing South. This angle helps optimize energy capture across all seasons, balancing the high summer sun with the lower winter sun angle.

Environmental and Weather Factors

Several factors can impede solar production in Chelmsford:

1. Snow accumulation: The region's snowy winters can significantly reduce solar panel efficiency if snow is allowed to build up on panels.
2. Cloud cover: Frequent overcast days, especially in autumn and winter, can diminish solar output.
3. Short winter days: The location's northern latitude results in fewer daylight hours during winter months, limiting solar generation potential.

Preventative Measures

To mitigate these challenges and ensure greater energy production, consider the following measures when installing solar PV systems in Chelmsford:

• Install panels at a steeper angle to promote snow sliding off
• Use high-efficiency panels to maximize output during limited sunlight periods
• Implement a regular panel cleaning schedule, especially after snowfall
• Consider a dual-axis tracking system to maximize sun exposure throughout the year
• Integrate energy storage solutions to balance seasonal production variations

While Chelmsford's location presents some challenges for year-round solar energy production, proper system design and maintenance can still yield significant benefits, particularly during the more productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

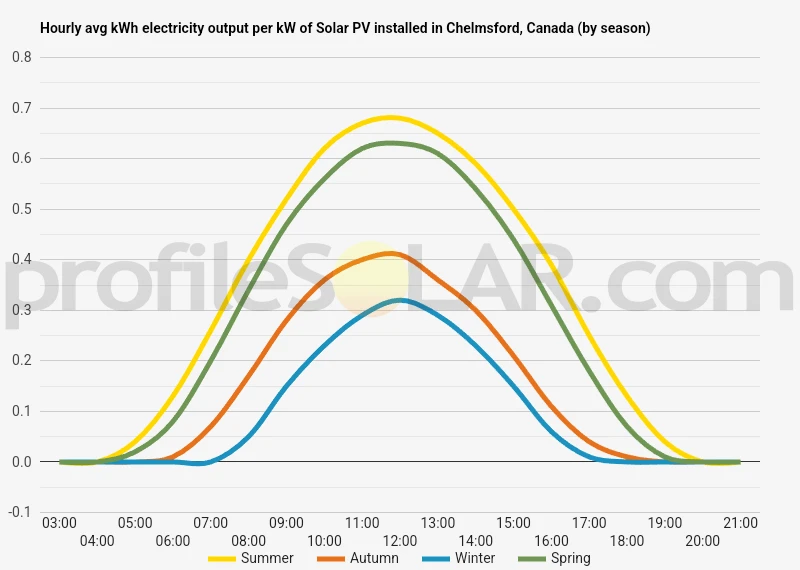

Solar output per kW of installed solar PV by season in Chelmsford

Seasonal solar PV output for Latitude: 46.5869, Longitude: -81.1975 (Chelmsford, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Chelmsford, Canada

To maximize your solar PV system's energy output in Chelmsford, Canada (Lat/Long 46.5869, -81.1975) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chelmsford, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chelmsford, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chelmsford, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chelmsford, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chelmsford, Canada

The area surrounding Chelmsford, Canada, located at latitude 46.5869 and longitude -81.1975, is characterized by a diverse and rugged topography typical of the Canadian Shield region. This landscape has been shaped by ancient geological processes and glacial activity, resulting in a mix of rolling hills, rocky outcrops, and numerous lakes and rivers. The terrain around Chelmsford features gentle to moderate slopes, with elevations generally ranging from 250 to 350 meters above sea level. The area is dotted with small hills and ridges, interspersed with valleys and lowlands. The underlying bedrock is primarily composed of Precambrian igneous and metamorphic rocks, which often protrude through the thin soil cover, creating exposed rock formations.

Water Features

The region is rich in water resources, with numerous lakes, ponds, and rivers scattered throughout the landscape. The Vermilion River, a significant waterway in the area, flows near Chelmsford, contributing to the local topography and ecosystem. These water bodies not only add to the scenic beauty of the region but also influence the local climate and vegetation patterns.

Vegetation

The topography supports a mixed forest ecosystem, predominantly consisting of coniferous and deciduous trees. The forest cover varies in density, with some areas featuring thick woodlands while others have more open, sparsely vegetated terrain. This vegetation plays a crucial role in stabilizing the soil and supporting local wildlife.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would be relatively flat or gently sloping areas with good sun exposure and minimal shading from surrounding hills or forests. South-facing slopes in the region would be particularly advantageous for solar PV installations, as they receive more direct sunlight throughout the day. Areas with thinner forest cover or cleared land would also be preferable, as they would require less site preparation and tree removal. Some of the most suitable locations for large-scale solar PV projects near Chelmsford might include: 1. Open fields or meadows in the valleys between hills, especially those with a southern aspect. 2. Reclaimed or abandoned mining sites, which are often already cleared and may have the necessary infrastructure for power transmission. 3. Areas along the edges of larger water bodies, where the reflective surface of the water can potentially enhance solar radiation. However, it's important to note that any large-scale solar PV project would need to consider environmental impacts, local regulations, and the proximity to existing power infrastructure. Additionally, the region's climate, including significant snowfall in winter months, would need to be factored into the design and maintenance plans for any solar installation.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
