Solar PV Analysis of Chilliwack, Canada
Chilliwack, British Columbia, Canada (latitude 49.0745 and longitude -121.9826) has the potential to generate a significant amount of solar energy throughout the year, with varying levels of electricity production per kW of installed solar in each season. During summer, an average of 6.89 kWh/day can be generated, while autumn yields 2.39 kWh/day, winter produces 1.38 kWh/day, and spring offers 5.26 kWh/day per kW of installed solar.
Given Chilliwack's location within the Northern Temperate Zone, it is expected that there will be higher power generation during warmer months compared to colder ones due to fluctuations in temperature and sunlight availability.
However, certain weather conditions such as heavy snowfall or strong winds could negatively impact solar power generation efficiency at this location. To mitigate these factors, it is essential to monitor local forecasts before installing any equipment and ensure proper maintenance throughout all seasons.
Cloud cover can also affect energy production since clouds block sunlight from reaching photovoltaic cells; therefore, it may be beneficial to install systems with higher wattage ratings if possible so they can still produce enough energy even when skies are overcast or cloudy for extended periods of time.
For a fixed panel installation in Chilliwack, British Columbia, tilting panels at an angle of 41 degrees South would provide optimal performance without considering tracking systems.
In conclusion, Chilliwack has suitable conditions for generating solar power year-round despite some seasonal fluctuations and potential weather-related challenges. By taking preventative measures such as monitoring local forecasts and selecting appropriate equipment with higher wattage ratings when necessary, one can help ensure greater energy production from their solar installation in this region.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Canada by location

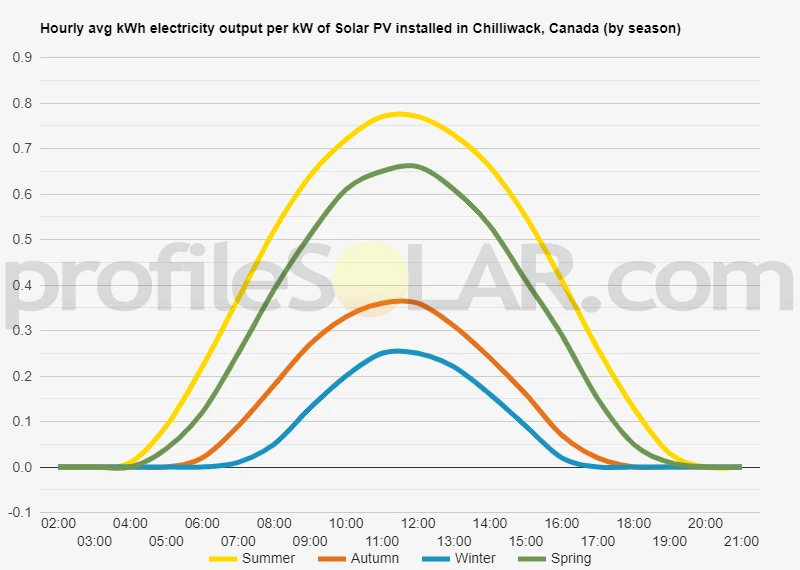

Solar output per kW of installed solar PV by season in Chilliwack
Seasonal solar PV output for Latitude: 49.0745, Longitude: -121.9826 (Chilliwack, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 41° South in Chilliwack, Canada
To maximize your solar PV system's energy output in Chilliwack, Canada (Lat/Long 49.0745, -121.9826) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Chilliwack, Canada
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chilliwack, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 32° South in Summer | 52° South in Autumn | 63° South in Winter | 41° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Chilliwack, Canada
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chilliwack, Canada.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Chilliwack, Canada
Chilliwack, Canada is located in the Fraser Valley of British Columbia. The topography around this area is diverse, with a mix of flat lands and mountainous regions. The city itself is relatively flat, surrounded by mountains such as the Cascade Mountains to the east and Coastal Mountains to the west.
The climate in Chilliwack can be considered temperate with warm summers and mild winters. However, it is also known for its high rainfall levels which could impact solar energy production.
For large-scale solar photovoltaic (PV) installations, areas that are flat and receive a high level of sunlight would be most suitable. In the context of Chilliwack's surroundings, flatter regions away from mountain shadows would be ideal for maximizing sun exposure.
However, considering Chilliwack's annual rainfall and cloud coverage levels which are higher than average in comparison to other parts of Canada (like southern Ontario or Alberta), it might not be the most optimal location for large-scale solar PV operations when compared nationally.
Before deciding on a location for any large-scale solar installation project though, factors like land availability/price, local regulations & incentives related to renewable energy projects should also be taken into account along with topography & climatic conditions. Detailed site assessments including sun-path analysis would provide more accurate information regarding suitability for solar PV installations.
Canada solar PV Stats as a country
Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Canada?
There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:
1. Federal Tax Incentives:- Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.
- Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
- Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
- British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
- Nova Scotia: Solar Electricity for Community Buildings Program.
Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.
4. Grants and Loans:Some provinces offer grants or low-interest loans for renewable energy projects.
5. Carbon Pricing:The federal carbon pricing system can make solar more competitive compared to fossil fuels.
6. Municipal Incentives:Some cities offer additional incentives or property tax reductions for solar installations.
7. Reduced Operating Costs:While not a direct incentive, businesses can significantly reduce their long-term energy costs.
Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.
Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
