Cookstown, Ontario, Canada presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the highest production at 5.94 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows closely behind with strong performance at 5.24 kWh per day per kW, representing the second-best period for solar energy harvest. Autumn sees a notable decline to 2.96 kWh per day per kW, while winter presents the most challenging conditions with only 1.72 kWh per day per kW of output. This winter figure represents less than 30% of summer production, highlighting the substantial seasonal challenge faced by solar installations in this region.

Optimal Panel Configuration

For fixed panel installations at Cookstown, Ontario, the ideal tilt angle is 38 degrees facing south to maximize total year-round solar production. This angle represents the optimal compromise across all seasons, balancing the varying sun angles throughout the year to capture the maximum amount of solar energy annually.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this location, requiring careful consideration during installation:

• Snow accumulation during winter months can completely block panels
• Ice formation can reduce panel efficiency and create safety hazards
• Frequent cloud cover during autumn and winter reduces solar irradiance
• Freezing temperatures can affect equipment performance and battery systems
• High humidity and precipitation can create moisture-related issues

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Installing panels at the recommended 38-degree tilt helps snow slide off naturally rather than accumulating on flat surfaces. Using mounting systems that allow for easy access enables safe snow removal when necessary. Selecting cold-weather rated equipment ensures reliable operation during freezing conditions. Installing heating elements or de-icing systems on critical panels can maintain production during ice storms, though this adds to system costs. Proper drainage around ground-mounted systems prevents ice dams and water pooling. For roof installations, ensuring adequate ventilation behind panels prevents moisture buildup and maintains optimal operating temperatures. Regular maintenance schedules become particularly important, with pre-winter inspections and post-storm cleaning helping maintain peak performance throughout the challenging seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

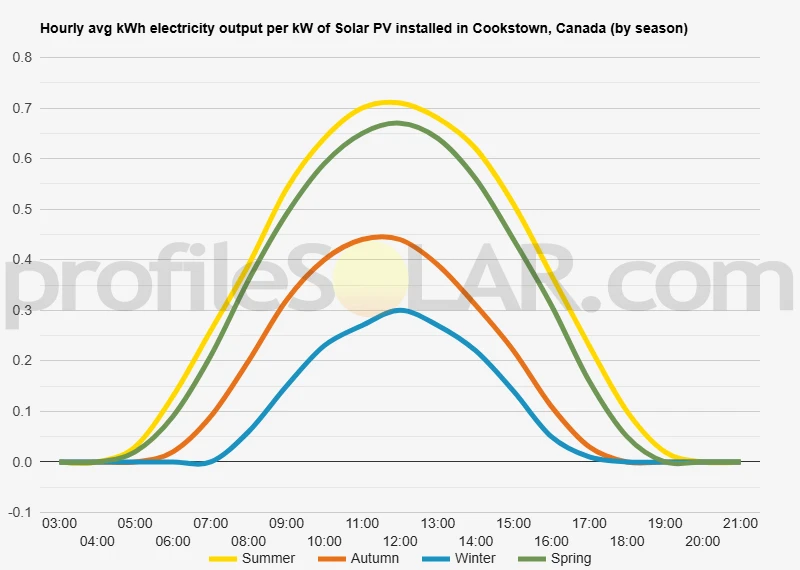

Solar output per kW of installed solar PV by season in Cookstown

Seasonal solar PV output for Latitude: 44.1913, Longitude: -79.6975 (Cookstown, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Cookstown, Canada

To maximize your solar PV system's energy output in Cookstown, Canada (Lat/Long 44.1913, -79.6975) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cookstown, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cookstown, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	47° South in Autumn	58° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cookstown, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cookstown, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cookstown, Canada

Topography Around Cookstown, Ontario

Cookstown sits within the gently rolling landscape of Simcoe County in south-central Ontario, positioned between the shores of Lake Simcoe to the east and the Nottawasaga River valley to the west. The terrain in this region is characterized by relatively modest elevation changes, with the area resting on what geologists call the Simcoe Lowlands. This topography was largely shaped by glacial activity during the last ice age, which left behind a landscape of low hills, shallow valleys, and well-drained soils.

The elevation around Cookstown typically ranges from about 200 to 300 meters above sea level, with the highest points found on the drumlin fields that dot the countryside. These elongated hills, formed by glacial deposits, create a gently undulating terrain that rarely presents steep slopes or dramatic elevation changes. The Nottawasaga River and its tributaries have carved shallow valleys through the landscape, creating areas of lower elevation that gradually transition to higher ground.

Moving eastward toward Lake Simcoe, the land becomes increasingly flat and low-lying, eventually reaching the lake's shoreline at an elevation of approximately 219 meters above sea level. To the west and northwest, the terrain gradually rises toward the Niagara Escarpment, though this major geological feature remains some distance away and does not directly influence the immediate topography around Cookstown.

Optimal Areas for Large-Scale Solar Development

The relatively flat to gently rolling topography around Cookstown presents several advantageous areas for large-scale solar photovoltaic installations. The most suitable locations would be the broad, open agricultural fields that dominate the landscape to the south and east of the town. These areas offer extensive flat or very gently sloping terrain with minimal shading from natural features, making them ideal for maximizing solar panel efficiency and simplifying installation processes.

The drumlin fields, while slightly more elevated, also present excellent opportunities for solar development. These low hills typically have gentle southern-facing slopes that would be particularly well-suited for solar arrays, as they can be oriented to capture optimal sun exposure throughout the day. The well-drained soils on these elevated areas also reduce concerns about flooding or waterlogging that might affect ground-mounted solar installations.

Areas closer to existing electrical infrastructure would be particularly attractive for development, as they would minimize the costs associated with connecting solar installations to the electrical grid. The relatively open nature of the agricultural landscape means that transmission lines are generally accessible without the need to clear significant vegetation or navigate challenging terrain.

The flat agricultural lands extending toward Lake Simcoe would also be highly suitable, offering large contiguous areas with minimal topographical constraints. These areas benefit from the open exposure typical of agricultural regions, with few natural obstructions that might create shading issues for solar panels. The proximity to transportation corridors, including Highway 89 and other regional roads, would facilitate the construction and maintenance of large-scale solar facilities in these locations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
