Cornwall, Ontario, Canada, located in the Northern Temperate Zone at coordinates 45.0224, -74.7537, presents a moderately suitable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer production peaks at 5.93 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows closely with strong performance at 5.38 kWh per day per kW, indicating favorable conditions as daylight hours increase and solar angles improve. However, the location faces considerable challenges during colder months. Autumn production drops significantly to 2.82 kWh per day per kW, while winter output plummets to just 1.80 kWh per day per kW. This represents a more than three-fold difference between peak summer and winter production, which is typical for northern temperate locations but requires careful system sizing and energy planning.

Optimal Installation Configuration

For maximum year-round energy production at Cornwall, Ontario, solar panels should be installed at a fixed tilt angle of 39 degrees facing south. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance potential, accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant local factors can impede solar production in Cornwall and require specific preventative measures:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production for days or weeks
• Ice formation: Freezing rain and ice storms common in this region can coat panels and reduce efficiency
• Cold weather performance: While panels actually operate more efficiently in cold temperatures, extreme cold can affect inverter performance and battery systems
• Seasonal cloud cover: Increased cloudiness during winter months compounds the already reduced solar angles

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective: Installing panels at the recommended 39-degree tilt helps snow slide off more easily than flatter installations. The steep angle naturally encourages snow shedding, reducing manual cleaning requirements. Additionally, choosing dark-colored panel frames can help accelerate snow melting through heat absorption. Proper inverter placement in climate-controlled environments protects sensitive electronics from temperature extremes. Some installers recommend micro-inverters or power optimizers that can better handle partial shading from snow or ice on individual panels. Ground-mounted systems offer advantages in snowy climates, allowing easier access for snow removal when necessary. However, they require careful consideration of local snow depth and wind patterns. Elevated mounting helps prevent panels from becoming completely buried during heavy snow events.

Overall Assessment

Cornwall represents a moderately viable location for solar energy, particularly attractive during the six-month period from spring through early autumn when production remains strong. The winter production challenges are manageable with proper system design and realistic expectations about seasonal performance variations. Property owners should size their systems accounting for the significant winter production decrease and consider battery storage or grid-tie arrangements to manage the seasonal energy gaps effectively.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

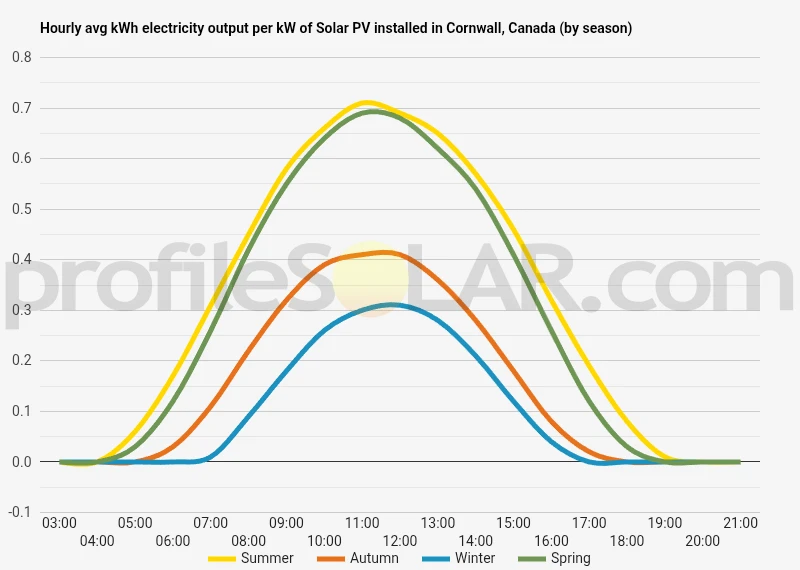

Solar output per kW of installed solar PV by season in Cornwall

Seasonal solar PV output for Latitude: 45.0224, Longitude: -74.7537 (Cornwall, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 39° South in Cornwall, Canada

To maximize your solar PV system's energy output in Cornwall, Canada (Lat/Long 45.0224, -74.7537) throughout the year, you should tilt your panels at an angle of 39° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cornwall, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cornwall, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 39° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
29° South in Summer	49° South in Autumn	59° South in Winter	38° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cornwall, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cornwall, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cornwall, Canada

Topographical Features of Cornwall, Canada

Cornwall sits in a remarkably flat region of eastern Ontario, positioned along the north shore of the St. Lawrence River where it forms the international boundary with New York State. The city occupies part of the St. Lawrence Lowlands, a geological region characterized by its gentle, rolling terrain and minimal elevation changes. This area represents some of the flattest and most uniform topography in all of Ontario, with elevations typically ranging between 45 and 75 meters above sea level.

The landscape around Cornwall consists primarily of agricultural plains that stretch for kilometers in all directions, interrupted only by occasional gentle rises and shallow valleys carved by small tributaries feeding into the St. Lawrence. The terrain slopes very gradually southward toward the river, creating natural drainage patterns that have supported centuries of farming activity. These plains are part of the ancient Champlain Sea bed, which explains the exceptionally level nature of the land and the presence of fertile clay and silt soils throughout the region.

To the north and west of Cornwall, the topography remains consistently flat as it extends toward the Ottawa River valley. Small creeks and drainage channels create minor undulations in the landscape, but these features are subtle and do not significantly alter the overall flatness of the region. The area is dotted with woodlots and field boundaries marked by hedgerows, but large expanses of open agricultural land dominate the visual landscape.

Optimal Areas for Large-Scale Solar Development

The extensive agricultural plains surrounding Cornwall present exceptional opportunities for large-scale solar photovoltaic installations. The flat to gently rolling terrain eliminates the shading issues and complex mounting requirements that would be necessary in more mountainous regions. These characteristics make the area particularly well-suited for ground-mounted solar arrays that can be oriented and spaced optimally without concern for significant topographical obstacles.

The most promising locations for major solar developments lie in the agricultural areas north and northwest of the city, where large, unobstructed fields provide ample space for utility-scale installations. These areas benefit from minimal tree cover and few geographical constraints that might interfere with solar panel placement or maintenance access. The gentle southward slope of much of this terrain naturally favors solar installations by providing slight south-facing orientations without requiring extensive site preparation.

Areas immediately west of Cornwall toward the hamlet of Long Sault also offer excellent potential, as the landscape continues to exhibit the same flat characteristics while providing good access to existing electrical transmission infrastructure. The proximity to major power lines and substations in this region would facilitate grid connection for large solar projects. Additionally, the relatively sparse population density in these rural areas reduces potential conflicts with residential development while providing sufficient space for expansive solar farms.

The eastern approaches to Cornwall, extending toward the Quebec border, present similar topographical advantages with vast open spaces and minimal elevation changes. However, the western and northern areas may offer slightly better development potential due to their greater distance from the St. Lawrence River and associated flood plains, as well as better road access for construction and maintenance activities.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
