Courtice, Ontario, Canada presents a moderate solar energy generation opportunity with significant seasonal variation typical of its Northern Temperate Zone location. The solar output data reveals a substantial difference between peak and low production periods throughout the year.

Seasonal Solar Performance

Summer represents the optimal period for solar generation at this location, producing 6.01 kWh per day per kW of installed capacity. This peak performance period is followed by spring, which delivers a strong 5.12 kWh per day per kW, making these two seasons the most productive for solar energy harvesting. Autumn shows a notable decline in solar production, dropping to 3.01 kWh per day per kW of installed solar. Winter presents the most challenging period, with output falling to just 1.66 kWh per day per kW, representing less than 28% of summer production levels.

Optimal Panel Configuration

For maximum year-round energy production at Courtice, Ontario, solar panels should be installed at a fixed tilt angle of 37 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting for solar irradiance potential.

Environmental and Weather Challenges

Several local factors can significantly impact solar production at this Canadian location:

• Snow accumulation during winter months can completely block solar panels
• Ice formation can reduce panel efficiency and create safety hazards
• Frequent cloud cover during autumn and winter reduces solar irradiance
• Temperature variations can affect panel efficiency

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered. Panels should be mounted with adequate spacing from roof surfaces to promote air circulation and easier snow shedding. The 37-degree tilt angle naturally helps snow slide off panels more readily than flatter installations. Installing panels with smooth, dark surfaces and anti-reflective coatings can help minimize ice buildup and improve snow shedding. Ensuring easy access for cleaning and maintenance is crucial, particularly for removing snow accumulation during winter months. Consider installing heating elements or snow removal systems for critical installations, though the cost-benefit analysis should account for the relatively low winter production levels. Proper electrical system design should accommodate the significant seasonal variation in output to ensure optimal energy storage and grid integration throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

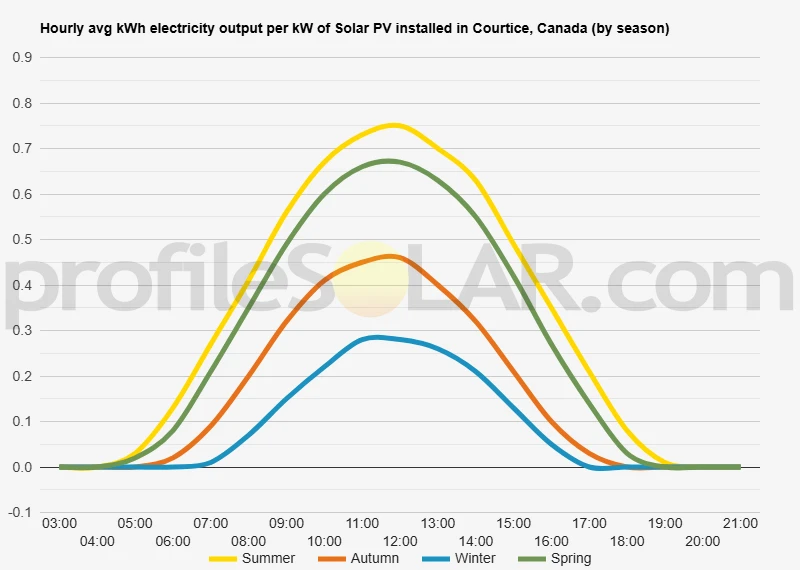

Solar output per kW of installed solar PV by season in Courtice

Seasonal solar PV output for Latitude: 43.8942, Longitude: -78.7652 (Courtice, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Courtice, Canada

To maximize your solar PV system's energy output in Courtice, Canada (Lat/Long 43.8942, -78.7652) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Courtice, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Courtice, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	47° South in Autumn	58° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Courtice, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Courtice, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Courtice, Canada

Topographical Features Around Courtice

Courtice sits within the relatively flat to gently rolling terrain characteristic of the Lake Ontario shoreline region in southern Ontario. The area is positioned on what geographers call the Lake Iroquois Plain, an ancient lake bed that formed during the last ice age. This geological foundation creates a landscape with minimal elevation changes, making it particularly well-suited for large-scale development projects.

The topography immediately around Courtice features subtle undulations with elevations ranging from approximately 75 meters above sea level near Lake Ontario to around 200 meters inland toward the north. These gentle slopes drain southward toward the lake through a network of small creeks and streams. The terrain consists primarily of clay and sandy soils deposited by glacial activity, creating stable ground conditions for construction.

Agricultural fields dominate the landscape north and east of Courtice, where decades of farming have created large, open expanses with minimal tree cover. These cleared areas stretch across the gently rolling countryside, broken occasionally by woodlots, farm buildings, and rural roads. The relatively uniform topography means there are few significant hills, valleys, or other geographical features that would create substantial shading or access challenges.

Optimal Areas for Large-Scale Solar Development

The agricultural lands extending north and northeast of Courtice present the most promising opportunities for utility-scale solar installations. These areas benefit from the region's characteristically flat to gently sloping terrain, which minimizes grading requirements and reduces installation costs. The existing field patterns provide large, contiguous parcels that could accommodate substantial solar arrays without the complications of fragmented land ownership.

The zone between Highway 401 and the CN Rail line offers particularly attractive conditions, combining favorable topography with proximity to existing electrical infrastructure. This area maintains the gentle southward slope that naturally optimizes panel orientation while remaining relatively free from the urban development pressures closer to Lake Ontario.

Areas further inland, particularly around the communities of Solina and Enniskillen, present additional opportunities where the topography remains conducive to solar development. The landscape here continues the pattern of open agricultural fields with minimal elevation changes, though developers would need to consider the greater distance from major electrical transmission infrastructure.

The immediate shoreline areas closer to Lake Ontario, while topographically suitable, face greater constraints from residential development and municipal planning restrictions. However, the slightly elevated areas just north of the established residential zones could potentially accommodate smaller-scale installations where local zoning permits such development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
