Drayton Valley, Alberta, Canada, located at latitude 53.2135 and longitude -114.9851, presents a mixed picture for solar PV energy generation. This Northern Temperate Zone location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar installations throughout the year.

Seasonal Solar Performance

The solar energy production in Drayton Valley varies dramatically across seasons. Summer stands out as the most productive period, with an impressive 6.27 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second-best season, yielding 5.00 kWh/day. However, the colder months see a substantial drop in energy generation, with autumn producing 2.57 kWh/day and winter falling to a mere 1.39 kWh/day.

Optimal Times for Solar Generation

Given these figures, the ideal times for solar energy production in Drayton Valley are clearly the summer months, followed closely by spring. These seasons offer longer daylight hours and more direct sunlight, maximizing the potential of solar PV systems. The period from late April through early September is likely to provide the most consistent and substantial energy output.

Panel Tilt Angle for Maximum Efficiency

To optimize year-round solar production in this location, fixed solar panels should be installed at a 45-degree angle facing south. This tilt helps balance energy capture across seasons, maximizing overall annual output despite the significant seasonal variations.

Environmental and Weather Considerations

Several factors can impact solar production in Drayton Valley:

1. Snow accumulation in winter can significantly reduce panel efficiency. Regular snow removal or the installation of steeper panels can help mitigate this issue.
2. The region's northern latitude means shorter winter days, limiting solar exposure during colder months. This natural limitation is difficult to overcome but can be partially addressed by ensuring optimal panel positioning.
3. Cloud cover, particularly prevalent in autumn and winter, can reduce solar efficiency. Using high-quality panels designed to perform well in diffuse light conditions can help maintain some productivity during overcast periods.

To maximize solar energy production in Drayton Valley, Alberta, consider using bifacial panels to capture reflected light, implementing a solar tracking system for increased efficiency, and ensuring regular maintenance to keep panels clean and free from snow or debris. While the location presents challenges, especially during colder months, the strong performance in summer and spring makes solar PV a viable option for supplementing energy needs in this Canadian town.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

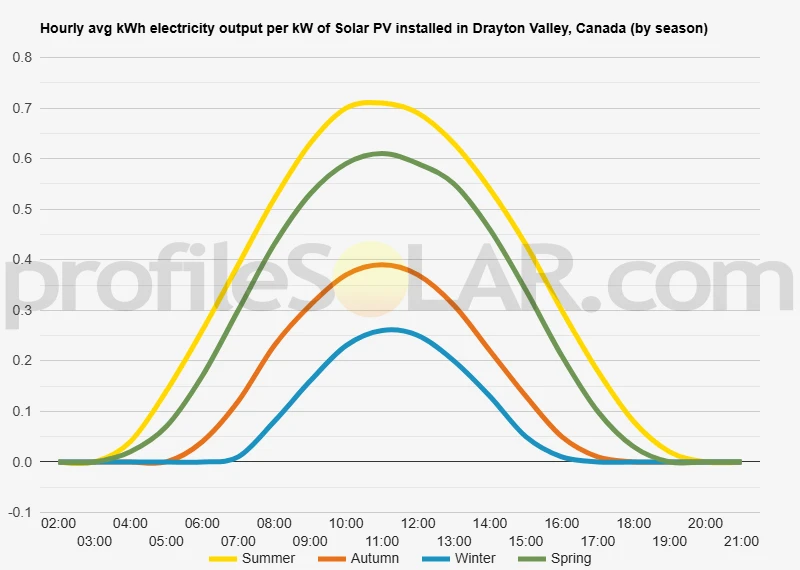

Solar output per kW of installed solar PV by season in Drayton Valley

Seasonal solar PV output for Latitude: 53.2135, Longitude: -114.9851 (Drayton Valley, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Drayton Valley, Canada

To maximize your solar PV system's energy output in Drayton Valley, Canada (Lat/Long 53.2135, -114.9851) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Drayton Valley, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Drayton Valley, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Drayton Valley, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Drayton Valley, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Drayton Valley, Canada

The topography around Drayton Valley, Alberta, Canada, is characterized by a mix of gently rolling hills, forested areas, and agricultural lands. Situated in the western part of central Alberta, the region is part of the Interior Plains physiographic region. The landscape is shaped by glacial activity from the last ice age, resulting in a terrain that is generally flat to moderately undulating. Drayton Valley itself sits at an elevation of approximately 869 meters (2,851 feet) above sea level. The surrounding area features a gradual increase in elevation as you move westward towards the foothills of the Rocky Mountains. To the east, the land becomes slightly flatter as it transitions into the prairie regions of Alberta. The North Saskatchewan River flows through the region, carving a valley that adds some variation to the otherwise modest terrain. This river valley creates some steeper slopes and more dramatic changes in elevation in certain areas near the town.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would be relatively flat, open areas with good sun exposure and minimal shading from trees or other obstacles. The agricultural lands to the east and southeast of Drayton Valley present promising opportunities for solar PV development. These areas tend to be flatter and more open, with fewer trees to obstruct sunlight. The gently rolling nature of the terrain in this direction could actually be beneficial, as slight south-facing slopes can improve the efficiency of solar panels. Areas to the north and northeast of the town, where there are more open fields and less forest cover, could also be suitable for solar installations. These locations would likely require less land clearing and offer good solar exposure throughout the day. It's important to note that while the topography around Drayton Valley is generally favorable for solar PV, the region's latitude means that solar insolation (the amount of solar radiation received) is lower than in more southerly locations. This factor would need to be carefully considered when planning any large-scale solar projects in the area. Additionally, proximity to existing electrical infrastructure, such as transmission lines and substations, would play a crucial role in determining the most suitable locations for solar PV installations. Areas closer to these facilities would likely be more economically viable for large-scale projects.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
