Duncan, British Columbia, Canada, located at 48.7835° N, 123.7014° W, presents a mixed picture for year-round solar energy generation via photovoltaic (PV) systems. This location in the Northern Temperate Zone experiences significant seasonal variations in solar energy production, which impact the overall efficiency of solar installations.

Seasonal Solar Performance

Solar energy production in Duncan varies dramatically throughout the year. Summer stands out as the most productive season, with an impressive average daily output of 7.11 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.24 kWh/day. However, autumn and winter see a substantial drop in production, with 2.36 kWh/day and 1.29 kWh/day respectively.

The stark contrast between summer and winter production highlights the challenges of relying solely on solar power in this location year-round. While summer months offer excellent solar potential, the winter months may require supplementary energy sources to meet demand.

Optimal Panel Placement

To maximize year-round solar energy production in Duncan, British Columbia, fixed solar panels should be installed at a tilt angle of 40 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, taking into account the location's latitude and seasonal sun paths.

Environmental and Weather Considerations

Several factors can impact solar production in Duncan: 1. Cloud cover: The region experiences significant cloud cover, especially during autumn and winter months, which can reduce solar efficiency. 2. Rainfall: Duncan receives considerable rainfall, which can temporarily decrease panel output. 3. Snow: Winter snowfall can cover panels, reducing their effectiveness until cleared.

To mitigate these challenges, consider the following preventative measures: 1. Use self-cleaning panels or implement regular cleaning schedules. 2. Install panels at a steeper angle to promote snow sliding off. 3. Incorporate micro-inverters or power optimizers to minimize the impact of partial shading. 4. Consider a ground-mounted system for easier access and maintenance.

While Duncan's location presents some challenges for year-round solar energy production, proper system design and maintenance can help maximize the benefits of solar PV installations in this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

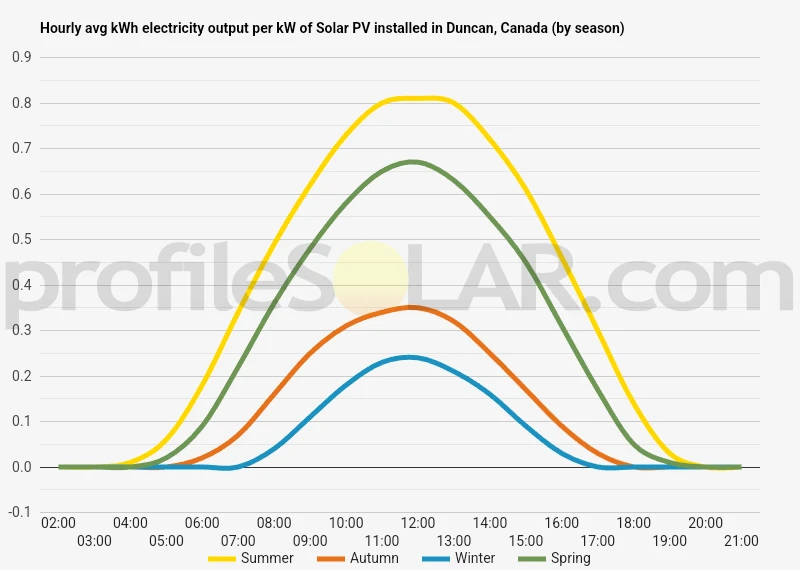

Solar output per kW of installed solar PV by season in Duncan

Seasonal solar PV output for Latitude: 48.7835, Longitude: -123.7014 (Duncan, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Duncan, Canada

To maximize your solar PV system's energy output in Duncan, Canada (Lat/Long 48.7835, -123.7014) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Duncan, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Duncan, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	51° South in Autumn	63° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Duncan, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Duncan, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Duncan, Canada

The area surrounding Duncan, Canada, located on Vancouver Island in British Columbia, is characterized by a diverse and picturesque topography. Situated in the Cowichan Valley, Duncan is nestled between rolling hills and mountains, with the Cowichan River winding through the landscape. The terrain is a mix of gentle slopes, forested areas, and fertile agricultural lands. To the west of Duncan, the topography becomes more rugged as it transitions into the Vancouver Island Ranges. These mountains, part of the larger Insular Mountains system, create a backdrop of steep, forested slopes and rocky peaks. The eastern side of Duncan gradually descends towards the coastline of the Strait of Georgia, featuring a combination of lowlands and undulating terrain.

Potential Areas for Large-Scale Solar PV

When considering areas near Duncan for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain, and minimal shading from surrounding features. While the region's topography presents some challenges, there are potential areas that could be suitable for solar PV development. The agricultural lands to the south and southeast of Duncan offer promising possibilities. These areas tend to be flatter and more open, providing better solar exposure throughout the day. The Cowichan Valley floor, particularly in areas not prone to flooding, could also be considered for solar installations. Some of the gentler slopes on the eastern side of Duncan, facing towards the Strait of Georgia, might be suitable for solar PV projects. These areas could potentially benefit from good sun exposure, especially if oriented towards the south. It's important to note that while these areas may have favorable topography for solar PV, other factors such as land use regulations, environmental considerations, and grid connectivity would need to be carefully evaluated. Additionally, the region's climate, characterized by mild but often cloudy conditions, may impact the overall efficiency of solar installations compared to sunnier locations.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
