Dunnville, Ontario, Canada offers moderate solar energy generation potential throughout the year, though like most locations in the Northern Temperate Zone, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

Summer represents the peak solar generation period at this location, producing 6.41 kWh per day for each kilowatt of installed solar capacity. This strong summer performance makes it an excellent time for maximizing energy production and potentially feeding excess power back to the grid. Spring follows as the second-best season with 5.34 kWh per day per kW, offering substantial solar generation as daylight hours increase and weather conditions improve. Autumn drops to 3.16 kWh per day per kW, still providing reasonable energy output during the transitional season. Winter presents the most challenging period for solar generation, producing only 1.76 kWh per day per kW of installed capacity. This dramatic seasonal difference means homeowners and businesses should plan for significantly reduced solar output during the coldest months.

Optimal Panel Installation

For maximum year-round energy production at Dunnville, Ontario, solar panels should be installed at a fixed angle of 36 degrees tilted toward the south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the seasons and the Earth's elliptical orbit.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Dunnville area can significantly impact solar energy generation:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until cleared
• Ice formation: Freezing rain and ice storms can coat panels and reduce efficiency
• Lake-effect weather: Being relatively close to the Great Lakes region, increased cloud cover and precipitation can reduce solar irradiance
• Seasonal storms: Spring and summer thunderstorms can temporarily reduce solar output and potentially damage equipment

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Steeper panel angles: Installing panels at angles steeper than the optimal 36 degrees can help snow slide off more easily
• Quality mounting systems: Robust mounting hardware designed for Canadian weather conditions prevents damage from wind and ice loads
• Easy access design: Planning installation locations that allow safe snow removal when necessary
• Bypass diodes and optimizers: These technologies help maintain power production even when parts of panels are shaded or covered
• Regular maintenance scheduling: Planning for seasonal cleaning and inspection helps identify and resolve issues quickly

Overall, while Dunnville experiences the typical challenges of northern climate solar installation, proper planning and equipment selection can help ensure reliable energy production throughout the year, with particularly strong performance during the warmer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

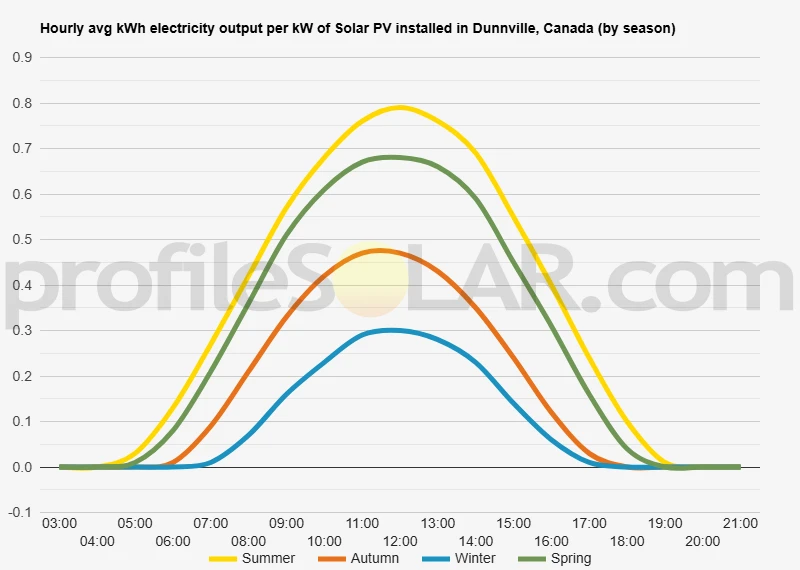

Solar output per kW of installed solar PV by season in Dunnville

Seasonal solar PV output for Latitude: 42.8987, Longitude: -79.6167 (Dunnville, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Dunnville, Canada

To maximize your solar PV system's energy output in Dunnville, Canada (Lat/Long 42.8987, -79.6167) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dunnville, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dunnville, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dunnville, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dunnville, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dunnville, Canada

Topography Around Dunnville

Dunnville sits in the heart of southern Ontario's Niagara Peninsula, positioned along the banks of the Grand River near its mouth at Lake Erie. The surrounding landscape is characterized by remarkably flat to gently rolling terrain, typical of the Great Lakes lowlands region. This area forms part of the broader Erie Plain, where elevations rarely exceed 200 meters above sea level and gradual slopes dominate the countryside.

The Grand River has carved a shallow valley through this relatively level terrain, creating subtle variations in elevation as it meanders toward Lake Erie. The immediate vicinity of Dunnville features fertile agricultural lands that stretch for kilometers in all directions, with field patterns interrupted only by occasional woodlots, farm buildings, and rural roads. The soil composition consists primarily of clay and sandy loam deposits left behind by ancient glacial activity and ongoing alluvial processes from the Grand River system.

Moving outward from Dunnville, the topography remains consistently gentle, with the land gradually sloping toward Lake Erie to the south and rising almost imperceptibly toward the Niagara Escarpment to the north. Small creeks and drainage channels create minor undulations in the landscape, but these features are typically shallow and present minimal obstacles to development. The area experiences good natural drainage due to its position within the Grand River watershed and proximity to Lake Erie.

Optimal Areas for Large-Scale Solar Development

The expansive agricultural fields surrounding Dunnville present excellent opportunities for large-scale solar photovoltaic installations. The predominantly flat terrain eliminates concerns about shading from topographic features and allows for efficient panel arrangement with consistent south-facing orientations. Areas extending northeast and northwest of the town center offer particularly suitable conditions, where large contiguous parcels of relatively level farmland could accommodate substantial solar arrays.

The gently sloping fields to the southwest, between Dunnville and the Lake Erie shoreline, represent another prime location for solar development. This zone benefits from minimal topographic interference and excellent accessibility via existing rural road networks. The slight southward slope in many of these areas could actually enhance solar panel performance by providing optimal tilt angles without requiring extensive grading or earthwork.

Industrial and commercial zones along the edges of Dunnville itself offer additional opportunities for solar installations, particularly on larger properties with adequate setbacks from residential areas. The flat industrial lands near the Grand River, while smaller in scale than the surrounding agricultural areas, could support rooftop installations or ground-mounted systems that complement existing commercial activities.

The consistent topography throughout the region means that site selection can focus primarily on factors such as land availability, proximity to electrical infrastructure, and local zoning considerations rather than terrain limitations. The absence of significant hills, valleys, or other challenging landforms makes virtually any open area within a reasonable distance of Dunnville technically suitable for solar development from a topographic perspective.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
