Elora, Ontario, Canada presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Energy Production

The solar energy output at this location shows dramatic differences throughout the year. Summer delivers the highest production at 6.26 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.30 kWh per day per kW, offering excellent energy production as daylight hours increase and temperatures remain moderate. Autumn sees a notable decline to 2.97 kWh per day per kW as the sun's angle decreases and weather patterns shift. Winter presents the most challenging conditions with only 1.81 kWh per day per kW, representing less than one-third of summer production levels.

Optimal Panel Configuration

For fixed panel installations at Elora, Ontario, the ideal tilt angle is 37 degrees facing south to maximize total year-round solar energy production. This angle balances the sun's varying seasonal positions throughout the year to capture the most energy over all twelve months.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production at this location:

• Snow accumulation during winter months can completely block solar panels
• Ice formation creates both shading and potential structural stress on panels
• Frequent cloud cover throughout autumn and winter reduces available sunlight
• Temperature fluctuations can cause thermal cycling stress on equipment

Preventative Measures for Better Performance

Installing solar systems with appropriate safeguards can help maintain energy production despite these challenges:

• Install panels at steeper angles (closer to the recommended 37 degrees) to promote natural snow shedding
• Use mounting systems designed for snow loads typical of the region
• Consider anti-reflective coatings that reduce ice adhesion
• Ensure adequate spacing between panel rows to prevent shading from snow buildup
• Select equipment rated for the local temperature range and thermal cycling
• Plan for safe manual snow removal access where natural shedding may be insufficient

Despite winter challenges, Elora's strong spring and summer solar production makes it a viable location for solar energy, particularly when systems are properly designed for local conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

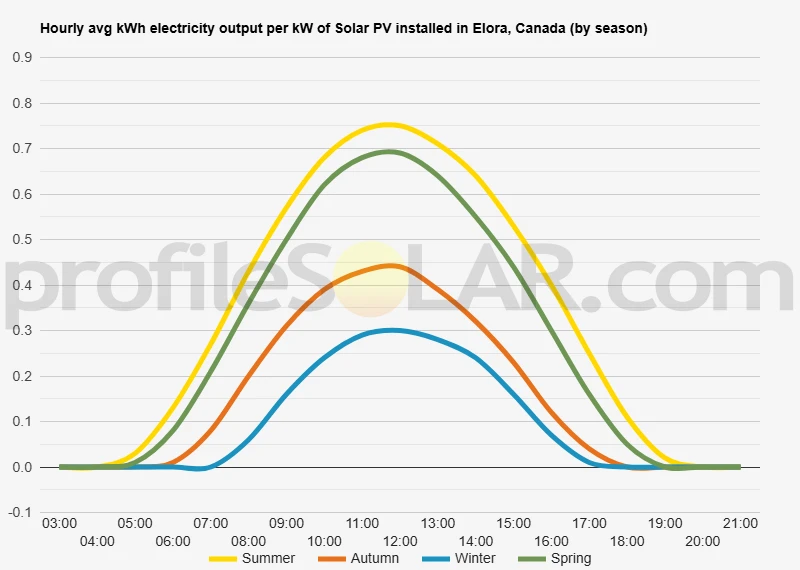

Solar output per kW of installed solar PV by season in Elora

Seasonal solar PV output for Latitude: 43.6815, Longitude: -80.4341 (Elora, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Elora, Canada

To maximize your solar PV system's energy output in Elora, Canada (Lat/Long 43.6815, -80.4341) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Elora, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Elora, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	47° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Elora, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Elora, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Elora, Canada

Topographical Features Around Elora

Elora sits in a distinctive landscape characterized by the dramatic limestone gorge carved by the Grand River through the Niagara Escarpment. The town itself perches on the edge of this spectacular gorge, with the Elora Gorge Conservation Area showcasing steep limestone cliffs that drop approximately 22 meters to the rushing waters below. This rugged terrain creates a unique topographical signature in what is otherwise a relatively gentle rolling landscape typical of southwestern Ontario.

The broader region around Elora features undulating farmland with moderate elevation changes, interspersed with woodlots and creek valleys. The terrain generally slopes from higher elevations in the north and east toward lower areas in the south and west, following the natural drainage patterns toward the Grand River. Agricultural fields dominate the landscape, creating large open spaces broken by farm buildings, hedgerows, and patches of forest.

The Niagara Escarpment, a UNESCO World Biosphere Reserve, runs through the area and influences local topography with its characteristic steep faces on the escarpment front and more gradual slopes on the back slope. This geological feature creates varied microclimates and terrain conditions within relatively short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Elora would be the gently rolling agricultural lands to the south and southwest of the town. These areas offer several key advantages including relatively flat to gently sloping terrain that minimizes grading requirements and construction costs while maximizing panel efficiency through optimal positioning.

The agricultural fields in Wellington County, particularly those extending toward Fergus and Guelph, present ideal conditions with their open exposure, minimal shading from trees or structures, and existing agricultural zoning that may facilitate solar development approvals. These areas benefit from good road access for construction and maintenance while being sufficiently removed from the more sensitive environmental areas along the escarpment.

Areas to avoid would include the immediate vicinity of the Elora Gorge and other environmentally sensitive portions of the Niagara Escarpment, where steep terrain, rocky outcrops, and conservation restrictions would make development challenging or inappropriate. The heavily forested sections and areas with significant elevation changes would also be less suitable due to increased development costs and potential shading issues.

The flat to gently undulating farmland extending eastward toward Kitchener-Waterloo also presents good opportunities, particularly where large agricultural parcels could accommodate substantial solar arrays without significant terrain modification. These locations benefit from proximity to existing electrical infrastructure while maintaining the rural character that makes them suitable for renewable energy development.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
