Solar Energy Potential in Garibaldi Highlands, British Columbia, Canada

Garibaldi Highlands in Canada, positioned at latitude 49.7341° North and longitude -123.1323° West in the Northern Temperate Zone, shows significant seasonal variation in solar energy production potential throughout the year. The solar electricity output at this location follows a predictable seasonal pattern. During summer months, solar panels can generate an impressive 6.62 kWh per day for each kilowatt of installed capacity. Spring also offers good production with 4.61 kWh per day per kW. However, production drops considerably during autumn (2.03 kWh/day) and reaches its lowest point in winter (1.17 kWh/day). For residents considering fixed solar panel installations in Garibaldi Highlands, British Columbia, the ideal tilt angle to maximize year-round energy production is 41 degrees facing South. This angle has been calculated to optimize solar collection across all seasons, accounting for the Earth's elliptical orbit and the specific latitude of this location.

Seasonal Considerations

The substantial difference between summer and winter production rates indicates that Garibaldi Highlands experiences pronounced seasonal variations in solar potential. The summer months (June through August) clearly represent the prime solar generation period, producing more than five times the electricity compared to winter months. Spring (March through May) offers the second-best production period, while autumn (September through November) provides moderate generation potential. Winter (December through February) presents the greatest challenge for solar energy production at this location.

Environmental Factors and Mitigation Strategies

Several environmental factors could potentially impact solar production in Garibaldi Highlands:

• Snow accumulation during winter months can significantly reduce production by covering panels. Installing panels at the recommended 41-degree tilt helps with natural snow shedding, while manual clearing may occasionally be necessary.
• The mountainous terrain of the region may create localized shading issues depending on specific property location. A thorough site assessment before installation can identify optimal placement to minimize shading impacts.
• Coastal cloud patterns from the nearby Pacific Ocean might reduce direct sunlight exposure, particularly during winter and autumn months. Using high-efficiency panels designed for diffuse light conditions can help mitigate this challenge.

To maximize production in this location, consider installing snow-shedding systems, implementing regular maintenance schedules, and potentially incorporating a dual-axis tracking system for properties with adequate space and budget. While Garibaldi Highlands isn't ideal for year-round solar production, the excellent summer and spring performance can still make solar installations economically viable, especially when paired with appropriate energy storage solutions to balance seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

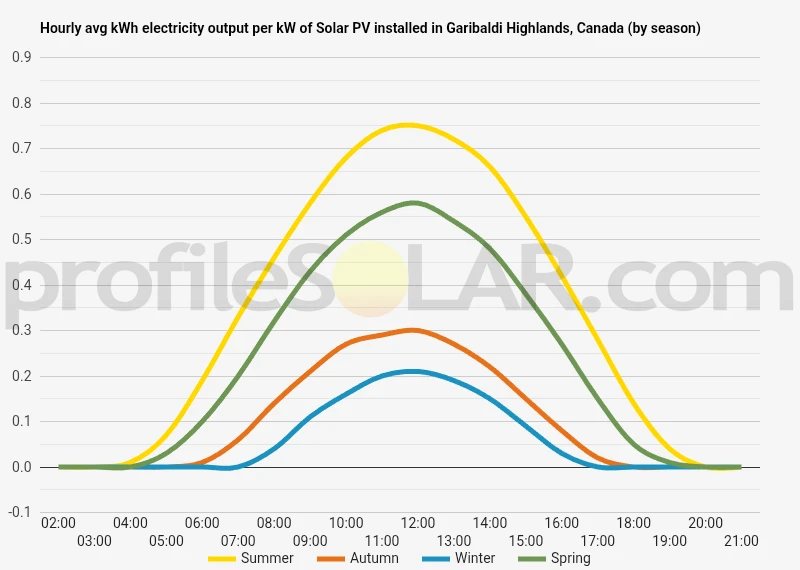

Solar output per kW of installed solar PV by season in Garibaldi Highlands

Seasonal solar PV output for Latitude: 49.7341, Longitude: -123.1323 (Garibaldi Highlands, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Garibaldi Highlands, Canada

To maximize your solar PV system's energy output in Garibaldi Highlands, Canada (Lat/Long 49.7341, -123.1323) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Garibaldi Highlands, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Garibaldi Highlands, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	52° South in Autumn	64° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Garibaldi Highlands, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Garibaldi Highlands, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Garibaldi Highlands, Canada

Garibaldi Highlands is situated in British Columbia, Canada, nestled within a dramatic topographical landscape characterized by significant elevation changes and diverse terrain features. The area sits on the eastern slopes of the Coast Mountains, with the community positioned at approximately 200-300 meters above sea level. The surrounding landscape rises dramatically to the west and north, where mountain peaks exceed 2,000 meters in elevation.

Mountain Features

The dominant topographical feature near Garibaldi Highlands is Mount Garibaldi itself, an impressive stratovolcano standing at 2,678 meters. This mountain is part of the Garibaldi Volcanic Belt within the Cascade Volcanic Arc. The terrain surrounding the highlands is marked by steep slopes, deep valleys, and numerous glacial features formed during the last ice age. To the immediate west lies the imposing Tantalus Range, with peaks exceeding 2,600 meters, creating a significant topographical barrier. The area features numerous other mountains including The Black Tusk, a distinctive volcanic plug with its characteristic dark appearance rising to 2,319 meters.

Water Features

The topography is further defined by significant water bodies. The Squamish River flows through the valley below Garibaldi Highlands, with its broad floodplain contrasting with the steep mountain slopes. Numerous smaller streams and creeks cascade down from the mountains, creating drainage patterns that have carved the landscape over millennia. Howe Sound lies to the south, a fjord stretching from the Strait of Georgia, with its deep waters surrounded by steep mountain slopes plunging directly into the sea. This coastal influence creates a transition zone between maritime and mountain environments.

Vegetation and Land Cover

The region's topography supports diverse vegetation zones, with dense temperate rainforests dominating the lower elevations. These forests gradually transition to subalpine forests and eventually alpine tundra at higher elevations. The tree line in this region typically occurs around 1,500-1,800 meters, above which the landscape becomes increasingly barren.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas would be found in the relatively flat portions of the Squamish Valley, particularly: The valley floor areas south of Garibaldi Highlands offer more level terrain with fewer obstructions. These areas have better solar exposure compared to the steep slopes that characterize much of the surrounding landscape. Some of the gentler south-facing slopes at lower elevations could be suitable, particularly those with minimal forest cover or in areas that have been previously cleared. The bench lands and terraces that occur at various elevations throughout the region provide potential sites with good solar exposure, particularly those oriented toward the south.

Topographical Challenges for Solar Development

The mountainous nature of the region presents significant challenges for large-scale solar development. The steep terrain creates issues with construction accessibility and increases installation costs. Additionally, the mountains themselves can cast extensive shadows, particularly during winter months when the sun angle is lower. The region experiences significant precipitation, which has shaped the topography through erosion and landslides. These geomorphological processes must be considered when evaluating site stability for solar installations. The dense forest cover that dominates much of the landscape would require clearing for solar installation, presenting both environmental and practical challenges. Despite these challenges, the areas with more favorable topography for solar PV are generally found in the valley bottoms and on south-facing benches with moderate slopes, where solar exposure is maximized and construction challenges are minimized.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
