Geraldton, Ontario, Canada, located in the Northern Temperate Zone, presents a mixed picture for year-round solar energy generation via photovoltaic (PV) systems. The location's seasonal variations in solar output highlight both opportunities and challenges for solar power production.

Seasonal Solar Performance

Solar energy production in Geraldton experiences significant fluctuations throughout the year. Summer stands out as the most productive season, with an impressive daily output of 5.90 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 4.81 kWh per day. However, autumn and winter see a substantial drop in production, with 2.37 kWh and 1.47 kWh per day, respectively.

Optimal Times for Solar Generation

The ideal period for solar energy production in Geraldton spans from late spring through early fall. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Summer, in particular, offers the greatest potential for solar energy harvesting, making it an excellent time for maximizing renewable energy output.

Panel Tilt Optimization

To maximize year-round solar production in Geraldton, Ontario, fixed solar panels should be installed at a tilt angle of 42 degrees facing south. This optimal angle takes into account the location's latitude and seasonal sun positions, ensuring the best possible energy capture throughout the year.

Environmental and Weather Considerations

Geraldton's location presents some challenges for solar energy production, particularly during the winter months. Significant factors that could impede solar output include:

• Heavy snowfall and ice accumulation on panels
• Reduced daylight hours in winter
• Potential for overcast days, especially in autumn and winter

To mitigate these issues, several preventative measures can be implemented during solar installation:

• Use of snow-shedding panel frames and coatings to minimize snow accumulation
• Installation of panels at a steeper angle to facilitate snow sliding off
• Regular maintenance and cleaning, especially after heavy snowfall
• Consideration of bifacial panels to capture reflected light from snow

While Geraldton's location poses some challenges for year-round solar energy production, proper system design and maintenance can help maximize output, particularly during the more favorable months. The significant seasonal variations underscore the importance of careful planning and potentially considering hybrid energy solutions to ensure consistent power supply throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 569 locations across Canada. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Canada by location

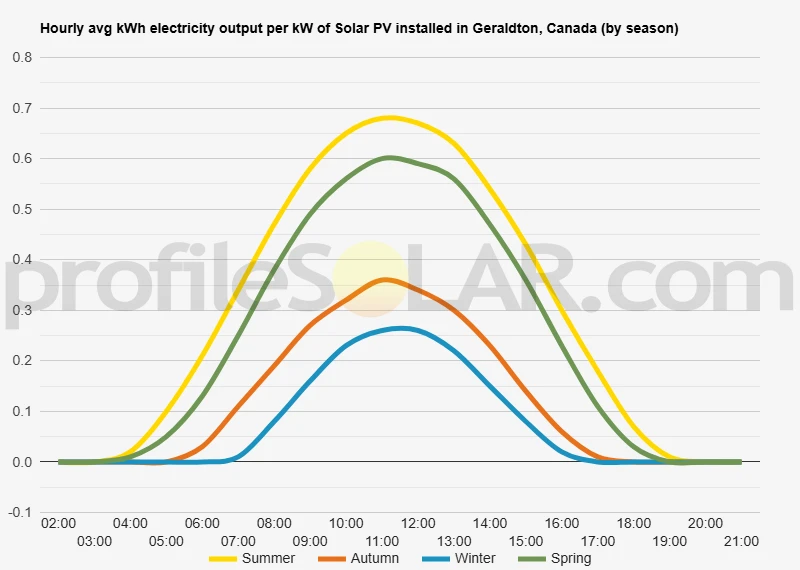

Solar output per kW of installed solar PV by season in Geraldton

Seasonal solar PV output for Latitude: 49.7249, Longitude: -86.9388 (Geraldton, Canada), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° South in Geraldton, Canada

To maximize your solar PV system's energy output in Geraldton, Canada (Lat/Long 49.7249, -86.9388) throughout the year, you should tilt your panels at an angle of 42° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Geraldton, Canada

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Geraldton, Canada. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
33° South in Summer	53° South in Autumn	63° South in Winter	42° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Geraldton, Canada

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Geraldton, Canada.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Geraldton, Canada

The topography around Geraldton, Canada, is characterized by a diverse landscape typical of the Canadian Shield region. This area features gently rolling hills, numerous lakes, and vast expanses of boreal forest. The terrain is primarily composed of ancient bedrock, shaped by glacial activity during the last ice age, resulting in a mix of exposed rock outcrops and areas covered with glacial till. The region surrounding Geraldton is dotted with numerous small lakes and wetlands, interspersed among the forested areas. These water bodies are remnants of glacial retreat and contribute to the area's unique ecosystem. The boreal forest that dominates the landscape consists mainly of coniferous trees such as black spruce, jack pine, and balsam fir, with some deciduous species like trembling aspen and white birch.

Elevation and Landforms

The elevation in the Geraldton area generally ranges from about 300 to 400 meters above sea level. While there are no significant mountain ranges nearby, the terrain does feature some modest hills and ridges. These elevations are typically gentle, with gradual slopes rather than steep inclines.

Potential for Large-Scale Solar PV

When considering areas suitable for large-scale solar PV installations near Geraldton, several factors come into play. The most suitable locations would likely be found in cleared areas or on gently sloping hillsides with southern exposure. These areas would ideally have minimal tree cover to maximize sunlight exposure throughout the day. Some of the best potential sites for solar PV installations might include: 1. Abandoned mining sites or other previously cleared industrial areas, which are relatively common in this region due to its history of resource extraction. 2. Open fields or meadows that are not currently used for agriculture or other purposes. 3. Gently sloping hillsides facing south, which would receive optimal sunlight throughout the day. 4. Areas near existing power infrastructure to facilitate grid connection. It's important to note that while the region does receive ample sunlight during the summer months, the northern latitude of Geraldton means that winter days are quite short. This factor, along with potential snow cover, would need to be carefully considered when planning any large-scale solar PV project in the area. Additionally, environmental impact assessments would be crucial to ensure that any solar installations do not negatively affect the local ecosystem, particularly the numerous lakes and wetlands that characterize the region's topography.

Canada solar PV Stats as a country

Canada ranks 23rd in the world for cumulative solar PV capacity, with 3,630 total MW's of solar PV installed. This means that 0.70% of Canada's total energy as a country comes from solar PV (that's 38th in the world). Each year Canada is generating 96 Watts from solar PV per capita (Canada ranks 40th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Canada?

There are several incentives for businesses to install solar power systems in Canada. These incentives vary by province and can include:

1. Federal Tax Incentives:

• Accelerated Capital Cost Allowance (CCA): Businesses can write off the full cost of clean energy equipment in the year it's put into use.

2. Provincial Programs:

• Ontario: Save on Energy program offers incentives for businesses to reduce energy consumption.
• Alberta: Energy Efficiency Alberta offers rebates for solar PV installations.
• British Columbia: BC Hydro offers a net metering program. BC Hydro also offers rebates for solar panels and battery storage.
• Nova Scotia: Solar Electricity for Community Buildings Program.

3. Net Metering:

Many provinces ofer net metering, allowing businesses to sell excess electricity back to the grid.

4. Grants and Loans:

Some provinces offer grants or low-interest loans for renewable energy projects.

5. Carbon Pricing:

The federal carbon pricing system can make solar more competitive compared to fossil fuels.

6. Municipal Incentives:

Some cities offer additional incentives or property tax reductions for solar installations.

7. Reduced Operating Costs:

While not a direct incentive, businesses can significantly reduce their long-term energy costs.

Note: Incentives and programs can change over time, so businesses should check with local authorities and energy providers for the most up-to-date information.

Do you have more up to date information than this on incentives towards solar PV projects in Canada? Please reach out to us and help us keep this information current. Thanks!
